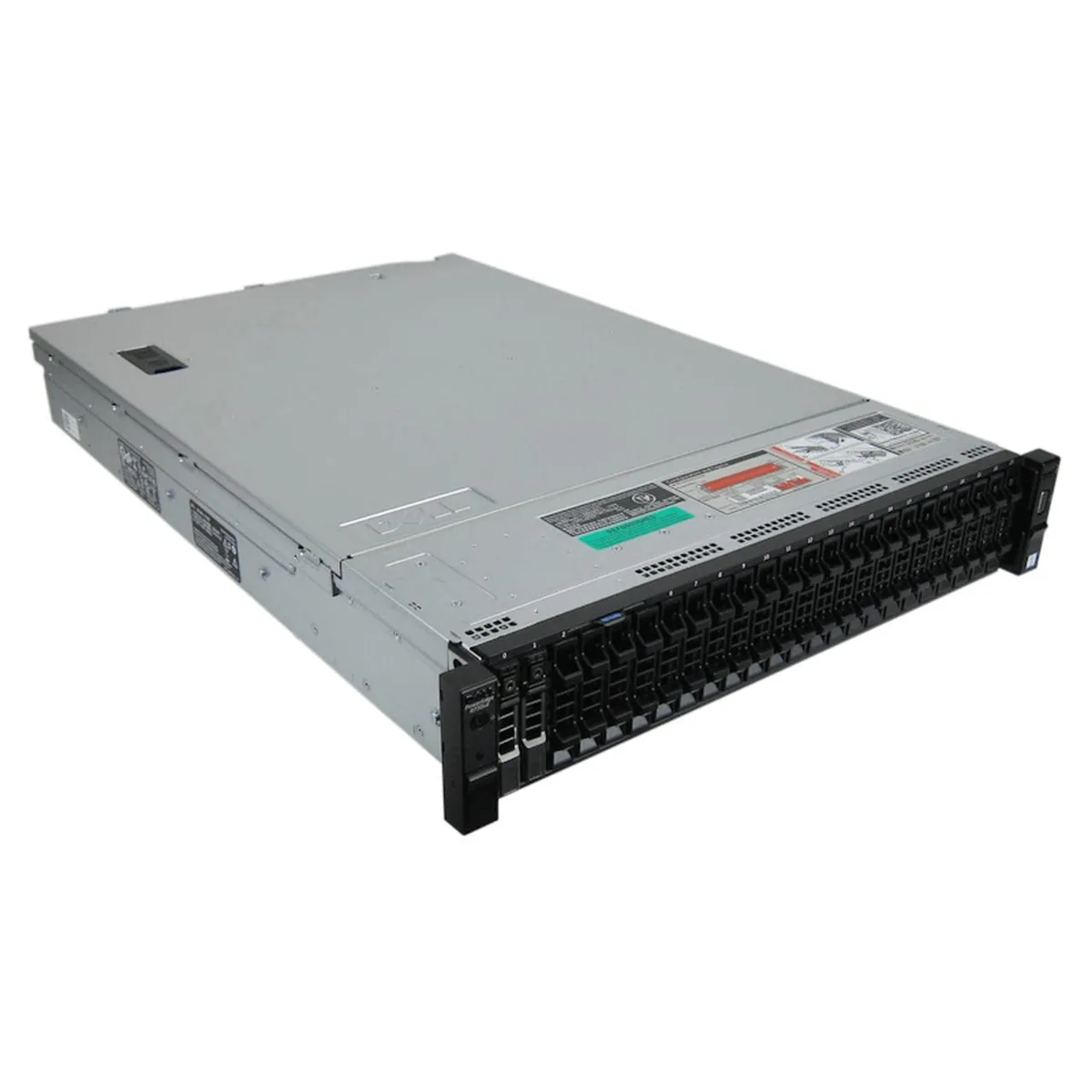

Dell PowerEdge R730xd 2U rack server front view with 24 drive bays and bezel

DELL

DELL PowerEdge R730xd rack server 2x Xeon E5-2680 v4 2.4GHz 14-core 768GB DDR4 24x 400GB SSD H730

SKU CH-GAYV-2MVWK

A 2U rack server with dual 14-core Xeon processors, 768GB DDR4 memory and 24 SATA SSDs for storage-heavy workloads

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 2011-3
  • Dual 14-core Xeon processors at 2.4 GHz with 3.3 GHz turbo for heavy compute
  • 768 GB DDR4 ECC memory across 24 slots supports large virtualisation workloads
  • 24 enterprise 400 GB SATA SSDs on PERC H730 RAID controller for fast storage
  • Quad-port networking with dual 1 GbE and dual 10 Gb SFP+ for flexible connectivity
  • iDRAC 8 Enterprise plus redundant 750 W platinum supplies ensure remote manageability and uptime

2U 24-bay server with dual 14-core Xeons

The Dell PowerEdge R730xd is a 2U rack server populated with two Intel Xeon E5-2680 v4 processors running at 2.4 GHz with a 3.3 GHz turbo. Fourteen cores per socket deliver 28 threads for parallel workloads. The chassis holds 24 front-accessible 2.5-inch drive bays and includes redundant hot-swap 750 W power supplies.

Suits dense storage and virtualisation.

This configuration fits organisations running databases, virtual desktop infrastructure, or data-warehouse nodes that benefit from local flash capacity. The board provides 24 DDR4 slots populated with 768 GB of registered ECC memory and a maximum of 1.5 TB. Buyers who need more than two processor sockets, GPU compute, or memory beyond 1.5 TB should evaluate other platforms.

PERC H730 controller with 24 SATA SSDs

The integrated Dell PERC H730 1 GB controller manages the 24 installed 400 GB SATA SSDs across RAID 0, 1, 5, 6, 10, 50, 60 and pass-through modes. Network connectivity uses an Intel X520/I350 daughter card providing two 1 GbE and two 10 Gb SFP+ ports. Remote management is handled by iDRAC 8 Enterprise.

Highlights

  • Dual 14-core Xeon processors at 2.4 GHz with 3.3 GHz turbo for heavy compute
  • 768 GB DDR4 ECC memory across 24 slots supports large virtualisation workloads
  • 24 enterprise 400 GB SATA SSDs on PERC H730 RAID controller for fast storage
  • Quad-port networking with dual 1 GbE and dual 10 Gb SFP+ for flexible connectivity
  • iDRAC 8 Enterprise plus redundant 750 W platinum supplies ensure remote manageability and uptime

Specifications

BrandDELL
SeriesPowerEdge R730XD
ModelR730xd
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 2011-3
Number of CPU Cores14-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size768GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)24 x 400GB SATA SSD
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Do I need to supply my own SFP+ modules for the 10GbE ports on the Intel X520/I350 card?

Yes, the quad-port daughter card provides two 10Gb SFP+ ports that require compatible SFP+ transceivers or direct-attach cables, which are not included with the server.

Will my existing SATA 6Gb/s SSDs work with the PERC H730 controller in this R730xd?

The PERC H730 supports both SAS and SATA drives, so any 2.5" SATA 6Gb/s SSD can be used in the 24 drive bays alongside the installed 400GB units.

How can I verify that both Xeon E5-2680 v4 processors and all 768GB of DDR4 memory are recognised after power-on?

During POST the system will display two 14-core CPUs at 2.40GHz and 768GB total memory; iDRAC8 Enterprise also reports the full inventory in its System Overview page.
