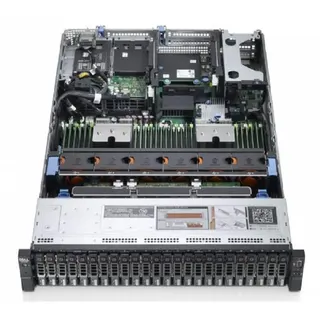

Silver 2U rack server with 24 front 2.5-inch drive bays

DELL

DELL PowerEdge R730XD rack server 2U 24×2.5" E5-2650v3 10C 2.3GHz 48GB H330

SKU CH-X8EQ-02P2Y

A 2U rack server with 24 hot-plug 2.5-inch drive bays, a ten-core Xeon at 2.3 GHz, 48 GB DDR4 and an H330 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 48GB

HDD None

  • 24 hot-plug 2.5" drive bays for dense storage capacity
  • Intel Xeon E5-2650v3 10-core 2.3GHz processor delivers 20 virtual cores
  • 48GB DDR4 memory across 24 DIMM slots for scalable performance
  • H330 12Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750W redundant power supplies ensure continuous uptime

Dense 2U rack server for storage-heavy workloads

The Dell PowerEdge R730XD fits twenty-four 2.5-inch hot-plug bays into a 2U chassis. A single Intel Xeon E5-2650 v3 ten-core processor at 2.3 GHz supplies twenty threads. Forty-eight gigabytes of DDR4 memory populate the system, and a Dell PERC H330 controller manages RAID 0, 1, 5, 10, 50 and 60 across the drive array.

Suits teams needing maximum drive density

This configuration targets databases, backup targets and software-defined storage clusters that benefit from twenty-four front-accessible bays. Buyers who require dual-processor compute density or installed solid-state drives should evaluate other platforms. The single-socket layout also limits total memory capacity to forty-eight gigabytes in this build.

Twenty-four 2.5-inch hot-plug bays define

With up to twenty-four drives supported, raw capacity scales to fifty-two terabytes using the largest compatible disks. The H330 controller provides twelve-gigabit-per-second SAS connectivity for each bay. This bay count is the decisive factor when matching the server to a storage footprint.

Highlights

  • 24 hot-plug 2.5" drive bays for dense storage capacity
  • Intel Xeon E5-2650v3 10-core 2.3GHz processor delivers 20 virtual cores
  • 48GB DDR4 memory across 24 DIMM slots for scalable performance
  • H330 12Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750W redundant power supplies ensure continuous uptime

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size48GB
Memory TypeDDR4
Max Memory Capacity48GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much processing power does the single E5-2650 v3 at 2.3 GHz deliver in this server?

The installed processor has 10 cores and supports 20 threads with Hyper-Threading, giving 20 virtual cores for multi-threaded workloads. A second CPU can be added later to double that capacity.

What drive speeds and RAID levels does the H330 controller support with the 24 bays?

The H330 is a 12 Gbps SAS/SATA RAID controller handling RAID 0, 1, 5, 10, 50 and 60 across up to 24 hot-plug 2.5-inch bays.

What are the exact dimensions and weight for rack planning?

The 2U chassis measures 26.8 inches deep, 17.44 inches wide and 3.4 inches high, weighing 60 lbs.
