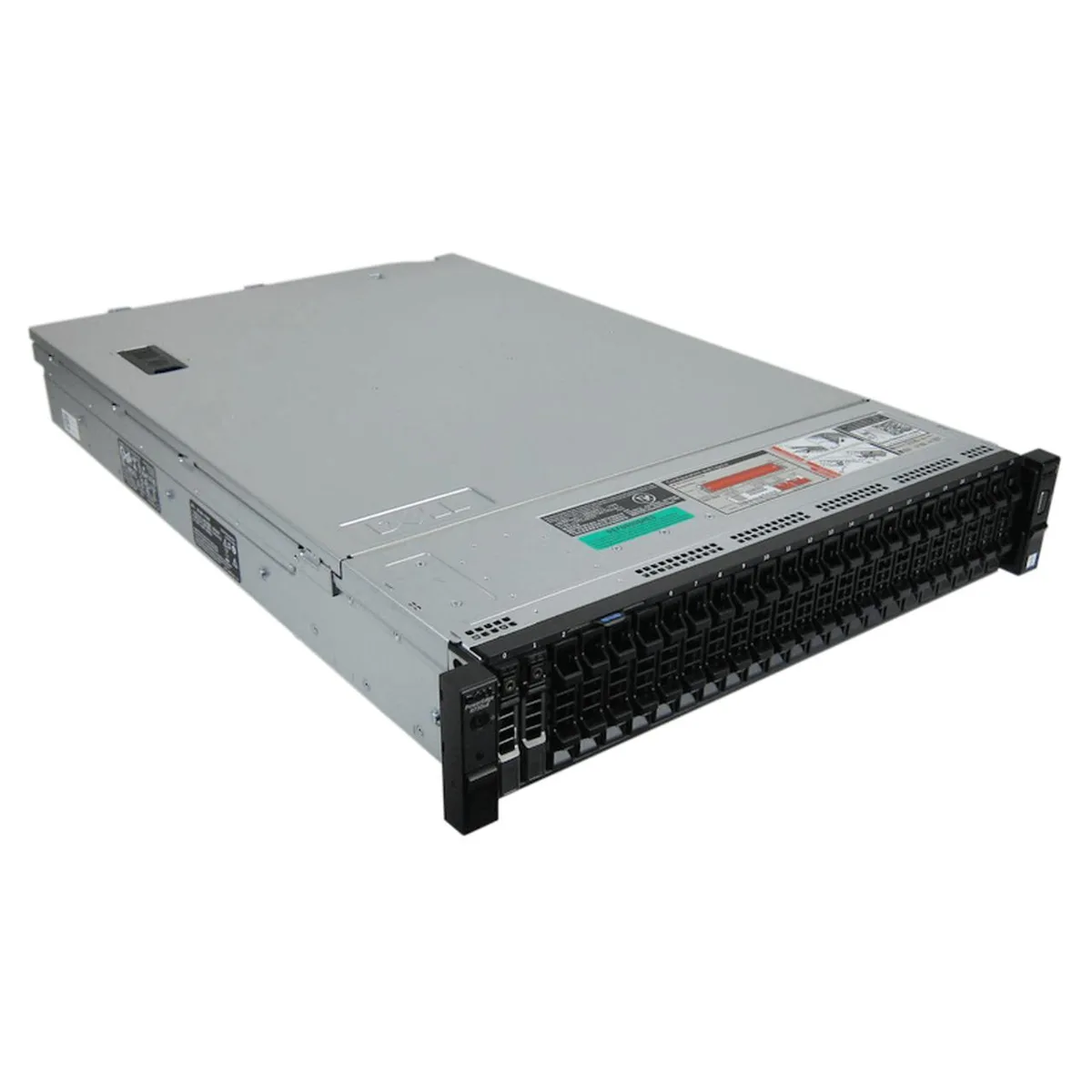

Silver 2U rack server with 24 front drive bays and bezel

DELL

DELL PowerEdge R730xd 2U Rack Server 2x Xeon E5-2699 v4 2.2GHz 22-Core 128GB DDR4 H730 24x 2.5" Trays

SKU CH-3DAB-VBC5T

A 2U rack server with dual 22-core Xeon processors at 2.2 GHz, 128 GB DDR4 ECC memory, a PERC H730 RAID controller and 24 hot-swap 2.5-inch drive bays

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.20 GHz
  • CPU SocketLGA 2011-3
  • Dual 22-core Xeon processors at 2.2 GHz with 3.6 GHz turbo for heavy compute
  • 128 GB DDR4 2400 MHz registered ECC memory across 8 modules
  • PERC H730 1 GB controller supports RAID 0, 1, 5, 6, 10, 50, 60
  • 24 front-accessible 2.5-inch SAS/SATA drive trays for dense storage
  • iDRAC 8 Enterprise plus quad-port 1 GbE and 10 Gb SFP+ networking included

Dense 2U storage server

The Dell PowerEdge R730xd is a 2U rack server built around two Intel Xeon E5-2699 v4 processors, each running at 2.2 GHz with 22 cores. It ships with 128 GB of DDR4 registered ECC memory across eight 16 GB modules and a PERC H730 controller with 1 GB cache supporting RAID 0, 1, 5, 6, 10, 50 and 60. Twenty-four 2.5-inch SAS/SATA drive bays, quad-port networking with two 1 GbE and two 10 Gb SFP+ ports, iDRAC8 Enterprise remote management and dual 750 W platinum power supplies complete the package for dense, high-throughput workloads.

Virtualisation and database hosts

This configuration suits organisations running virtualised environments, large databases or high-performance computing nodes that benefit from 44 total cores and up to 1.5 TB of memory headroom. The 24-bay chassis provides extensive local storage capacity for software-defined storage or backup targets. Buyers who need more than two processor sockets or a different drive form factor should evaluate alternative platforms.

PERC H730 RAID controller

The installed Dell PERC H730 1 GB mini controller handles 12 Gb/s SAS and SATA traffic with battery-backed cache, enabling the full range of RAID levels including pass-through mode. It is the single component that determines which drive types and redundancy schemes are available, so confirming its feature set against your storage plan is essential before deployment.

Highlights

  • Dual 22-core Xeon processors at 2.2 GHz with 3.6 GHz turbo for heavy compute
  • 128 GB DDR4 2400 MHz registered ECC memory across 8 modules
  • PERC H730 1 GB controller supports RAID 0, 1, 5, 6, 10, 50, 60
  • 24 front-accessible 2.5-inch SAS/SATA drive trays for dense storage
  • iDRAC 8 Enterprise plus quad-port 1 GbE and 10 Gb SFP+ networking included

Specifications

BrandDELL
SeriesPowerEdge R730XD
ModelR730xd
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.20 GHz
CPU SocketLGA 2011-3
Number of CPU Cores22-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What maintenance or replacement will the H730 controller battery need later?

The PERC H730 controller includes a battery that backs its 1 GB cache; it will need replacement when the battery health degrades, typically after several years of continuous operation.

Which limit shows up first under sustained use — the 22-core CPUs at 2.2 GHz or the 128 GB DDR4 memory?

With 24 DIMM slots and a 1.5 TB maximum, the installed 128 GB is well below the ceiling, so CPU throughput or thermal headroom will usually be reached before memory capacity.

How much heat and power do the two 750 W platinum PSUs draw when the server runs all day?

Dual 750 W platinum supplies deliver redundant hot-swap power; actual draw depends on workload, but the platinum rating means high efficiency even at continuous load.
