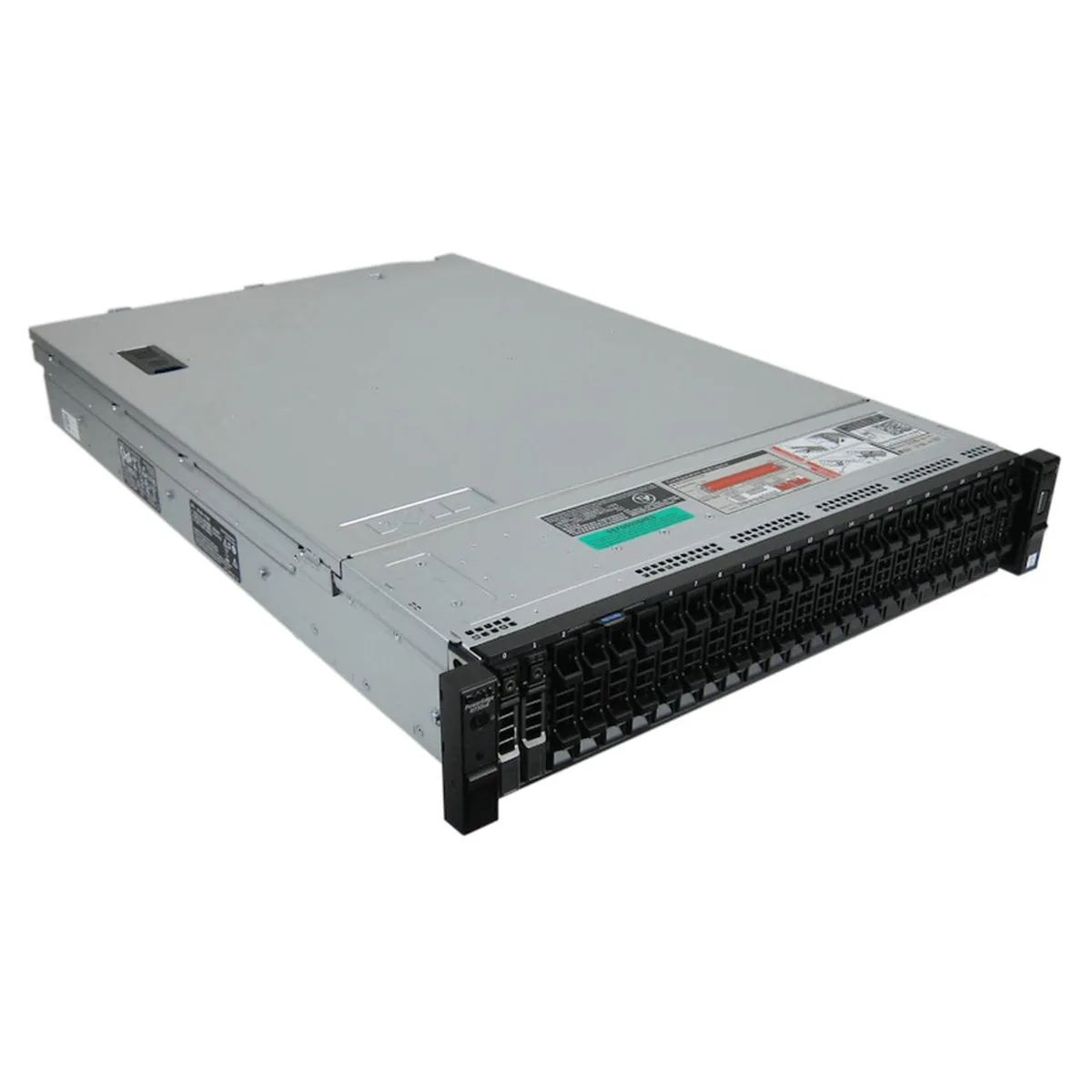

Silver 2U rack server with front bezel and drive bays

DELL

DELL PowerEdge R730xd 2U rack server 2x Xeon E5-2699 v4 2.2GHz 22-core 64GB DDR4 H730 2x 800GB SSD

SKU CH-QFWY-AY14J

2U rack server with dual 22-core Xeon processors at 2.2 GHz, 64 GB DDR4 ECC memory, PERC H730 RAID controller and two 800 GB SATA SSDs in a 24-bay chassis

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.20 GHz
  • CPU SocketLGA 2011-3
  • Dual 22-core Xeons at 2.2 GHz deliver 44 threads for heavy workloads
  • 64 GB DDR4 2400 MHz ECC memory supports large virtualised environments
  • PERC H730 1 GB controller enables RAID 0/1/5/6/10/50/60 flexibility
  • Two 800 GB SATA SSDs provide fast boot and application storage
  • Quad-port X520/I350 card adds 2× 1 GbE and 2× 10 Gb SFP+ connectivity

Dual 22-core Xeon server for dense storage workloads

The PowerEdge R730xd packs two Intel Xeon E5-2699 v4 processors at 2.2 GHz with 3.6 GHz turbo, giving 44 total cores for virtualisation, databases or HPC data nodes. Sixty-four gigabytes of DDR4 2400 MHz registered ECC memory across four modules leaves twenty free slots for expansion up to 1.5 TB. A PERC H730 controller with 1 GB cache handles RAID 0, 1, 5, 6, 10, 50 and 60.

Twenty-four hot-swap bays with quad-port networking

The 2U chassis provides twenty-four 2.5-inch SATA drive bays; two 800 GB enterprise SSDs are installed. An Intel X520/I350 daughter card adds two 1 GbE and two 10 Gb SFP+ ports for flexible uplinks. iDRAC 8 Enterprise gives full out-of-band management. Ready rails and a front bezel are included for standard rack mounting.

Redundant 750 W platinum supplies for continuous

Dual hot-swap 750 watt platinum-efficiency power supplies deliver N+1 redundancy under load. The Intel C610 chipset and LGA 2011-3 sockets keep platform power draw predictable. System fans scale with CPU and drive temperatures to maintain thermal headroom in a 2U form factor.

Highlights

  • Dual 22-core Xeons at 2.2 GHz deliver 44 threads for heavy workloads
  • 64 GB DDR4 2400 MHz ECC memory supports large virtualised environments
  • PERC H730 1 GB controller enables RAID 0/1/5/6/10/50/60 flexibility
  • Two 800 GB SATA SSDs provide fast boot and application storage
  • Quad-port X520/I350 card adds 2× 1 GbE and 2× 10 Gb SFP+ connectivity

Specifications

BrandDELL
SeriesPowerEdge R730XD
ModelR730xd
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.20 GHz
CPU SocketLGA 2011-3
Number of CPU Cores22-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)2 x 800GB SATA SSD
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What storage controller interface does the PERC H730 use and what speed does it cap at?

The Dell PERC H730 controller provides a 12Gb/s SAS/SATA interface with 1GB cache and battery backup supporting RAID 0/1/5/6/10/50/60 and pass-through modes.

What physical mounting hardware is included for rack installation?

The system includes ready rails and a front bezel for 2U rack mounting in a standard cabinet.

How is the network daughter card installed and what step is commonly missed?

The Intel X520/I350 quad-port card with 2x 1GbE and 2x 10Gb SFP+ installs in a dedicated daughter card slot; the step often missed is connecting the SFP+ modules or cables before seating the card fully.
