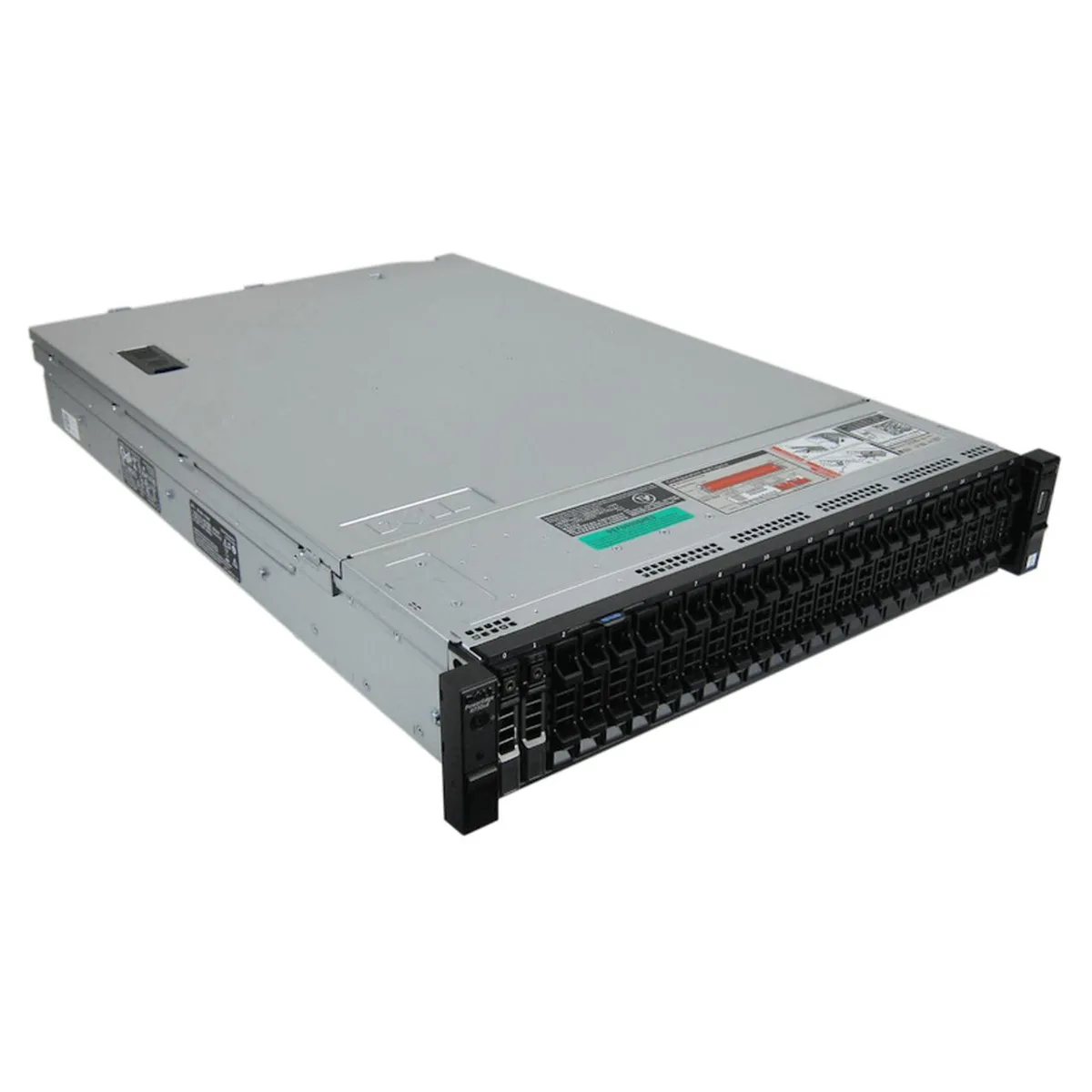

Dell PowerEdge R730xd 2U rack server front view with 24 drive bays and bezel

DELL

DELL PowerEdge R730xd 2U Rack Server 2x Xeon E5-2699 v4 2.2GHz 22 Core 64GB DDR4 24x 600GB SAS H730

SKU CH-A7FP-GDH35

2U rack server with dual 22-core Xeon processors at 2.2 GHz, 64 GB DDR4, 24-bay SAS storage and 10 GbE networking

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.20 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 64GB

HDD 24 x 600GB 10K SAS

  • Dual 22-core Xeon processors deliver 44 total cores for heavy parallel workloads
  • 64 GB DDR4 ECC memory supports large virtualised environments with room to expand to 1.5 TB
  • 24-bay 2.5" chassis populated with 600 GB 10 K SAS drives for high-density storage
  • PERC H730 1 GB controller provides hardware RAID 0/1/5/6/10/50/60 with battery-backed cache
  • Quad-port X520/I350 card adds two 1 GbE and two 10 Gb SFP+ links for flexible networking

Dense 2U rack server with 24 SAS bays

The Dell PowerEdge R730xd is a 2U rack-mount server equipped with dual Intel Xeon E5-2699 v4 processors, each running at 2.2 GHz with 22 cores. It ships with 64 GB of DDR4 registered ECC memory across 24 slots and a PERC H730 1 GB RAID controller managing 24 enterprise 600 GB 10 K SAS drives. Dual 750 W platinum power supplies and iDRAC8 Enterprise remote management complete the package.

Suited for SAS-heavy workloads in a 2U footprint

This server fits teams that run SAS or SATA drives behind a hardware RAID controller and need 24 hot-swap bays in a compact rack height. Buyers who require more than 1.5 TB of memory capacity or a different drive interface should evaluate other configurations.

Dual 22-core Xeon E5-2699 v4 at 2.2 GHz

The pair of 22-core Xeon E5-2699 v4 CPUs delivers 44 total cores with a 3.6 GHz turbo frequency, providing the compute density that determines whether this node meets the performance target for virtualization, databases or high-performance computing tasks.

Highlights

  • Dual 22-core Xeon processors deliver 44 total cores for heavy parallel workloads
  • 64 GB DDR4 ECC memory supports large virtualised environments with room to expand to 1.5 TB
  • 24-bay 2.5" chassis populated with 600 GB 10 K SAS drives for high-density storage
  • PERC H730 1 GB controller provides hardware RAID 0/1/5/6/10/50/60 with battery-backed cache
  • Quad-port X520/I350 card adds two 1 GbE and two 10 Gb SFP+ links for flexible networking

Specifications

BrandDELL
SeriesPowerEdge R730XD
ModelR730xd
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.20 GHz
CPU SocketLGA 2011-3
Number of CPU Cores22-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What rack mounting hardware is included so the 2U server can be installed in my cabinet?

Ready Rails and a front bezel are supplied with the server for rack installation.

The PERC H730 controller supports 12 Gb/s SAS — will my existing 6 Gb/s SAS drives work without changes?

The H730 handles both 12 Gb/s and 6 Gb/s SAS and SATA drives, so older drives can be used directly.

How do I confirm the two Xeon E5-2699 v4 processors and 64 GB of DDR4 memory are recognised after power-on?

The iDRAC 8 Enterprise remote-management interface shows CPU and memory inventory during POST and in the system dashboard.
