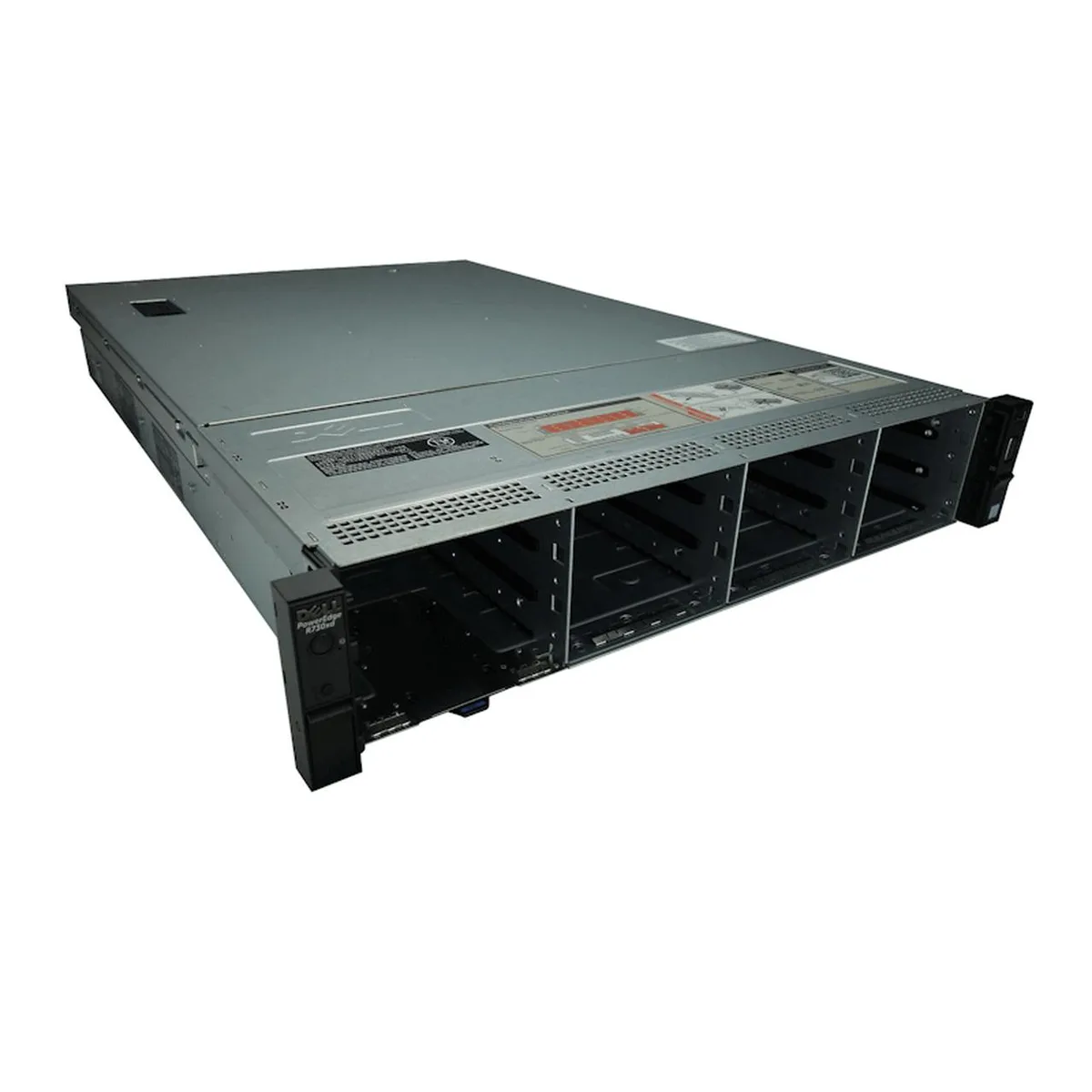

Silver 2U rack server front with twelve 3.5 inch drive bays and bezel

DELL

DELL PowerEdge R730xd 2U Rack Server 2x Xeon E5-2680 v4 2.4GHz 14 Core 64GB DDR4 12x 8TB H730

SKU CH-CYZ7-8ZMKH

A 2U rack server with dual 14-core Xeon processors at 2.4 GHz, 64 GB DDR4, a PERC H730 controller and twelve 8 TB SATA drives

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 2011-3
  • Dual Xeon 14-core CPUs at 2.4 GHz base with 3.3 GHz turbo for heavy compute
  • 64 GB DDR4 2400 MHz ECC memory across 4 modules supports large workloads
  • PERC H730 1 GB controller enables RAID 0/1/5/6/10/50/60 and pass-through
  • Twelve 8 TB 7.2K SATA drives provide high-capacity 3.5-inch storage
  • X520/I350 quad-port card adds 2x 1 GbE and 2x 10 Gb SFP+ networking

Dual 14-Core Xeon Server

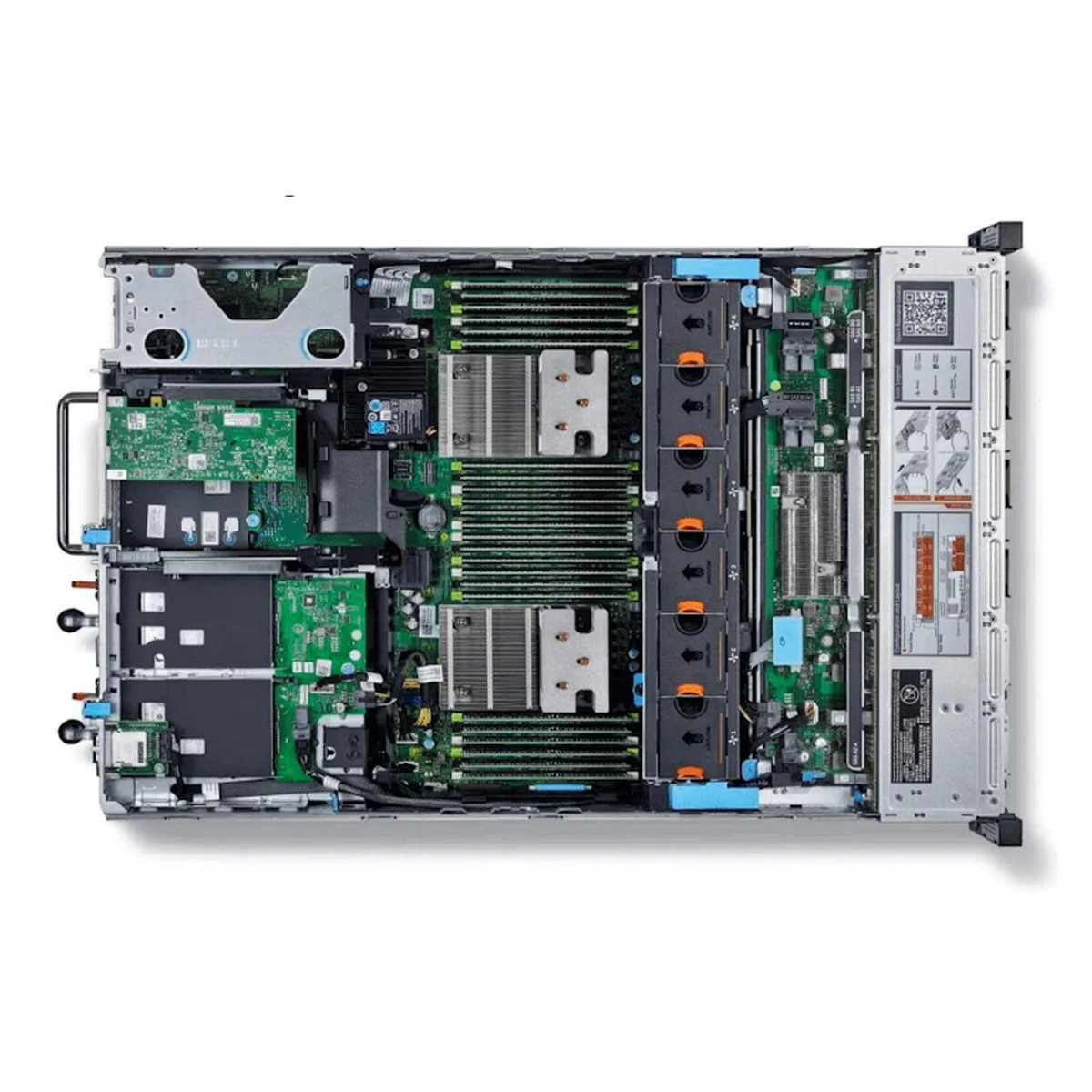

The Dell PowerEdge R730xd is a 2U rack server built for data-intensive workloads such as databases, virtual desktop infrastructure and high-performance computing nodes. Dual Intel Xeon E5-2680 v4 processors run at 2.4 GHz with a 3.3 GHz turbo frequency, providing 28 cores in total. Sixty-four gigabytes of DDR4 registered ECC memory is installed across four 16 GB modules.

Hot-Swap Drive and Rail Installation

Twelve 3.5-inch drive bays support hot-swap SATA drives; the twelve 8 TB enterprise disks are already fitted and managed by a PERC H730 controller with 1 GB cache. The controller handles RAID levels 0, 1, 5, 6, 10, 50 and 60 plus pass-through mode. Ready Rails and a front bezel are included for standard rack mounting; verify rail depth against your cabinet before fitting.

Memory, Power and Network Compatibility

The system has 24 DDR4 slots and a maximum memory capacity of 1.5 TB, so additional registered ECC modules can be added later. Two 750 W platinum hot-swap power supplies provide redundancy; confirm your rack PDU connectors match the supply inputs. A quad-port network daughter card supplies two 1 GbE and two 10 Gb SFP+ links; ensure your switch has compatible SFP+ transceivers.

Highlights

  • Dual Xeon 14-core CPUs at 2.4 GHz base with 3.3 GHz turbo for heavy compute
  • 64 GB DDR4 2400 MHz ECC memory across 4 modules supports large workloads
  • PERC H730 1 GB controller enables RAID 0/1/5/6/10/50/60 and pass-through
  • Twelve 8 TB 7.2K SATA drives provide high-capacity 3.5-inch storage
  • X520/I350 quad-port card adds 2x 1 GbE and 2x 10 Gb SFP+ networking

Specifications

BrandDELL
SeriesPowerEdge R730XD
ModelR730xd
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 2011-3
Number of CPU Cores14-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I verify the PERC H730 controller is managing all 12 drive bays correctly after setup?

Open the PERC H730 BIOS utility during boot and confirm all 12 bays show as online with the desired RAID level; iDRAC 8 Enterprise also displays drive health and controller status remotely.

Which components ship inside the chassis and what must I source separately?

The unit includes two Xeon E5-2680 v4 processors, 64 GB DDR4 in four 16 GB modules, the H730 1 GB controller, twelve 8 TB 3.5" SATA drives, X520/I350 quad-port NIC, two 750 W PSUs, bezel and rails; add OS licences, SFP+ transceivers and any extra memory up to 24 slots.

Which memory configuration should I choose if I need room to reach the 1.5 TB maximum later?

The current 64 GB uses only four of the 24 DDR4 slots; populate remaining slots with registered ECC DDR4 2400 MHz modules in matched sets to scale toward the 1.5 TB limit.
