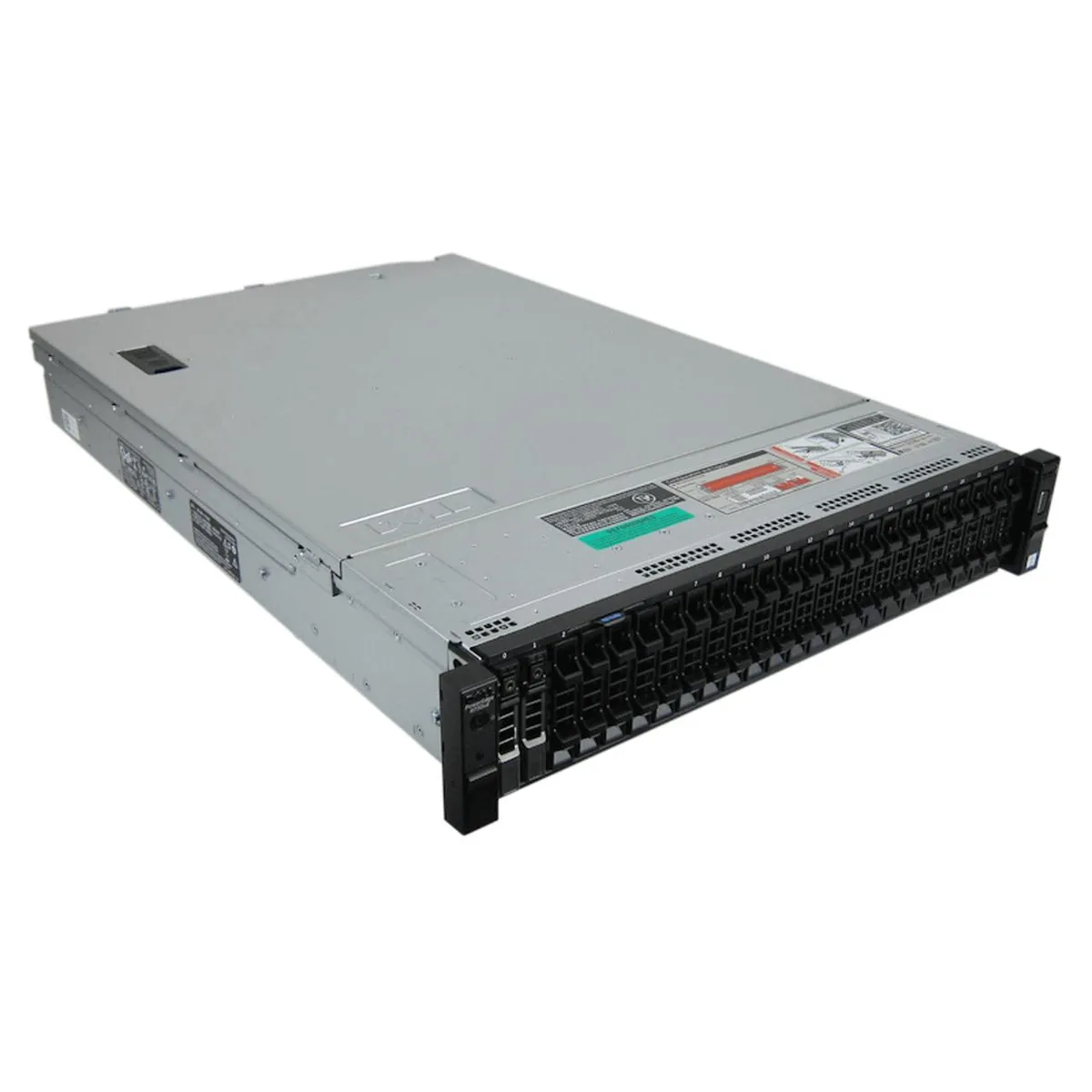

Silver 2U rack server with bezel, 24 front drive trays and dual hot-swap power supplies

DELL

DELL PowerEdge R730xd 2U rack server 2x Xeon E5-2680 v3 2.5GHz 12-core 128GB DDR4 24-bay H730

SKU CH-N3KH-RXVGF

A 2U rack server with dual 12-core Xeon processors at 2.5 GHz, 128 GB DDR4 ECC memory, a PERC H730 RAID controller, 24 hot-swap 2.5-inch drive bays, quad-port 1 GbE and 10 GbE networking.

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.5 GHz
  • CPU SocketLGA 2011-3
  • Dual 12-core Xeon processors handle heavy workloads
  • 128GB DDR4 ECC memory supports large datasets
  • 24 drive bays enable massive local storage
  • PERC H730 controller delivers hardware RAID flexibility
  • iDRAC8 Enterprise provides full remote management

2U rack server for dense storage workloads

The PowerEdge R730xd is a 2U rack server built for midsize and large enterprises running data warehouses, e-commerce platforms, VDI, databases or high-performance computing as a data node. Two Intel Xeon E5-2680 v3 processors deliver 24 cores at 2.5 GHz with 3.3 GHz turbo. It suits IT teams needing high drive density in a compact rack footprint.

Capacity and headroom with 24 drive bays

Twenty-four 2.5-inch SAS/SATA trays provide extensive local storage capacity without installed drives. The PERC H730 1GB controller supports RAID 0, 1, 5, 6, 10, 50 and 60 plus pass-through. Memory scales to 1.5 TB across 24 DDR4 slots; 128 GB is installed as eight 16 GB registered ECC modules at 2133 MHz. CPU sockets are fully populated at two processors.

Build quality with redundant power and remote

Dual 750 W platinum-efficiency hot-swap power supplies deliver redundancy. The Intel X520/I350 daughter card provides two 1 GbE and two 10 Gb SFP+ ports. iDRAC 8 Enterprise enables out-of-band remote management. Ready rails and a front bezel are included for rack mounting. No drives ship with the unit.

Highlights

  • Dual 12-core Xeon processors handle heavy workloads
  • 128GB DDR4 ECC memory supports large datasets
  • 24 drive bays enable massive local storage
  • PERC H730 controller delivers hardware RAID flexibility
  • iDRAC8 Enterprise provides full remote management

Specifications

BrandDELL
SeriesPowerEdge R730XD
ModelR730xd
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.5 GHz
CPU SocketLGA 2011-3
Number of CPU Cores12-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my existing 2.5" SATA or SAS drives fit the 24 drive trays supplied with this R730xd?

Yes, the 24 included 2.5" trays accept standard 2.5" SATA or SAS hard drives and solid-state drives.

How can I verify the dual Xeon E5-2680 v3 processors and 128 GB of DDR4 memory are recognised after power-on?

During POST the BIOS lists both 12-core CPUs at 2.5 GHz and shows 128 GB of registered ECC DDR4 across the memory slots.

Which components ship in the box and which storage media must I purchase separately?

The server arrives with two CPUs, 128 GB DDR4, H730 controller, X520/I350 quad-port card, iDRAC8 Enterprise, dual 750 W PSUs, rails, bezel and 24 empty 2.5" trays; drives are not included.
