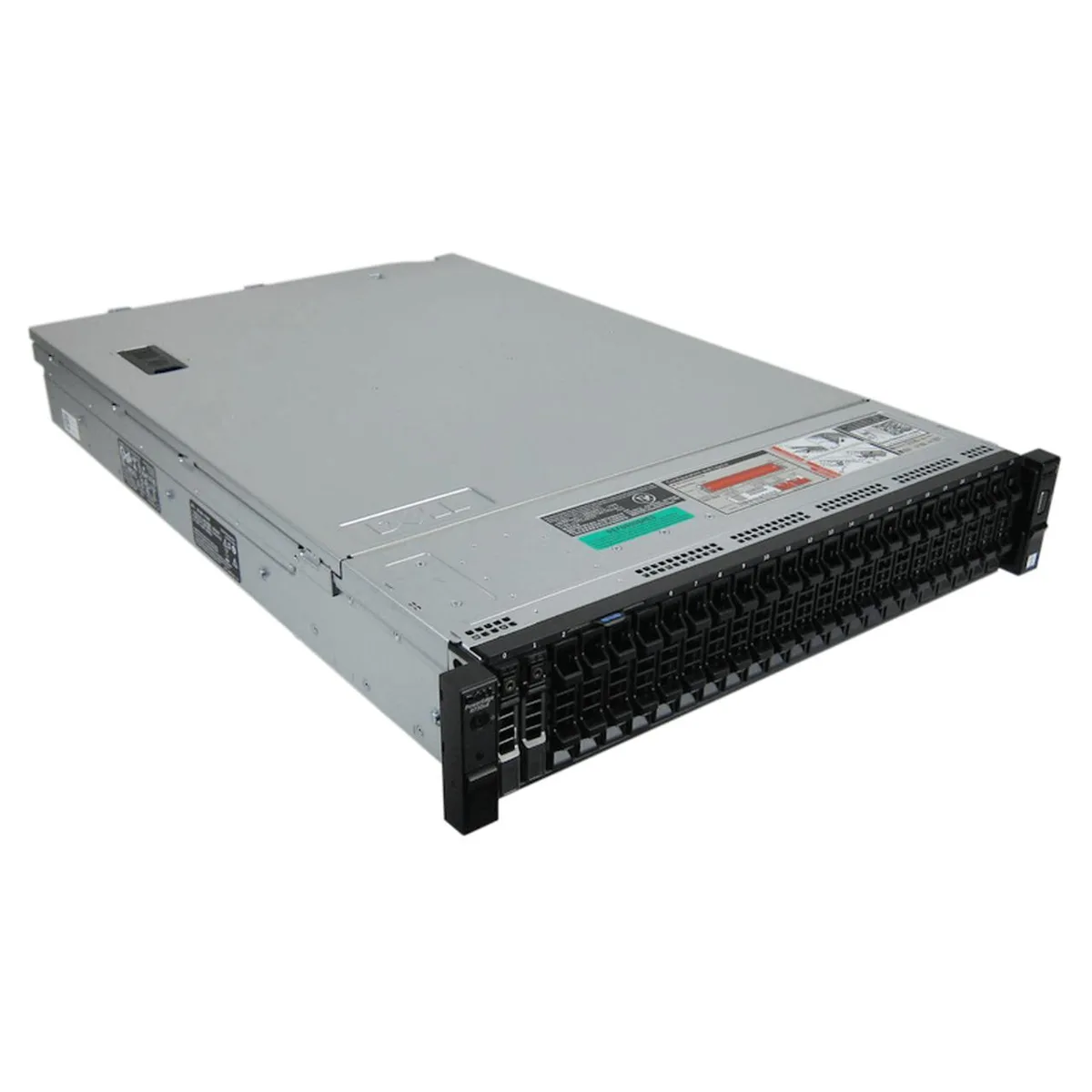

Silver 2U rack server with front bezel and 24 drive bays

DELL

DELL PowerEdge R730xd 2U rack server 2x Xeon E5-2680 v3 2.5GHz 12-core 256GB DDR4 2x 800GB SSD

SKU CH-EG6D-7Z0JV

Dual 12-core Xeon 2U rack server with 256GB DDR4, H730 RAID controller, dual 800GB SATA SSDs and quad-port 1/10GbE networking

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.5 GHz
  • CPU SocketLGA 2011-3
  • 24 cores at 2.5 GHz base with 3.3 GHz turbo handle heavy workloads
  • 256 GB DDR4 registered ECC memory supports large virtualisation clusters
  • PERC H730 1 GB controller enables RAID 0/1/5/6/10/50/60
  • Dual 800 GB SATA SSDs provide fast read performance for databases
  • iDRAC 8 Enterprise and quad-port 1/10 GbE give remote control and network flexibility

Dense 2U compute and storage

The Dell PowerEdge R730xd packs dual Xeon E5-2680 v3 processors with 24 total cores into a 2U rack form factor. 256 GB of DDR4 ECC memory and a PERC H730 RAID controller support database, virtualisation and HPC data-node roles. Twenty-four 2.5-inch drive bays give dense local capacity for mixed workloads.

Redundant cooling and platinum power

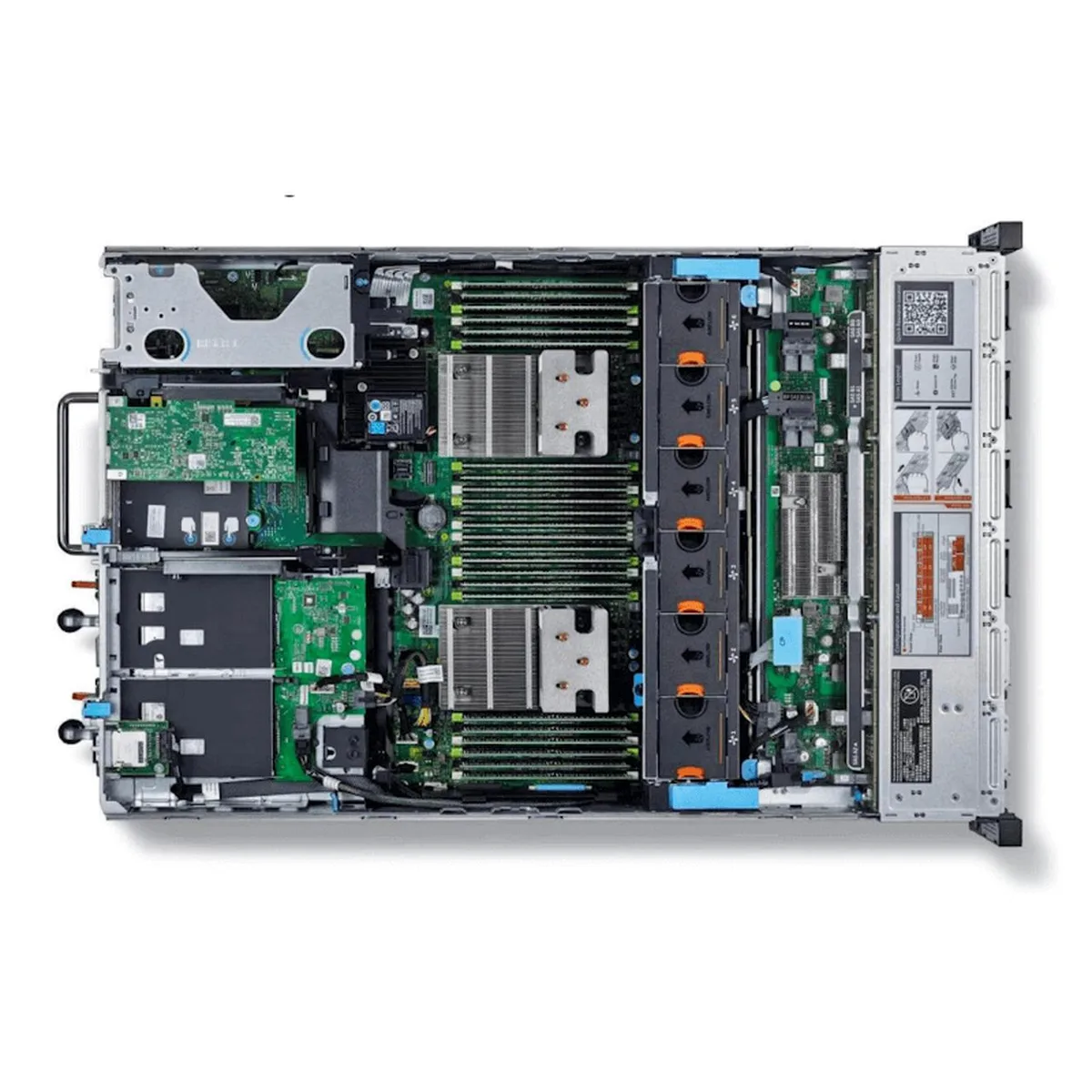

Two 750 W platinum-efficiency power supplies share the load and provide hot-swap redundancy for continuous operation. The 2U chassis directs front-to-rear airflow across both CPUs, memory and the 24-bay backplane. iDRAC 8 Enterprise enables remote thermal monitoring and power management without host OS involvement.

Quad-port networking and rails included

An Intel X520/I350 daughter card adds two 1 GbE and two 10 Gb SFP+ ports for flexible fabric connectivity. Ready Rails and a front bezel ship with the unit for immediate rack integration. The PERC H730 battery-backed cache protects in-flight writes across RAID 0, 1, 5, 6, 10, 50 and 60 arrays.

Highlights

  • 24 cores at 2.5 GHz base with 3.3 GHz turbo handle heavy workloads
  • 256 GB DDR4 registered ECC memory supports large virtualisation clusters
  • PERC H730 1 GB controller enables RAID 0/1/5/6/10/50/60
  • Dual 800 GB SATA SSDs provide fast read performance for databases
  • iDRAC 8 Enterprise and quad-port 1/10 GbE give remote control and network flexibility

Specifications

BrandDELL
SeriesPowerEdge R730XD
ModelR730xd
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.5 GHz
CPU SocketLGA 2011-3
Number of CPU Cores12-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size256GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)2 x 800GB SATA SSD
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 24-bay 2.5-inch drive cage and what step is often missed?

Slide the server into the rack using the included Ready Rails, connect both 750-watt platinum power supplies, then configure RAID on the PERC H730 controller before the operating system sees the 800GB SSDs; the step most people skip is initializing the virtual disk in the controller BIOS.

What maintenance will the PERC H730 controller battery and the 800GB SSDs need later?

The H730's 1GB cache battery should be replaced every three to five years to preserve write-back caching, and the two 800GB SATA SSDs should be monitored via SMART for wear-leveling thresholds and replaced when the media-wear indicator approaches end of life.

What thermal or power limit appears first when both Xeon E5-2680 v3 CPUs run at 3.3GHz turbo continuously?

The dual 750-watt platinum power supplies and the 2U chassis airflow set the practical ceiling; sustained 3.3GHz turbo on all 24 cores will hit the power budget or inlet-temperature threshold before the processors reach their maximum junction temperature.
