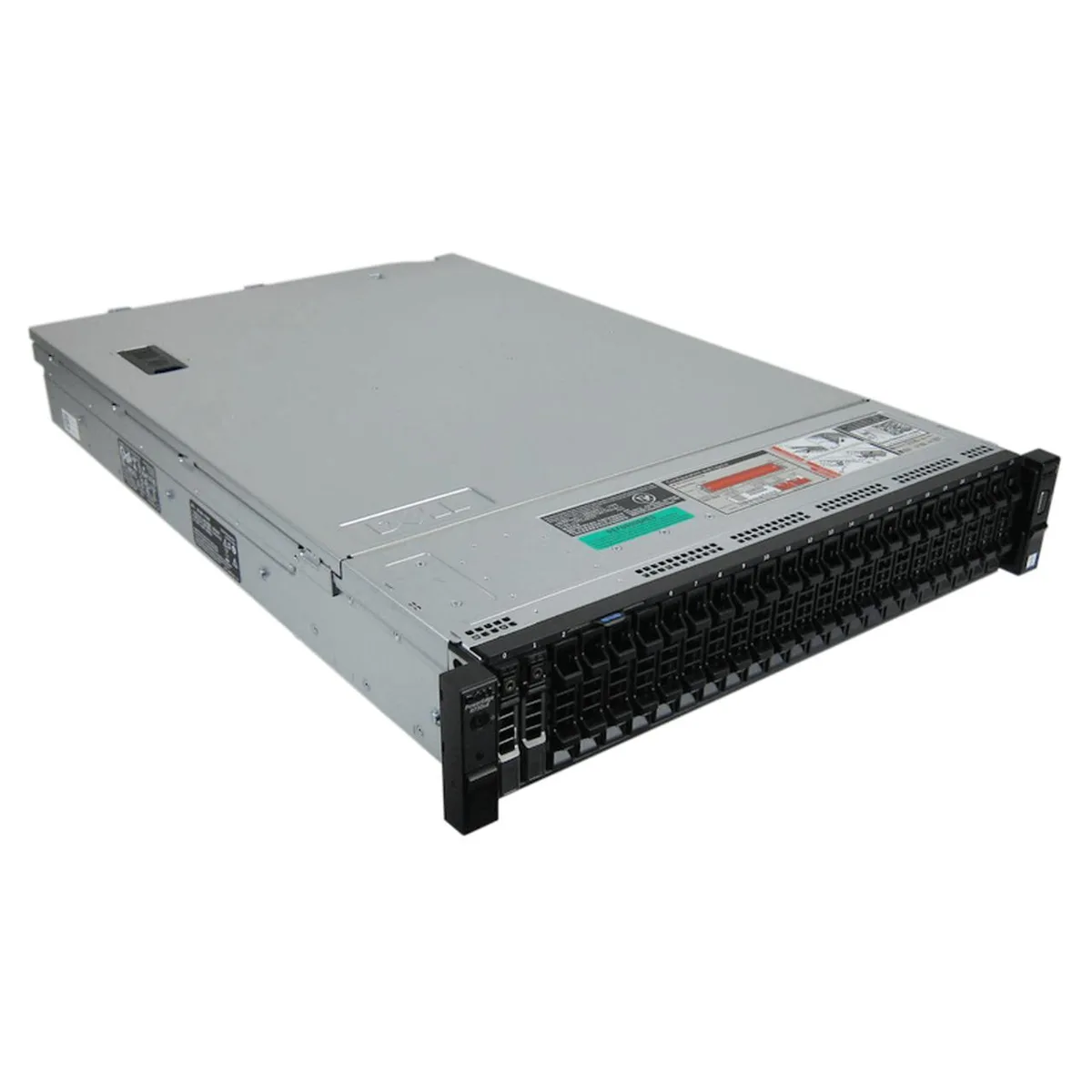

Silver 2U rack server with 24 front drive bays and bezel

DELL

DELL PowerEdge R730xd 2U Rack Server 2x Xeon E5-2660 v4 2.0GHz 14-Core 768GB DDR4 2x 800GB SSD

SKU CH-CV5X-VCT5H

A 2U rack server with dual 14-core Xeon processors at 2.0 GHz, 768 GB DDR4 memory and two 800 GB SATA SSDs on a PERC H730 controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.00 GHz
  • CPU SocketLGA 2011-3
  • Dual 14-core Xeon processors at 2.0 GHz with 3.2 GHz turbo for heavy compute
  • 768 GB DDR4 ECC memory across 24 slots supports large virtualisation workloads
  • PERC H730 RAID controller enables RAID 0/1/5/6/10/50/60 for data protection
  • Two 800 GB SATA SSDs provide fast boot and application storage
  • Quad-port 1 GbE plus dual 10 Gb SFP+ networking with iDRAC8 Enterprise remote management

PowerEdge R730xd 2U 24-bay server

The Dell PowerEdge R730xd is a 2U rack server fitted with two Intel Xeon E5-2660 v4 processors running at 2.0 GHz with 14 cores each. It ships with 768 GB of DDR4 registered ECC memory across 24 slots and a PERC H730 storage controller. Dual 750 W platinum power supplies and iDRAC 8 Enterprise provide redundancy and remote management.

Suits dense storage and virtualisation workloads

This configuration targets midsize to large enterprises running data warehouses, e-commerce platforms, virtual desktop infrastructure or high-performance computing nodes. The 24-bay 2.5-inch chassis and dual 10 Gb SFP+ ports support storage-heavy and network-intensive tasks. Buyers who need more than 24 drive bays or a different drive form factor cannot be served by this chassis.

Dual 14-core Xeon E5-2660 v4 at 2.0 GHz

The two 14-core processors deliver 28 total cores with a 3.2 GHz turbo frequency, defining the compute ceiling for any workload placed on this system. Memory can scale to 1.5 TB using the remaining DDR4 slots. If the application demands a higher core count per socket or a newer instruction set, a different server platform is required.

Highlights

  • Dual 14-core Xeon processors at 2.0 GHz with 3.2 GHz turbo for heavy compute
  • 768 GB DDR4 ECC memory across 24 slots supports large virtualisation workloads
  • PERC H730 RAID controller enables RAID 0/1/5/6/10/50/60 for data protection
  • Two 800 GB SATA SSDs provide fast boot and application storage
  • Quad-port 1 GbE plus dual 10 Gb SFP+ networking with iDRAC8 Enterprise remote management

Specifications

BrandDELL
SeriesPowerEdge R730XD
ModelR730xd
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.00 GHz
CPU SocketLGA 2011-3
Number of CPU Cores14-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size768GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)2 x 800GB SATA SSD
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the 12Gb/s SAS/SATA PERC H730 controller cap SSD throughput at 6Gb/s?

The PERC H730 controller supports 12Gb/s SAS and 6Gb/s SATA; the installed 800GB SSDs use the SATA 6Gb/s interface so throughput is limited to that speed.

What physical mounting hardware comes with the 2U chassis?

Ready Rails sliding rails and a front bezel are included for rack installation.

How are the two Xeon E5-2660 v4 processors and 768GB DDR4 memory installed, and what step is often missed?

Both CPUs and all 24 DIMMs are pre-installed; the common oversight is forgetting to enable iDRAC8 Enterprise licensing for remote management after power-on.
