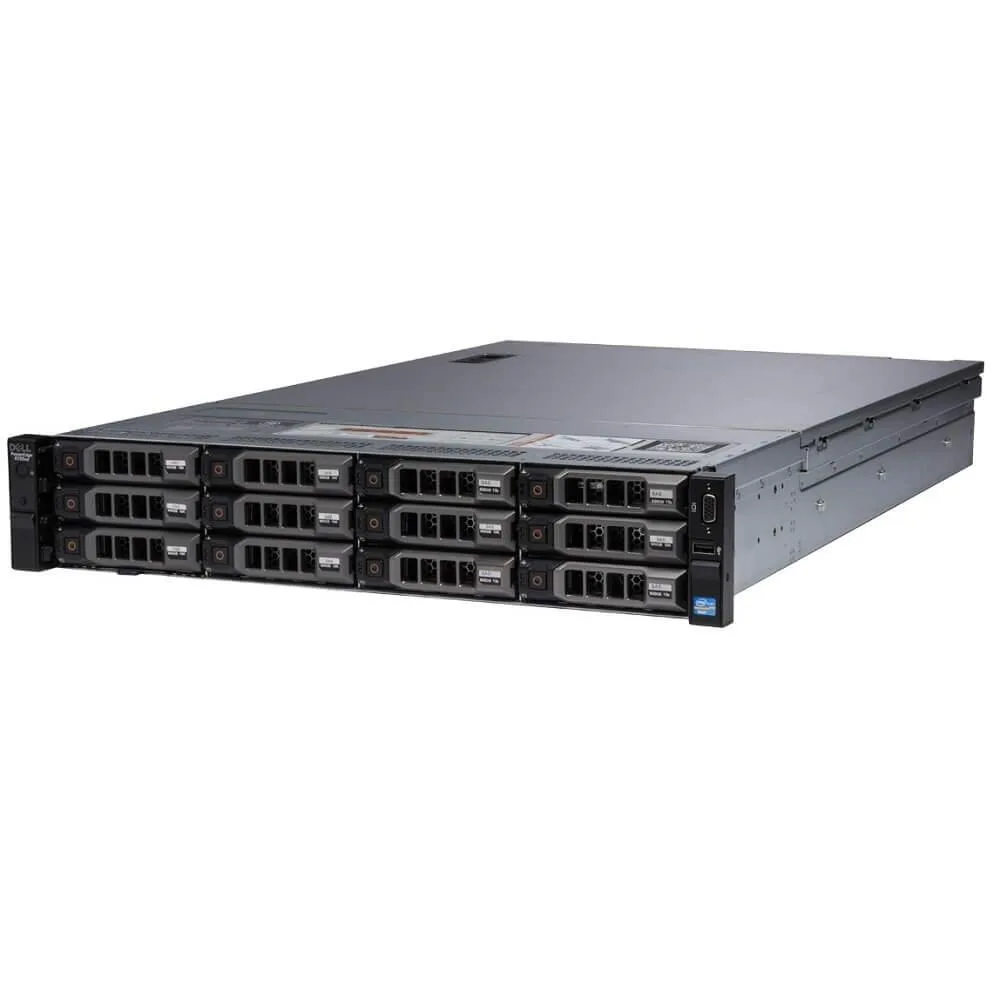

Silver 2U rack server with twelve front drive bays

DELL

DELL PowerEdge R730XD 2U rack server 2x Xeon E5-2650 v3 10C 2.3GHz 16GB DDR4 3x 2TB SAS H730

SKU CH-7YMJ-6BW68

2U rack server with dual 10-core Xeon processors, 16GB DDR4, three 2TB SAS drives and H730 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610

HDD 3 x 2TB SAS

  • Dual 10-core Xeon processors at 2.3 GHz for demanding workloads
  • 16 GB DDR4 memory across 24 DIMM slots for scalable capacity
  • Three 2 TB 7.2K SAS drives on H730 RAID controller for protected storage
  • Redundant 750 W hot-swap power supplies keep the server running
  • 2U rack design with 12 × 3.5" hot-plug bays supports up to 52 TB

Dense 3.5-inch storage server

This 2U rack server ships with two ten-core Xeon E5-2650 v3 processors at 2.3 GHz, 16 GB of DDR4 memory and three 2 TB SAS hard drives on a PERC H730 controller. It is built for workloads that need up to twelve hot-swap 3.5-inch bays and redundant 750 W power supplies in a compact rack footprint.

Suits archive and database workloads

The twelve-bay chassis and RAID 0/1/5/6/10/50/60 support make it a fit for capacity-focused storage, backup targets or traditional database instances that run on SAS media. Buyers who need solid-state speed, GPU compute density or more than sixteen cores per socket should look at alternative platforms.

Twelve 3.5-inch SAS bays decide fit

With a maximum raw capacity of 52 TB across the hot-swap drive cage, the bay count is the single constraint that determines whether this server can hold the required dataset. Expansion beyond that limit requires external enclosures or a different chassis.

Highlights

  • Dual 10-core Xeon processors at 2.3 GHz for demanding workloads
  • 16 GB DDR4 memory across 24 DIMM slots for scalable capacity
  • Three 2 TB 7.2K SAS drives on H730 RAID controller for protected storage
  • Redundant 750 W hot-swap power supplies keep the server running
  • 2U rack design with 12 × 3.5" hot-plug bays supports up to 52 TB

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I verify the H730 RAID controller is operating correctly after installation?

The PERC H730 controller supports RAID 0, 1, 5, 6, 10, 50 and 60; check the controller BIOS or iDRAC8 interface to confirm the three installed 2 TB SAS drives are recognised and the desired RAID level is healthy.

What components are included and what must be purchased separately?

The server ships with dual E5-2650 v3 processors, 16 GB DDR4 memory, three 2 TB 7.2K SAS drives, the H730 1 GB RAID controller, two 750 W redundant power supplies and a DVD-ROM; an operating system and any additional drives or memory modules are not included.

Which memory configuration should I choose for this R730XD?

The system has 24 DIMM slots (12 per processor) and currently holds 16 GB DDR4; supported modules are 4 GB, 8 GB, 16 GB, 32 GB, 64 GB or 128 GB DDR4 up to 2400 MT/s, with actual speed limited by the installed Xeon E5-2650 v3 processors.
