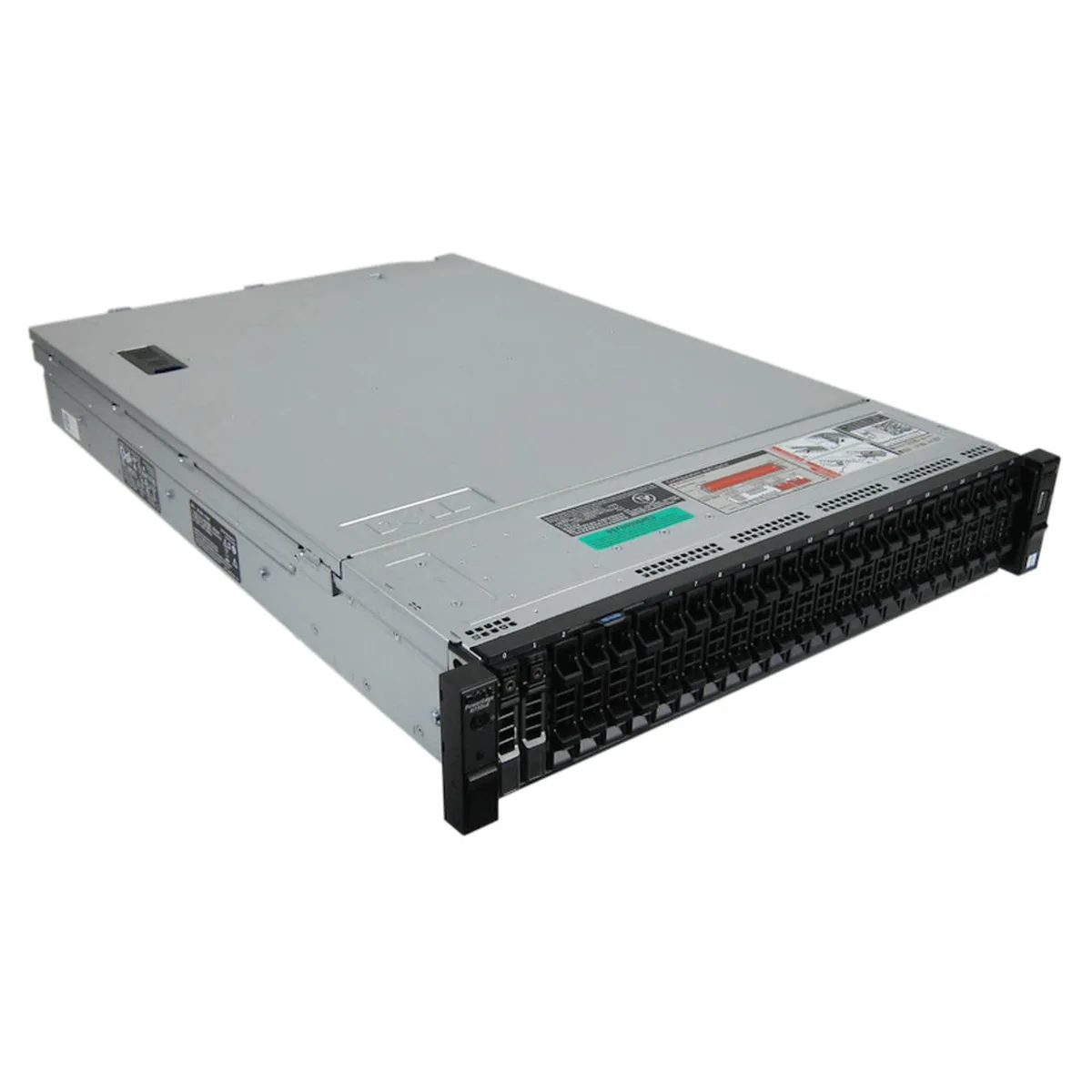

Silver 2U rack server with 24 front drive bays and front bezel

DELL

DELL PowerEdge R730xd 2U rack server 2× Xeon E5-2683 v4 2.1 GHz 16-core 64 GB DDR4 24× 2.4 TB SAS H730

SKU CH-X8PS-03FXJ

2U rack server with dual 16-core Xeon CPUs, 64 GB DDR4, 24× 2.4 TB SAS drives and H730 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3

Installed Memory Size 64GB

HDD 24 x 2.4TB 10K SAS

  • Dual 16-core Xeon processors at 2.1 GHz with 3.0 GHz turbo handle heavy compute
  • 64 GB DDR4 registered ECC memory across 4 modules supports large virtualisation workloads
  • PERC H730 1 GB controller enables RAID 0, 1, 5, 6, 10, 50, 60 with battery-backed cache
  • 24 enterprise 2.4 TB 10K SAS drives provide high-density storage in 2U
  • Quad-port X520/I350 network card adds dual 10 GbE SFP+ and dual 1 GbE connectivity

Dense 2U Storage Server

The Dell PowerEdge R730xd is a 2U rackmount server built around two Intel Xeon E5-2683 v4 processors running at 2.1 GHz with 16 cores each. It ships with 64 GB of DDR4 registered ECC memory across four modules and a PERC H730 controller with 1 GB cache. Twenty-four 2.4 TB 10K SAS drives fill every 2.5-inch bay, delivering high-capacity local storage in a compact chassis.

For Capacity-Focused Workloads

This configuration suits environments that prioritise raw disk count and throughput, such as data warehouses, VDI storage nodes or HPC data tiers. Quad-port networking with two 1 GbE and two 10 Gb SFP+ links plus iDRAC 8 Enterprise management support dense deployments. Buyers who need solid-state speed or a single-socket platform should consider other form factors.

24-Bay SAS Drive Count

The defining specification is the 24-bay 2.5-inch chassis populated entirely with 2.4 TB SAS drives behind a 12 Gb/s H730 controller supporting RAID 0, 1, 5, 6, 10, 50 and 60. This density determines whether the server fits a workload that demands maximum spindle count in 2U of rack space.

Highlights

  • Dual 16-core Xeon processors at 2.1 GHz with 3.0 GHz turbo handle heavy compute
  • 64 GB DDR4 registered ECC memory across 4 modules supports large virtualisation workloads
  • PERC H730 1 GB controller enables RAID 0, 1, 5, 6, 10, 50, 60 with battery-backed cache
  • 24 enterprise 2.4 TB 10K SAS drives provide high-density storage in 2U
  • Quad-port X520/I350 network card adds dual 10 GbE SFP+ and dual 1 GbE connectivity

Specifications

BrandDELL
SeriesPowerEdge R730XD
ModelR730xd
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores16-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power do the dual 750 W supplies draw when the server runs at full load all day?

Each supply is rated at 750 W platinum efficiency; actual draw depends on the workload you run on the 2× 16-core Xeons and 24 drives.

What cabling and rack hardware must I already have to install this 2U chassis?

The unit ships with ready rails and a front bezel; you supply the rack, PDU power cords and network patch cables for the X520/I350 ports.

Can the PERC H730 controller use my existing 6 Gb SAS drives alongside the installed 12 Gb 2.4 TB disks?

The H730 supports SAS and SATA at 12 Gb/s and is backward compatible with 6 Gb/s drives; mixed arrays will run at the slower device speed.
