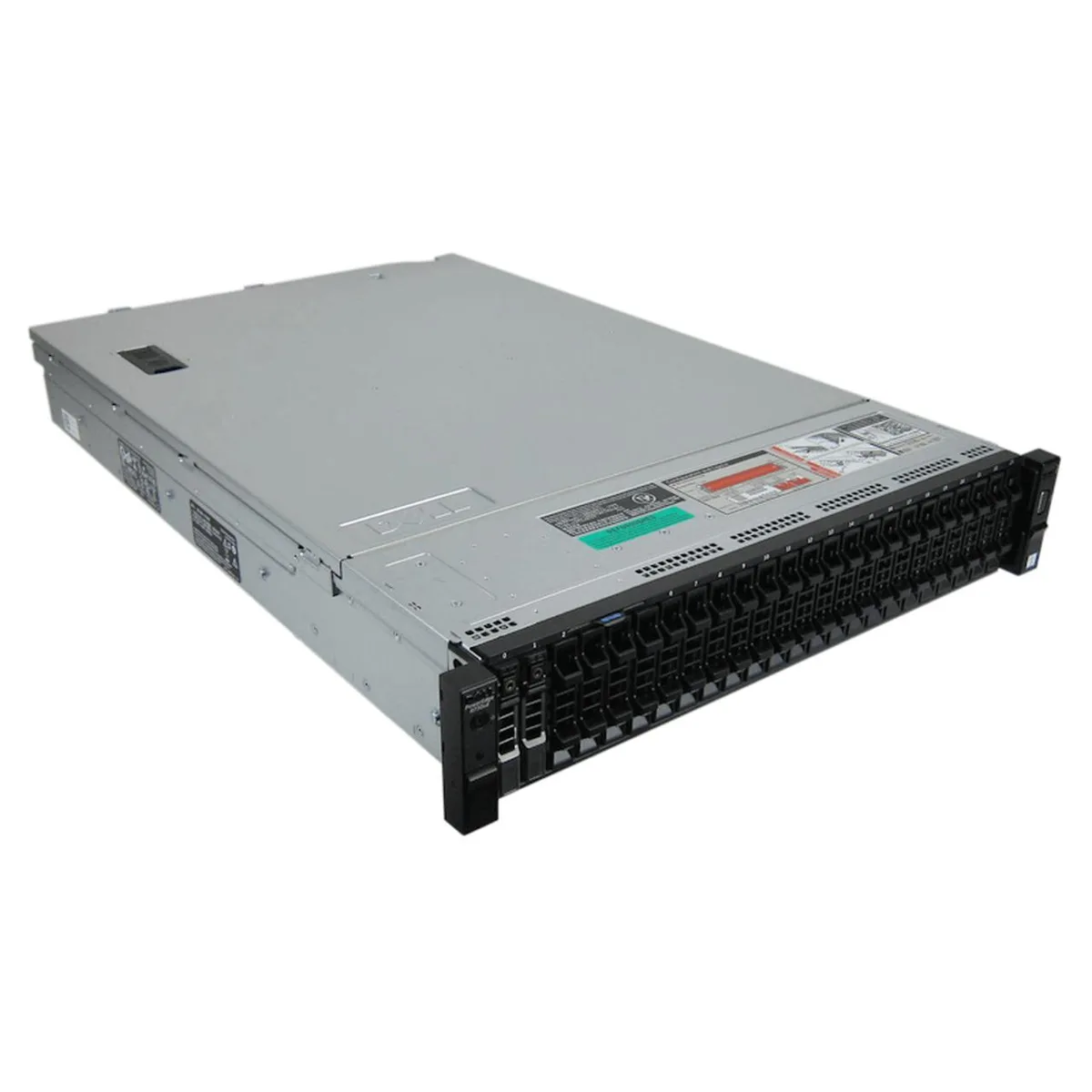

Silver 2U rack server with front bezel and twenty-four 2.5-inch drive bays

DELL

DELL PowerEdge R730xd 2U rack server 2× Xeon E5-2640 v3 2.6GHz 8-core 768GB DDR4 24× 800GB SSD H730

SKU CH-8RA7-RVN7W

2U rack server with dual Xeon E5-2640 v3 processors, 768GB DDR4 ECC memory, 24 SATA SSDs and a PERC H730 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.60 GHz
  • CPU SocketLGA 2011-3
  • Dual 8-core Xeon processors at 2.6 GHz turbo to 3.4 GHz for heavy compute workloads
  • 768 GB DDR4 registered ECC memory across 24 slots supports large virtualisation density
  • 24 enterprise 800 GB SATA SSDs on a PERC H730 controller deliver high-capacity flash storage
  • Quad-port networking with two 10 Gb SFP+ and two 1 GbE links handles demanding I/O
  • Dual 750 W platinum power supplies and iDRAC8 Enterprise ensure resilient remote management

Rack server for dense storage workloads

The PowerEdge R730xd is a 2U rack server built around two Intel Xeon E5-2640 v3 processors running at 2.6 GHz with eight cores each. It ships with 768 GB of DDR4 registered ECC memory across 24 slots and a PERC H730 controller managing 24 installed 800 GB SATA SSDs. Dual 750 W power supplies, iDRAC8 Enterprise and quad-port 1GbE/10GbE networking come standard.

Suits virtualisation and database nodes needing

This configuration targets midsize and large enterprises running data warehouses, e-commerce platforms, VDI or HPC data nodes that benefit from 24 front-accessible 2.5-inch bays. Buyers who require fewer drive bays, a single-socket design or a smaller form factor should evaluate other platforms.

PERC H730 controller with 1 GB cache decides RAID

The storage controller supports RAID 0, 1, 5, 6, 10, 50 and 60 plus pass-through mode, backed by a battery. Its 12 Gb/s SAS/SATA interface and 1 GB cache determine the achievable redundancy and performance for the 24 installed SSDs.

Highlights

  • Dual 8-core Xeon processors at 2.6 GHz turbo to 3.4 GHz for heavy compute workloads
  • 768 GB DDR4 registered ECC memory across 24 slots supports large virtualisation density
  • 24 enterprise 800 GB SATA SSDs on a PERC H730 controller deliver high-capacity flash storage
  • Quad-port networking with two 10 Gb SFP+ and two 1 GbE links handles demanding I/O
  • Dual 750 W platinum power supplies and iDRAC8 Enterprise ensure resilient remote management

Specifications

BrandDELL
SeriesPowerEdge R730XD
ModelR730xd
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.60 GHz
CPU SocketLGA 2011-3
Number of CPU Cores8-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size768GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)24 x 800GB SATA SSD
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What SATA link speed do the installed 800GB SSDs use, and what does that cap in practice?

The 24 installed 800GB SSDs connect over SATA 6Gb/s through the PERC H730 controller, so each drive is limited to the SATA 6Gb/s interface ceiling.

What physical space and mounting hardware does this 2U server require?

The server occupies 2U of rack height and ships with ready rails and a front bezel for standard cabinet installation.

How is the PERC H730 controller installed, and what step is often missed?

The PERC H730 mini controller is pre-installed in its dedicated slot; the step often missed is ensuring the battery backup module is seated so write-back caching can be enabled.
