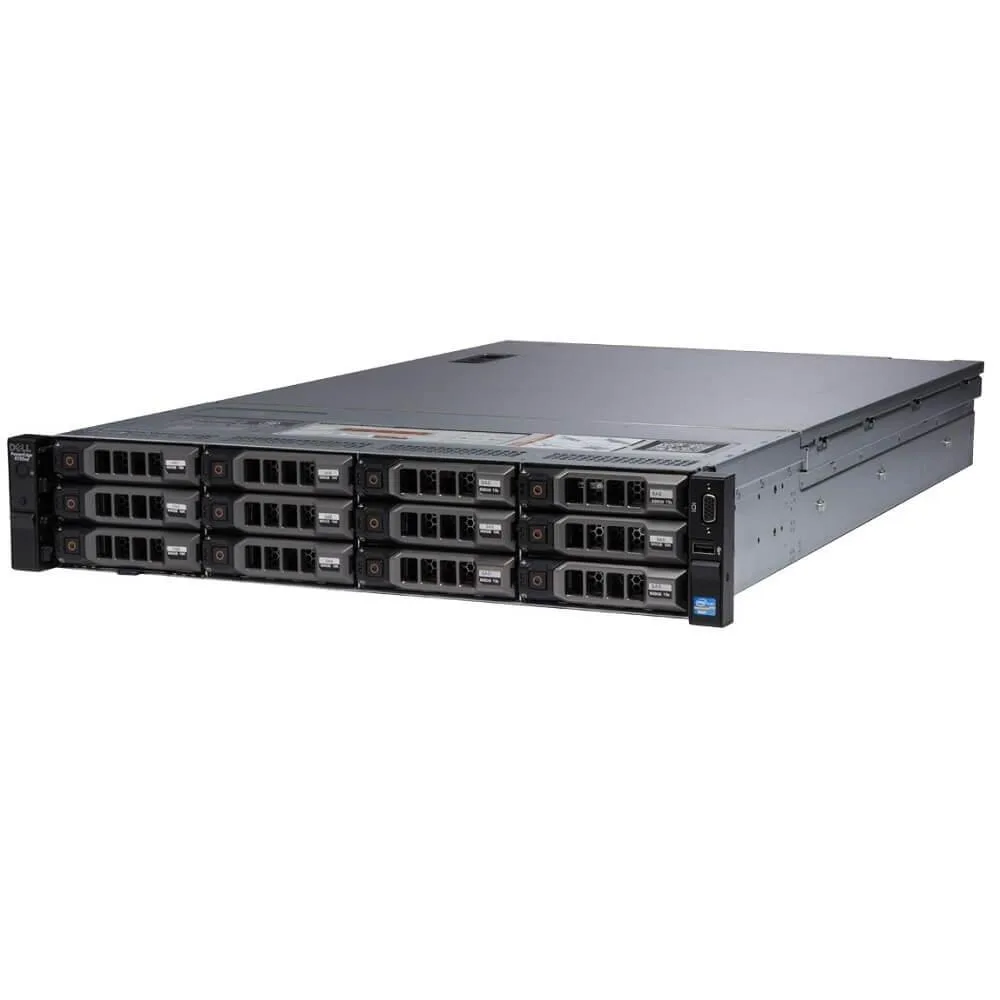

Silver 2U rack server with twelve front 3.5-inch drive bays

DELL

DELL PowerEdge R730XD 2U rack server 2× Xeon E5-2630v3 2.4GHz 32GB DDR4 3× 1TB SATA H730

SKU CH-TM82-PA17C

2U rack server with dual Xeon E5-2630v3 CPUs, 32GB DDR4, three 1TB SATA drives and H730 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610
  • Dual Xeon E5-2630v3 CPUs deliver 32 virtual cores for parallel workloads
  • 32GB DDR4 memory supports demanding applications across 24 DIMM slots
  • Three 1TB 7.2K SATA drives provide immediate storage capacity
  • H730 RAID controller enables RAID 0/1/5/6/10/50/60 data protection

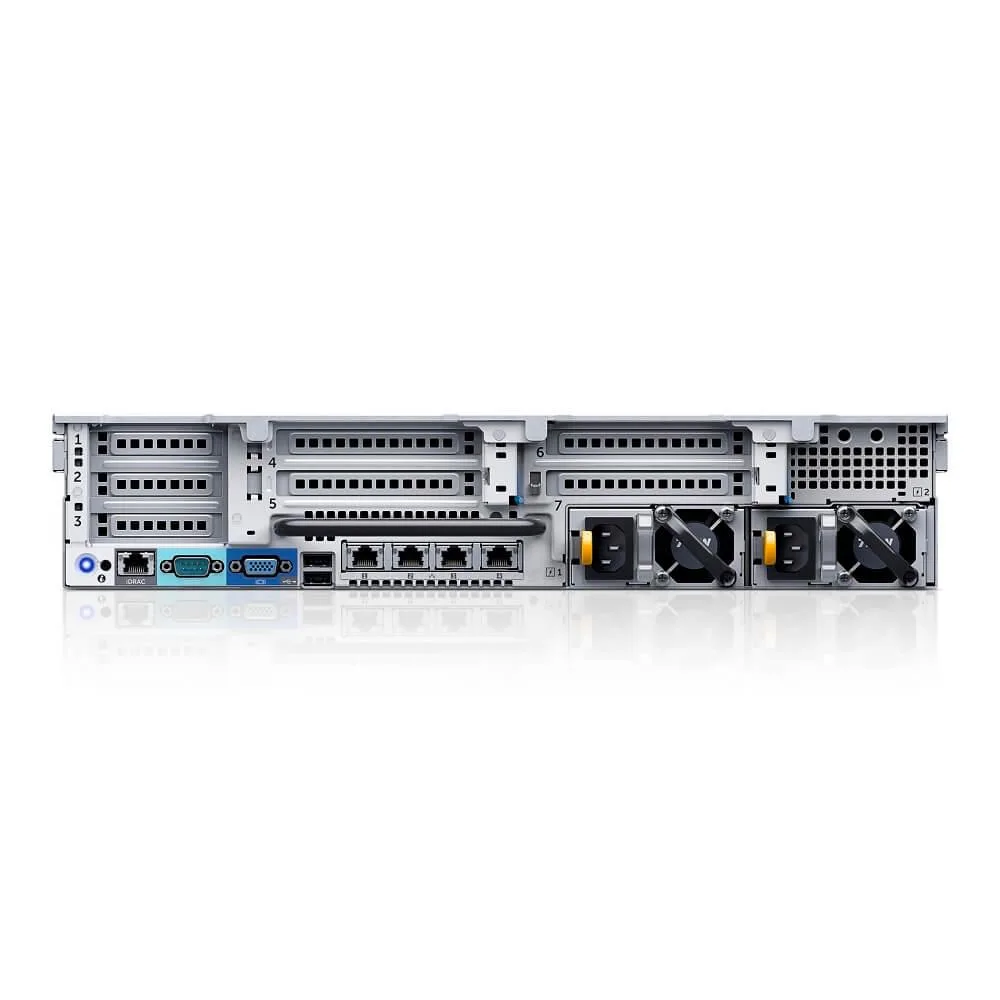

  • Dual 750W redundant power supplies maintain uptime during power events

Purpose-built 2U storage server

The Dell PowerEdge R730XD is a 2U rack server designed for capacity-heavy workloads. It ships with dual Xeon E5-2630v3 processors, 32GB of DDR4 memory and three 1TB 7.2K SATA drives behind a Perc H730 RAID controller. Redundant 750W power supplies and 12 hot-plug 3.5-inch bays complete the chassis.

Ideal for dense archival workloads.

This configuration suits teams that need maximum 3.5-inch drive density in a 2U form factor with hardware RAID 0, 1, 5, 6, 10, 50 or 60. Organisations requiring all-flash performance, more than 12 internal bays or GPU-accelerated compute should evaluate alternative platforms.

Twelve 3.5-inch hot-plug bays define the storage

The chassis supports up to twelve 3.5-inch SAS or SATA drives with a maximum raw capacity of 52TB. That bay count and the H730 controller are the primary constraints that determine whether the system matches your retention and throughput requirements.

Highlights

  • Dual Xeon E5-2630v3 CPUs deliver 32 virtual cores for parallel workloads
  • 32GB DDR4 memory supports demanding applications across 24 DIMM slots
  • Three 1TB 7.2K SATA drives provide immediate storage capacity
  • H730 RAID controller enables RAID 0/1/5/6/10/50/60 data protection
  • Dual 750W redundant power supplies maintain uptime during power events

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity32GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 2.4 GHz figure mean for real-world throughput?

The two eight-core Xeon E5-2630v3 processors run at 2.4 GHz, delivering 16 physical cores and 32 threads for multi-threaded workloads.

Which interface does the H730 controller use and what speed does it cap at?

The H730 connects via PCIe 3.0 and handles 12 Gbps SAS or 6 Gbps SATA drives, with 1 GB cache.

How much space and what mounting does the chassis need?

The 2U rack unit measures 26.8 in deep, 17.44 in wide and 3.4 in high, weighing 60 lbs for standard rack rails.
