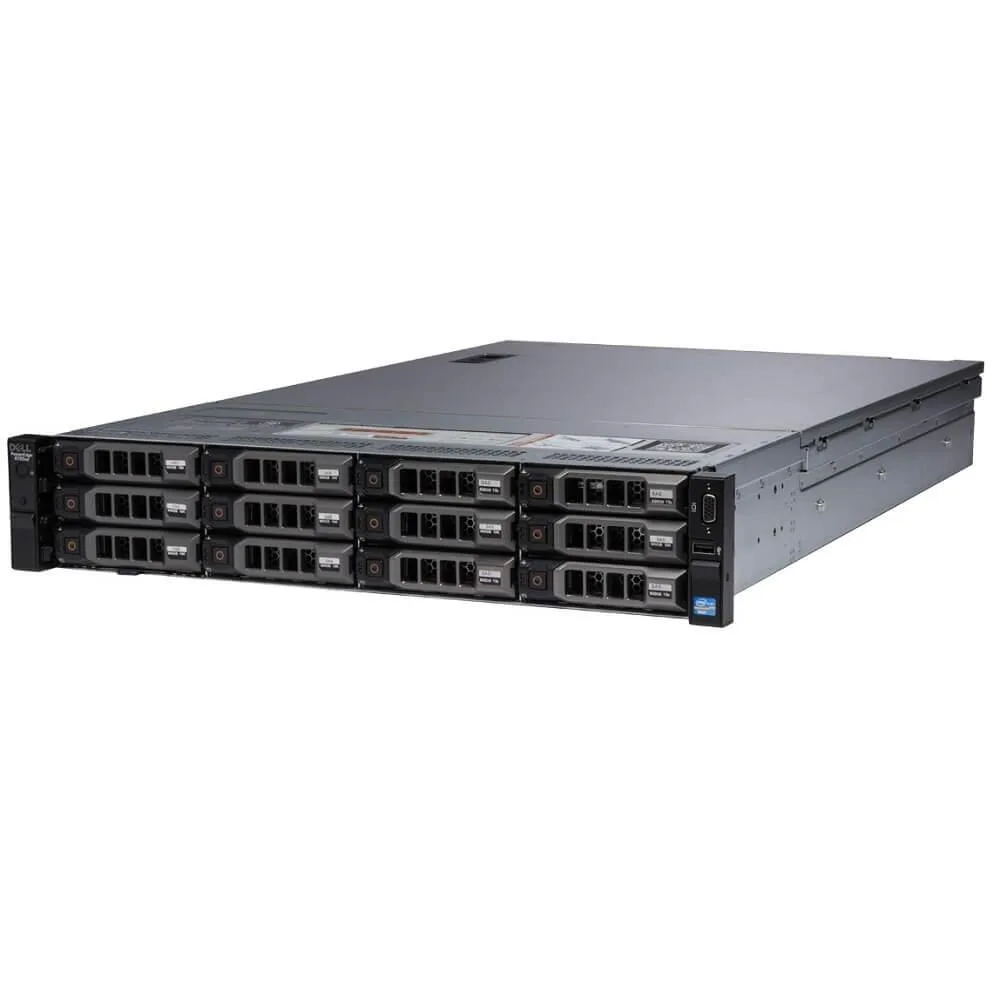

Silver 2U rack server with twelve 3.5-inch drive bays front panel

DELL

DELL PowerEdge R730XD 2U rack server 2× E5-2630 v3 2.4GHz 32GB DDR4 H330 12× 3.5

SKU CH-EY2G-32400

A 2U rack server with twelve 3.5-inch hot-plug bays, dual Xeon E5-2630 v3 processors at 2.4GHz, 32GB DDR4 and a H330 RAID controller supporting RAID 0/1/5/10/50/60

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610
  • Dual 8-core Xeon CPUs at 2.4GHz deliver 32 threads for multi-tasking
  • 32GB DDR4 memory across 24 slots supports up to 1536GB capacity
  • H330 12Gbps RAID controller enables RAID 0/1/5/10/50/60
  • 12 hot-plug 3.5-inch bays hold up to 52TB of SAS/SATA storage
  • Dual 750W redundant power supplies with iDRAC8 remote management

2U rack server with dual Xeon CPUs

This Dell PowerEdge R730XD is a 2U rack server built for storage-dense workloads. It ships with two Intel Xeon E5-2630 v3 eight-core processors running at 2.4GHz and 32GB of DDR4 memory across 24 DIMM slots. The chassis supports up to twelve 3.5-inch hot-plug SAS or SATA drives managed by a PERC H330 RAID controller. It targets IT teams needing high internal capacity in a standard rack footprint.

Verify rack depth power and drive trays

Before ordering, confirm your rack cabinet can accommodate the 26.8-inch depth and 3.4-inch height of this 2U unit. The system includes two 750W redundant hot-swap power supplies, so ensure your PDU connectors and circuit capacity match. No drive trays or drives are included; you must source compatible 3.5-inch SAS or SATA trays for the twelve front bays. Network connectivity defaults to a four-port 1GbE daughter card with optional 10GbE upgrades.

iDRAC8 remote management and expansion slots

The integrated iDRAC8 with Lifecycle Controller provides out-of-band remote management for deployment and monitoring without an operating system. A DVD-ROM drive is fitted for local media installation. Internal expansion offers up to six PCIe 3.0 slots plus a dedicated RAID card slot for additional controllers or networking cards. A rail kit and bezel are included to simplify rack mounting and physical security.

Highlights

  • Dual 8-core Xeon CPUs at 2.4GHz deliver 32 threads for multi-tasking
  • 32GB DDR4 memory across 24 slots supports up to 1536GB capacity
  • H330 12Gbps RAID controller enables RAID 0/1/5/10/50/60
  • 12 hot-plug 3.5-inch bays hold up to 52TB of SAS/SATA storage
  • Dual 750W redundant power supplies with iDRAC8 remote management

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity32GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box and what must I add to make the server run?

The unit ships with dual Xeon E5-2630 v3 CPUs, 32GB DDR4, H330 controller, DVD drive, two 750W redundant supplies and a power cable. You must supply 3.5" SAS or SATA drives, drive trays, an operating system and a rail kit.

Which memory configuration should I choose if I want the maximum supported capacity?

The board has 24 DIMM slots and supports up to 1536GB total using 128GB DDR4 modules at 2400MT/s, limited by the processor capability.

What does the H330 controller's 12Gbps rating mean for real drive throughput?

It provides a 12Gbps SAS/SATA link to each of the 12 hot-plug bays; actual throughput depends on the drives you install and the RAID level selected.
