Silver 2U rack server with twelve front drive bays and dual redundant power supplies

DELL

DELL PowerEdge R730XD 2U rack server 2× E5-2630 v3 2.4 GHz 32 GB DDR4 3× 1 TB SATA H330

SKU CH-DY8A-MHNYN

A 2U rack server with dual Xeon E5-2630 v3 CPUs, 32 GB DDR4, three 1 TB SATA drives and a PERC H330 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610
  • Dual eight-core Xeon processors deliver 32 threads for virtualisation workloads
  • 32 GB DDR4 memory supports multi-tenant applications with room to expand
  • Twelve 3.5-inch hot-plug bays enable high-capacity storage growth
  • H330 RAID controller provides hardware RAID 0, 1, 5, 10, 50, 60
  • Redundant 750 W power supplies keep the server running during a failure

PowerEdge R730XD 2U rack server

The Dell PowerEdge R730XD is a 2U rack server built for dense storage workloads. It ships with dual Intel Xeon E5-2630 v3 eight-core processors running at 2.4 GHz and 32 GB of DDR4 memory. The system targets environments that need high drive counts in a compact chassis.

12-bay hot-plug storage with H330 RAID

The chassis accepts up to 12 x 3.5-inch hot-plug SAS or SATA drives; three 1 TB 7.2K SATA drives are installed. The Dell PERC H330 12 Gbps controller supports RAID 0, 1, 5, 10, 50 and 60, with a maximum raw capacity of 52 TB. Memory tops out at 32 GB across 24 DIMM slots, so large in-memory datasets will require a different platform.

Redundant power and remote management

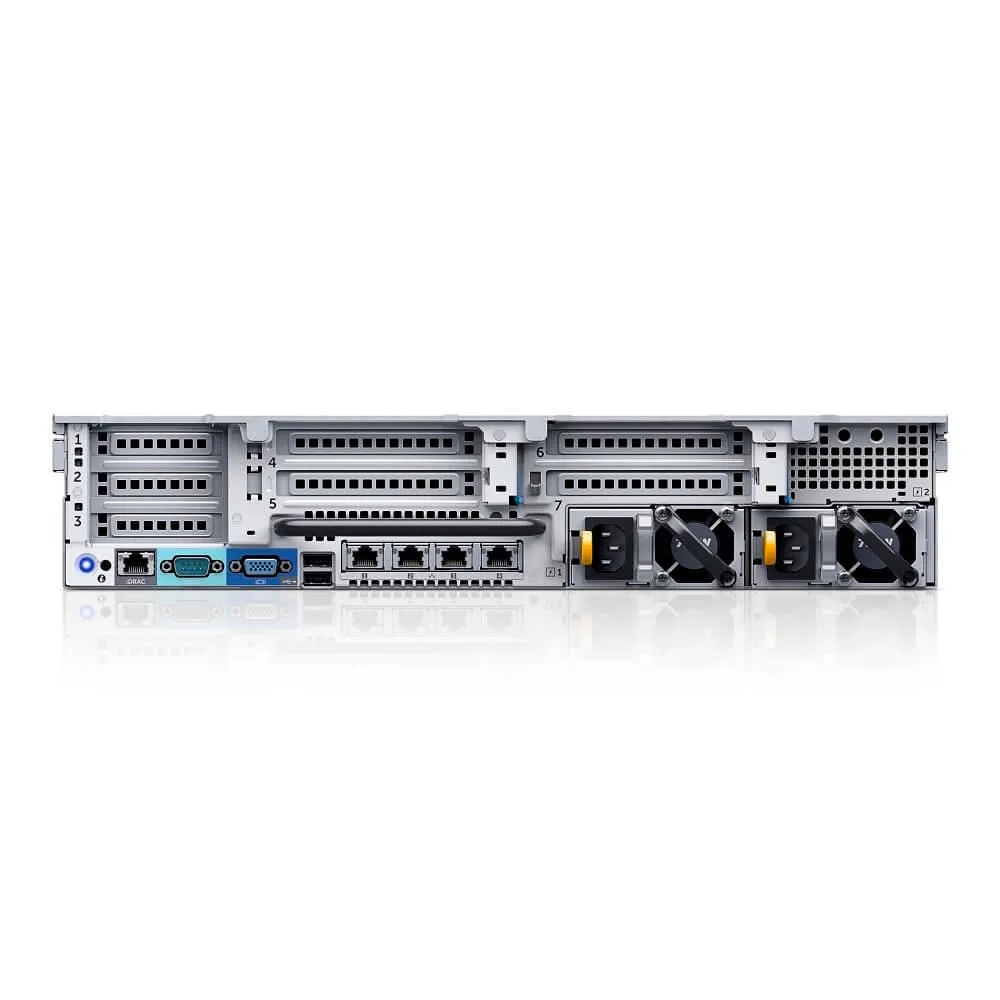

Dual 750 W hot-swap power supplies provide redundancy for continuous operation. A DVD-ROM drive is included for media tasks. Networking uses a daughter card with four 1 GbE ports, while optional 10 GbE NDCs can be added. Six PCIe 3.0 slots plus a dedicated RAID slot allow expansion cards, and iDRAC8 with Lifecycle Controller handles remote administration.

Highlights

  • Dual eight-core Xeon processors deliver 32 threads for virtualisation workloads
  • 32 GB DDR4 memory supports multi-tenant applications with room to expand
  • Twelve 3.5-inch hot-plug bays enable high-capacity storage growth
  • H330 RAID controller provides hardware RAID 0, 1, 5, 10, 50, 60
  • Redundant 750 W power supplies keep the server running during a failure

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730XD
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity32GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
HDD InterfaceSATA
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity52TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the twelve 3.5-inch bays accept the SATA drives I already own?

Yes, the chassis supports up to twelve 3.5-inch hot-plug SATA or SAS drives, so existing SATA drives fit directly into the supplied trays.

How can I confirm the H330 controller is managing the three 1 TB drives correctly after installation?

During boot, open the H330 BIOS utility (Ctrl+R) to verify the RAID volume status shows optimal and all three drives appear as members.

Which items ship inside the box and which must be ordered separately?

The server includes two E5-2630 v3 processors, 32 GB DDR4, three 1 TB 7.2K SATA drives with trays, H330 RAID controller, two 750 W redundant power supplies, DVD-ROM, iDRAC8 Express and rails; operating system and additional memory or drives are not included.
