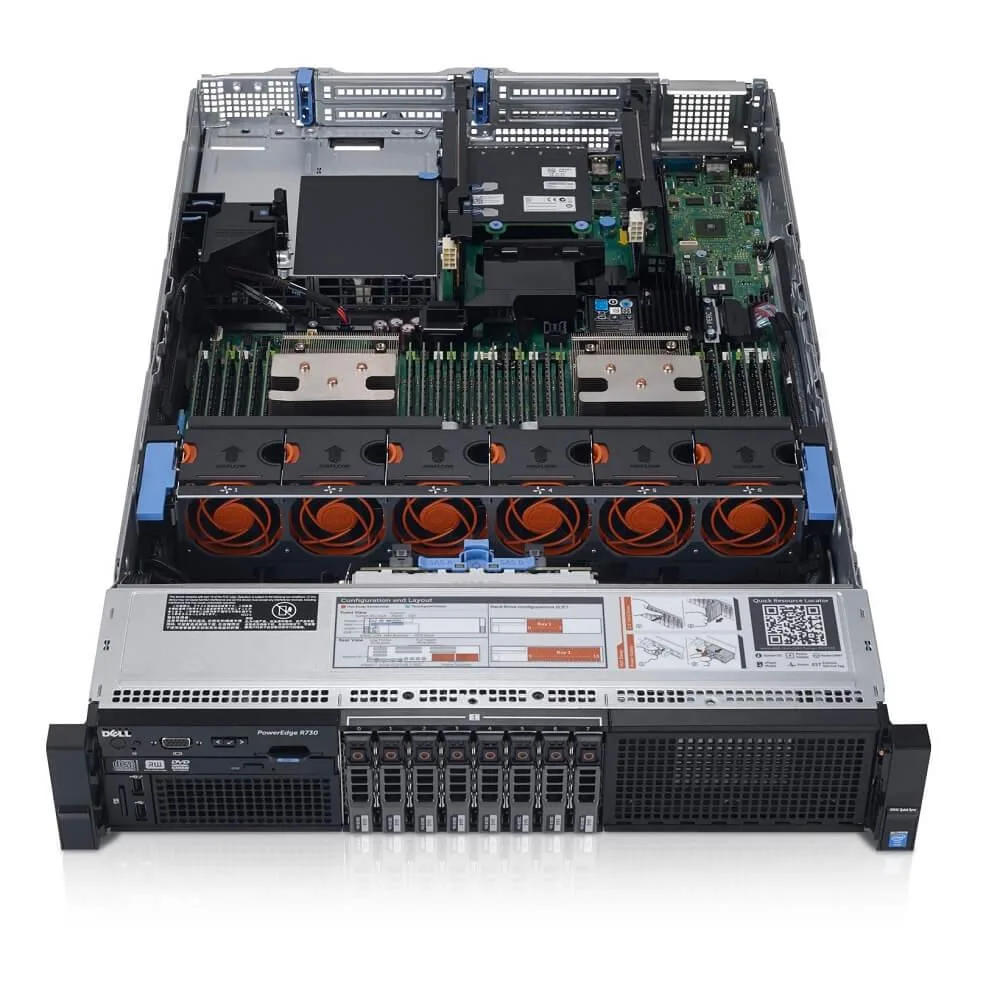

Silver 2U rack server with eight 2.5-inch drive bays visible

DELL

DELL PowerEdge R730 2U rack server E5-2650 v3 10C 2.3GHz 96GB DDR4 2x 900GB SAS H330

SKU CH-CF2T-XB2SB

2U rack server with a ten-core 2.3 GHz Xeon, 96 GB DDR4, two 900 GB SAS drives and an H330 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 96GB

HDD 2 x 900GB

  • Ten-core Xeon E5-2650 v3 at 2.3 GHz delivers 20 virtual threads
  • 96 GB DDR4 across 24 DIMM slots supports up to 1536 GB total
  • Two 900 GB 10K SAS drives on H330 controller with RAID 0/1/5/10/50/60
  • Dual 750 W hot-swap power supplies keep the 2U rack server running
  • iDRAC8 remote management plus 4 × 1 GbE ports and seven PCIe 3.0 slots

Dell PowerEdge R730 2U rack server

The Dell PowerEdge R730 is a 2U rack server built around a single Intel Xeon E5-2650 v3 ten-core processor running at 2.3 GHz. It ships with 96 GB of DDR4 memory and two 900 GB 10 K SAS drives managed by a PERC H330 RAID controller. Dual 750 W redundant power supplies and iDRAC8 remote management are included. It suits IT teams needing a dense, serviceable platform for virtualization or database workloads.

Ideal for virtualization hosts and storage clusters

This configuration fits administrators who want hot-plug 2.5-inch SAS bays, hardware RAID 0/1/5/10/50/60 and up to 24 DIMM slots for future memory growth. Buyers who need more than eight drive bays, a second processor installed, or 10 GbE networking from day one should consider other options. The system maxes at 96 GB with the current CPU, so larger memory footprints require a processor upgrade.

Single E5-2650 v3 limits memory to 96 GB

The installed Xeon E5-2650 v3 supports a maximum of 96 GB across its twelve memory channels, matching the factory-fitted capacity. Expanding beyond this figure demands a second or higher-specification processor, which the empty second socket allows. The H330 controller provides 12 Gbps SAS connectivity for the existing 900 GB drives and any additional hot-plug disks.

Highlights

  • Ten-core Xeon E5-2650 v3 at 2.3 GHz delivers 20 virtual threads
  • 96 GB DDR4 across 24 DIMM slots supports up to 1536 GB total
  • Two 900 GB 10K SAS drives on H330 controller with RAID 0/1/5/10/50/60
  • Dual 750 W hot-swap power supplies keep the 2U rack server running
  • iDRAC8 remote management plus 4 × 1 GbE ports and seven PCIe 3.0 slots

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size96GB
Memory TypeDDR4
Max Memory Capacity96GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity64TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What rack height and drive-bay configuration does the PowerEdge R730 require?

The server occupies 2U of rack space and provides up to 8 hot-plug 2.5-inch bays for SAS or SATA drives.

How is the H330 RAID controller installed and which step is often missed?

The H330 slots into the dedicated PERC slot on the system board; the step often missed is connecting the SAS cables from the backplane to the controller before powering on.

When will the redundant 750W power supplies need replacement?

Replace a supply when the front-panel LED shows amber or iDRAC8 reports a power-supply fault; both units are hot-swap so the server stays running during the change.
