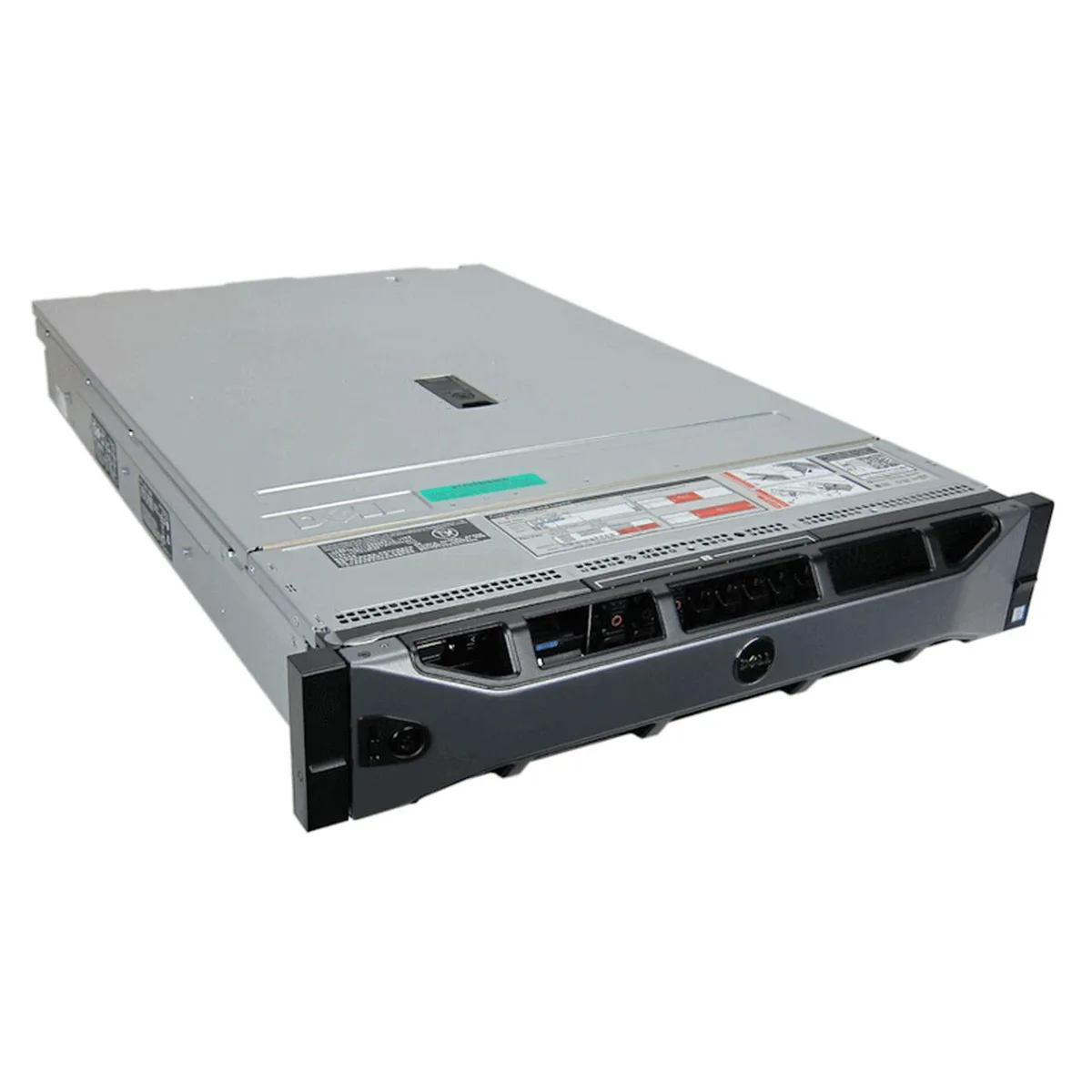

Silver 2U rack server front with eight 2.5 inch drive bays and bezel

DELL

DELL PowerEdge R730 2U rack server 2x Xeon E5-2680 v4 2.4GHz 14-core 128GB DDR4 8x 400GB SSD H730

SKU CH-DMV8-DXDKE

Two-socket 14-core Xeon server with 128 GB DDR4, eight 400 GB SSDs and PERC H730 RAID

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 2011-3
  • Dual 14-core Xeon CPUs at 2.4 GHz with 3.3 GHz turbo for heavy compute
  • 128 GB DDR4 registered ECC memory across 24 slots up to 1.5 TB
  • PERC H730 RAID controller supports RAID 0 1 5 6 10 50 60
  • Eight 400 GB SATA SSDs in 2.5 inch hot-swap bays for fast storage
  • Quad-port networking with two 1 GbE and two 10 Gb SFP+ links

Dual Xeon 2.4 GHz 14-core server

This 2U rack server ships with two Intel Xeon E5-2680 v4 processors, each running at 2.4 GHz with a 3.3 GHz turbo and 14 cores. The pair delivers 28 threads for heavy multi-threaded workloads such as virtualisation, databases and high-performance computing nodes. It targets IT teams that need dense compute in a standard rack footprint.

128 GB DDR4 and eight 400 GB SSDs

The system includes 128 GB of registered ECC DDR4-2400 across eight 16 GB modules, leaving 16 open DIMM slots for expansion up to 1.5 TB. Storage is handled by a PERC H730 1 GB controller with battery-backed cache, driving eight 400 GB SATA SSDs in a 2.5-inch bay layout that supports RAID 0, 1, 5, 6, 10, 50 and 60.

Quad-port 1/10 GbE and redundant 750 W PSUs

Networking comes from an Intel X520/I350 daughter card providing two 1 GbE ports and two 10 Gb SFP+ ports. Remote management is covered by iDRAC8 Enterprise. Dual hot-swap 750 W platinum power supplies and sliding rails with a front bezel complete the package for immediate rack integration.

Highlights

  • Dual 14-core Xeon CPUs at 2.4 GHz with 3.3 GHz turbo for heavy compute
  • 128 GB DDR4 registered ECC memory across 24 slots up to 1.5 TB
  • PERC H730 RAID controller supports RAID 0 1 5 6 10 50 60
  • Eight 400 GB SATA SSDs in 2.5 inch hot-swap bays for fast storage
  • Quad-port networking with two 1 GbE and two 10 Gb SFP+ links

Specifications

BrandDELL
SeriesPowerEdge R730
ModelR730
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 2011-3
Number of CPU Cores14-Core Processor
# of Processors Installed2
MAX Processors2
ChipsetIntel C610
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity1.5TB
Number of Memory Slots24
Storage ControllerDell Perc H730 1GB Controller
HDD InterfaceSATA
SSD (Installed)8 x 400GB SATA SSD
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo
Features8 x 2.5" SATA/SAS Hot-Plug Drive Bays

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What rack height and rail kit does the PowerEdge R730 need for mounting?

The server occupies 2U of rack height and ships with Ready Rails for installation in a standard rack.

How are the two Xeon E5-2680 v4 processors and 128GB DDR4 memory installed, and what step is often missed?

Both processors are pre-installed in the two LGA 2011-3 sockets; the 128GB (8x 16GB) DDR4 2400MHz Registered ECC modules fill 8 of the 24 slots, and the step often missed is ensuring the memory population follows the required channel order for the dual-processor configuration.

Which components in the R730 are hot-swappable and what replacement parts will be needed over time?

The 8x 400GB SATA SSDs and the two 750 Watt Platinum power supplies are hot-swappable; the PERC H730 controller includes a battery that will eventually need replacement, and the iDRAC 8 Enterprise module can be replaced independently if required.
