DELL

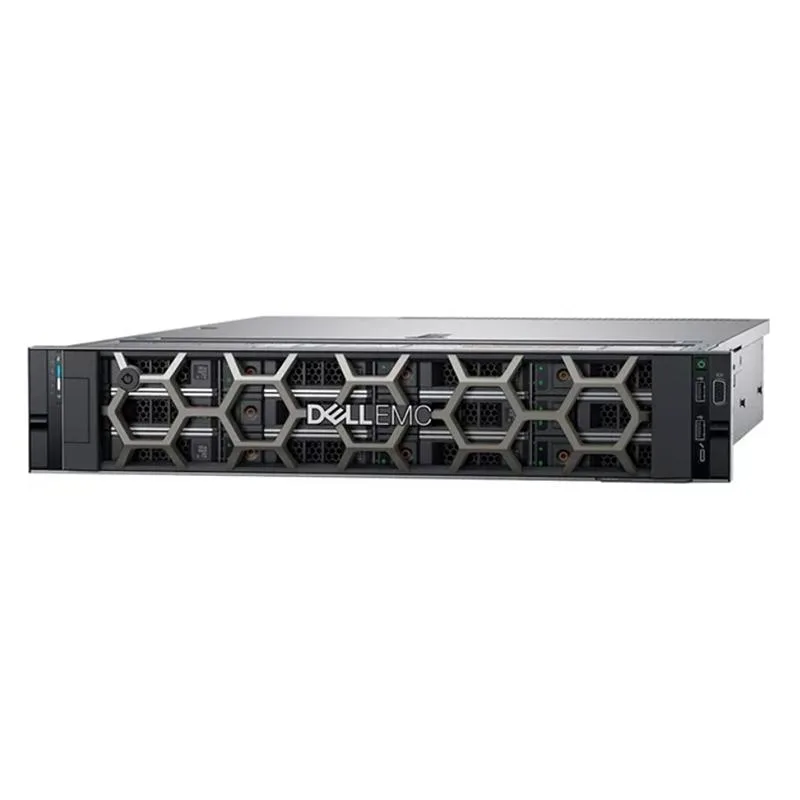

DELL PowerEdge R540 2U Rack Server 2x Xeon Silver 4114 2.2GHz 10 Core 128GB DDR4
2U rack server with dual 10-core Xeon Silver 4114 CPUs at 2.2 GHz, 128 GB DDR4 ECC memory, PERC H330 RAID controller, eight 3.5-inch drive trays, dual 1 GbE ports, iDRAC9 Enterprise.
- TypeRack
- Rack Height2U
- Redundant Hot-swap PowerYes
- CPU TypeIntel Xeon
- CPU Speed2.20 GHz
- CPU SocketLGA 3647
- Dual Xeon Silver 4114 CPUs deliver 20 cores at 2.2 GHz with 3.0 GHz turbo
- 128 GB DDR4 2666 MHz registered ECC memory across 8 slots for error-corrected capacity
- PERC H330 controller supports RAID 0, 1, 5, 10, 50 and pass-through for flexible storage
- Eight 3.5-inch SAS/SATA drive trays provide high-density internal expansion
- Dual 750 W 80+ Platinum hot-swap power supplies ensure redundant efficient operation
Dual-socket Xeon 2U server for virtualization
The Dell PowerEdge R540 is a 2U rack server equipped with two Intel Xeon Silver 4114 processors. Each CPU provides ten cores at 2.2 GHz with a 3.0 GHz turbo frequency. The system ships with 128 GB of DDR4 registered ECC memory across eight 16 GB modules. It targets organizations running virtualization, database hosting, or file and application services.
16 DIMM slots supporting up to 1 TB of DDR4
Memory capacity is the decisive specification for this platform. The server populates eight of sixteen available slots, leaving room to scale to the maximum 1 TB limit using DDR4 2666 MHz registered ECC modules. Buyers who need more memory than 1 TB or who require a different memory generation should evaluate alternative platforms.
PERC H330 controller with eight 3.5-inch trays
The bundled PERC H330 storage controller enables RAID 0, 1, 5, 10, and 50 across eight hot-swap 3.5-inch SAS or SATA drive bays. No drives are included, so storage must be sourced separately. iDRAC9 Enterprise provides comprehensive remote management, while dual 750 W platinum power supplies and sliding rails complete the deployment kit.
Highlights
- Dual Xeon Silver 4114 CPUs deliver 20 cores at 2.2 GHz with 3.0 GHz turbo
- 128 GB DDR4 2666 MHz registered ECC memory across 8 slots for error-corrected capacity
- PERC H330 controller supports RAID 0, 1, 5, 10, 50 and pass-through for flexible storage
- Eight 3.5-inch SAS/SATA drive trays provide high-density internal expansion
- Dual 750 W 80+ Platinum hot-swap power supplies ensure redundant efficient operation
Specifications
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | R540 |
| Type | Rack |
| Rack Height | 2U |
| Redundant Hot-swap Power | Yes |
| CPU Type | Intel Xeon |
| CPU Speed | 2.20 GHz |
| CPU Socket | LGA 3647 |
| Number of CPU Cores | 10-Core Processor |
| CPU Features | Silver 4114 |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 128GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 1TB |
| Number of Memory Slots | 16 |
| Hard Drive (Installed) | None |
| Storage Controller | Dell Perc H330 Controller |
| HDD Interface | SATA/SAS |
| SSD (Installed) | No |
| Raid Level | RAID 0/1/5/10/50 |
| Ethernet Controller | 1x Dell EMC Integrated Dual Port Network Daughter Card - 2x 1 Gigabit RJ45 Ports, |
| Remote Management | Dell EMC 14G PowerEdge iDRAC 9 Enterprise License |
| LAN Ports | 2 x Ports |
| Management Port | RJ 45 |
| Operating System | No |
Questions about this item
How much work can the dual 10-core Xeon Silver 4114 CPUs at 2.2 GHz handle in a live workload?
The two 10-core Silver 4114 processors run at a base 2.2 GHz and can boost to 3.0 GHz, giving 20 cores and 40 threads for virtualization, databases or file serving.
What RAID levels and throughput does the PERC H330 controller support for the 3.5-inch drive bays?
The H330 12 Gb/s SAS/SATA controller provides RAID 0, 1, 5, 10 and 50 plus pass-through mode for up to eight 3.5-inch drives.
What rack-mount hardware is included for installing the 2U chassis?
The server ships with sliding rails and a front bezel for mounting in a standard 2U rack space.
