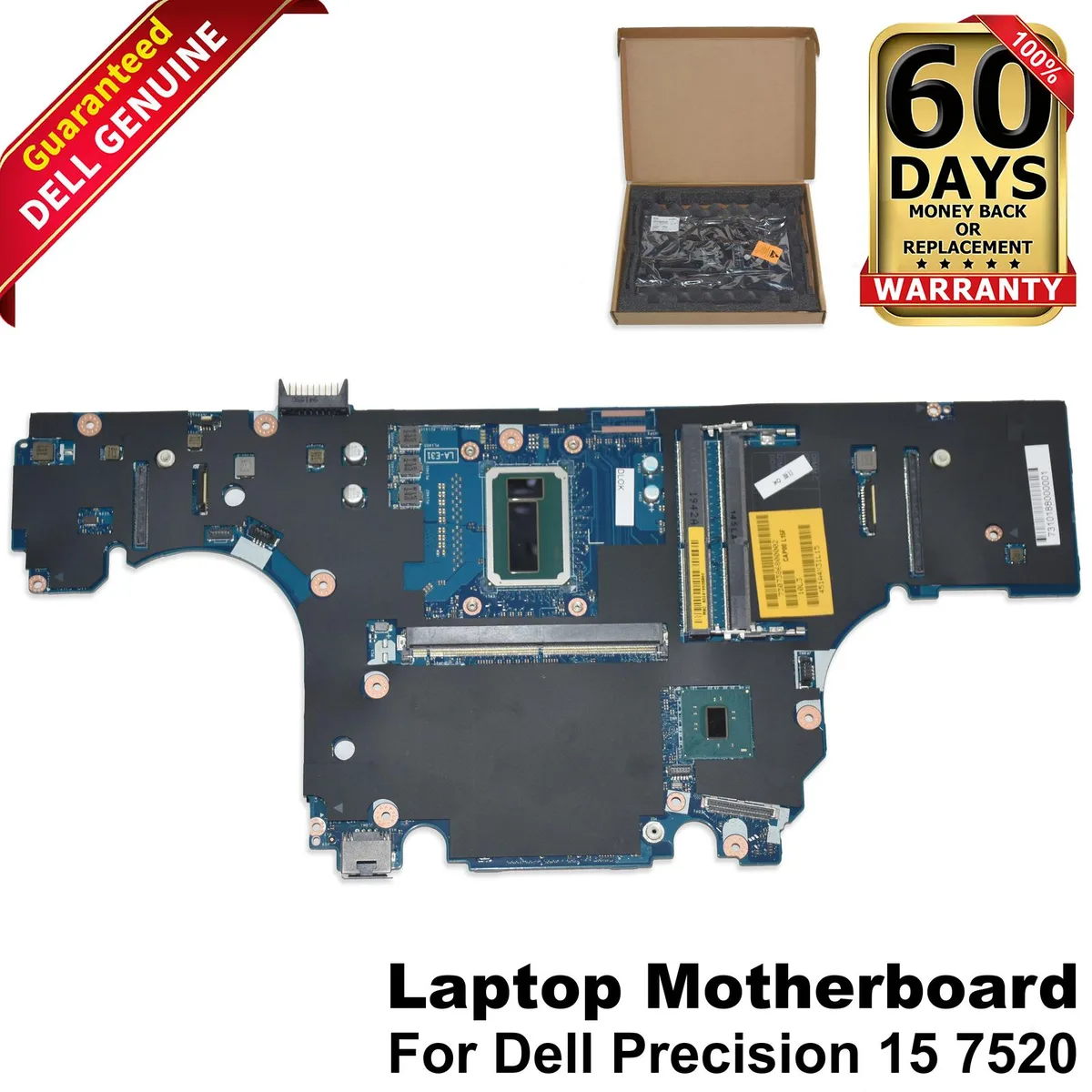

Green laptop motherboard with silver processor socket and four memory slots

DELL

DELL LA-E311P Precision 7520 motherboard accessory

SKU CH-BX6M-TAPGE MPN LA-E311P

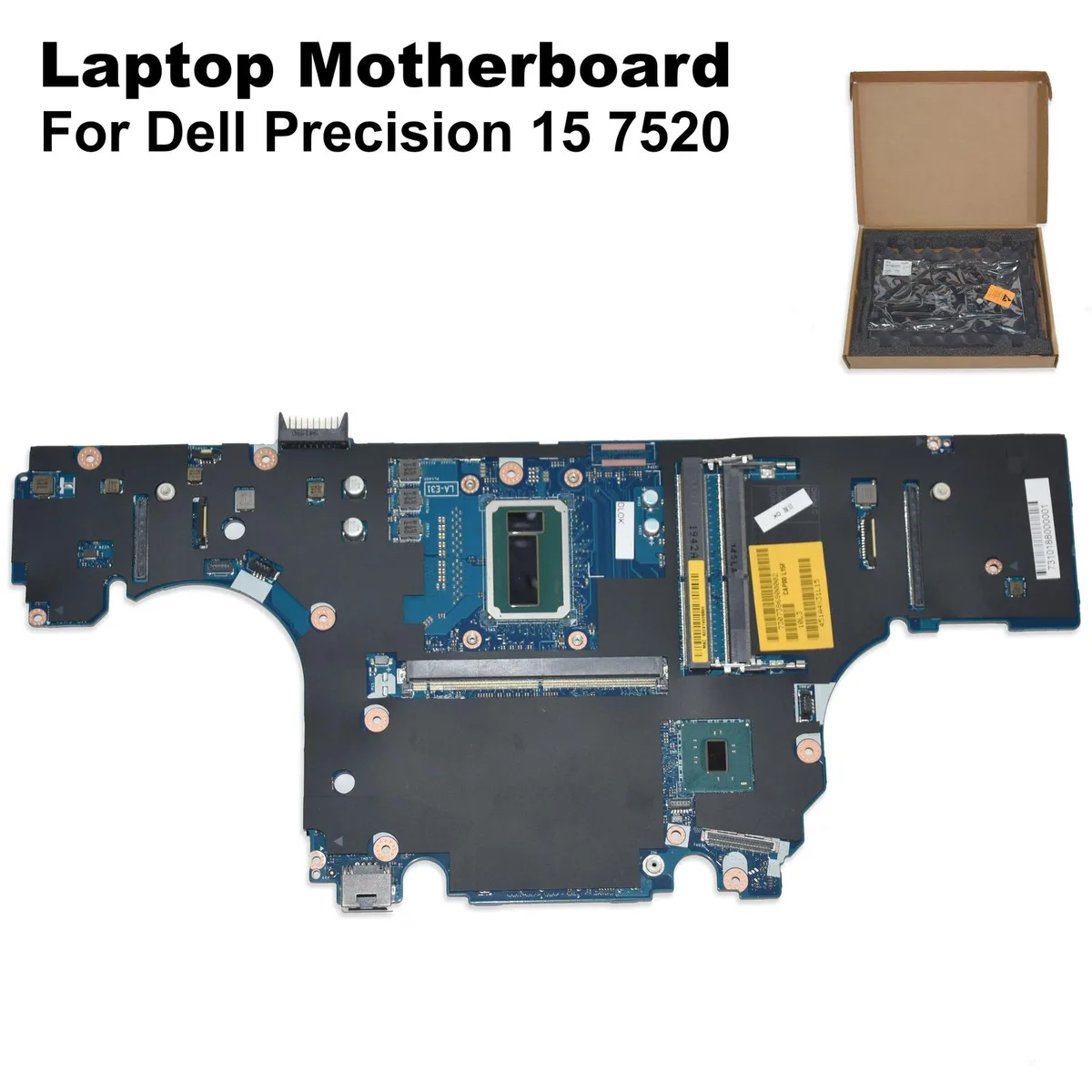

Replacement motherboard for Precision 7520 laptops with soldered Xeon E3-1545M v5 processor and four DDR4 slots supporting 64 GB

  • Intel Xeon E3-1545M v5 processor delivers workstation performance
  • 4 cores and 8 threads handle multi-threaded workloads
  • Base 2.9 GHz with turbo up to 3.80 GHz for demanding tasks
  • Supports up to 64 GB DDR4 memory across four slots
  • Intel CM236 chipset with integrated HD Graphics P530

Precision 7520 workstation board

This Dell Precision 7520 motherboard carries an Intel Xeon E3-1545M v5 processor soldered in a BGA1440 socket. The quad-core CPU runs at a 2.9 GHz base clock and reaches 3.80 GHz turbo with 8 MB L3 cache. It targets professionals replacing a failed board in a compatible 15-inch Precision chassis.

CM236 chipset and DDR4 layout

The Intel CM236 chipset provides four SODIMM slots supporting DDR4 memory up to 2400 MHz and a 64 GB maximum capacity. Integrated Intel HD Graphics P530 handles display output without a discrete GPU. The 45 W TDP matches the original thermal solution designed for the Precision 7520 enclosure.

Direct replacement for Precision 15 7520

The board includes the processor and chipset pre-assembled, so no separate CPU installation or firmware update is required. Buyers who need a different processor generation, a discrete graphics option, or a chassis other than the Precision 15 7520 cannot use this part.

Highlights

  • Intel Xeon E3-1545M v5 processor delivers workstation performance
  • 4 cores and 8 threads handle multi-threaded workloads
  • Base 2.9 GHz with turbo up to 3.80 GHz for demanding tasks
  • Supports up to 64 GB DDR4 memory across four slots
  • Intel CM236 chipset with integrated HD Graphics P530

Specifications

ModelPrecision 7520

Questions about this item

Does the Intel CM236 chipset on the LA-E311P support DDR4 memory at 2400 MHz?

Yes, the CM236 chipset paired with the Xeon E3-1545M v5 enables up to 64 GB of DDR4 across four SODIMM slots running at 2400 MHz.

What physical socket does the LA-E311P use for the processor, and what chassis is it built for?

The Xeon E3-1545M v5 is soldered in a BGA1440 socket, and the board is designed to fit the Dell Precision 15 7520 chassis.

What is the correct thermal preparation when fitting the LA-E311P into a Precision 7520?

Clean the old paste from the heatsink and CPU die, apply a thin even layer of new thermal compound, then torque the heatsink screws in a cross pattern to spec.
