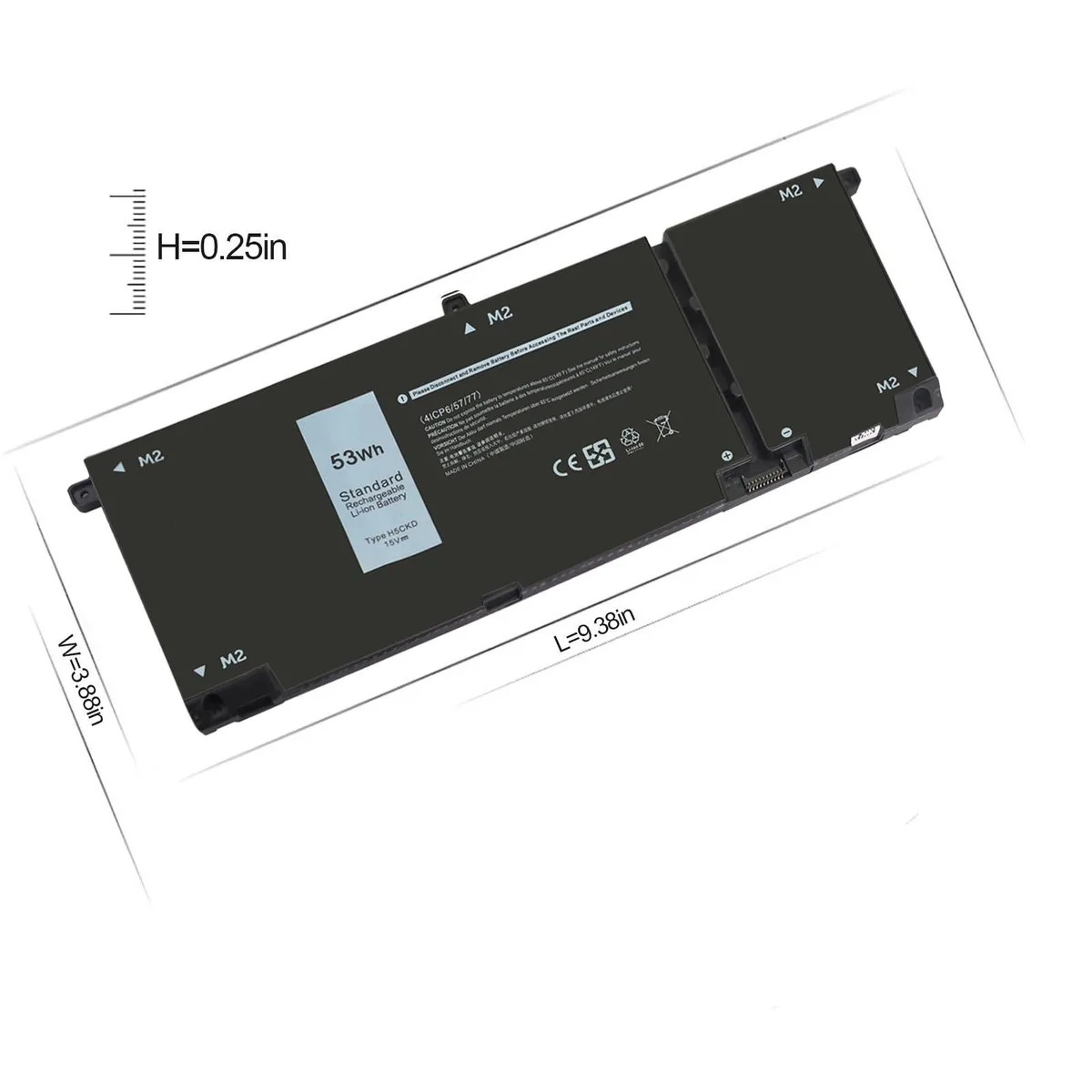

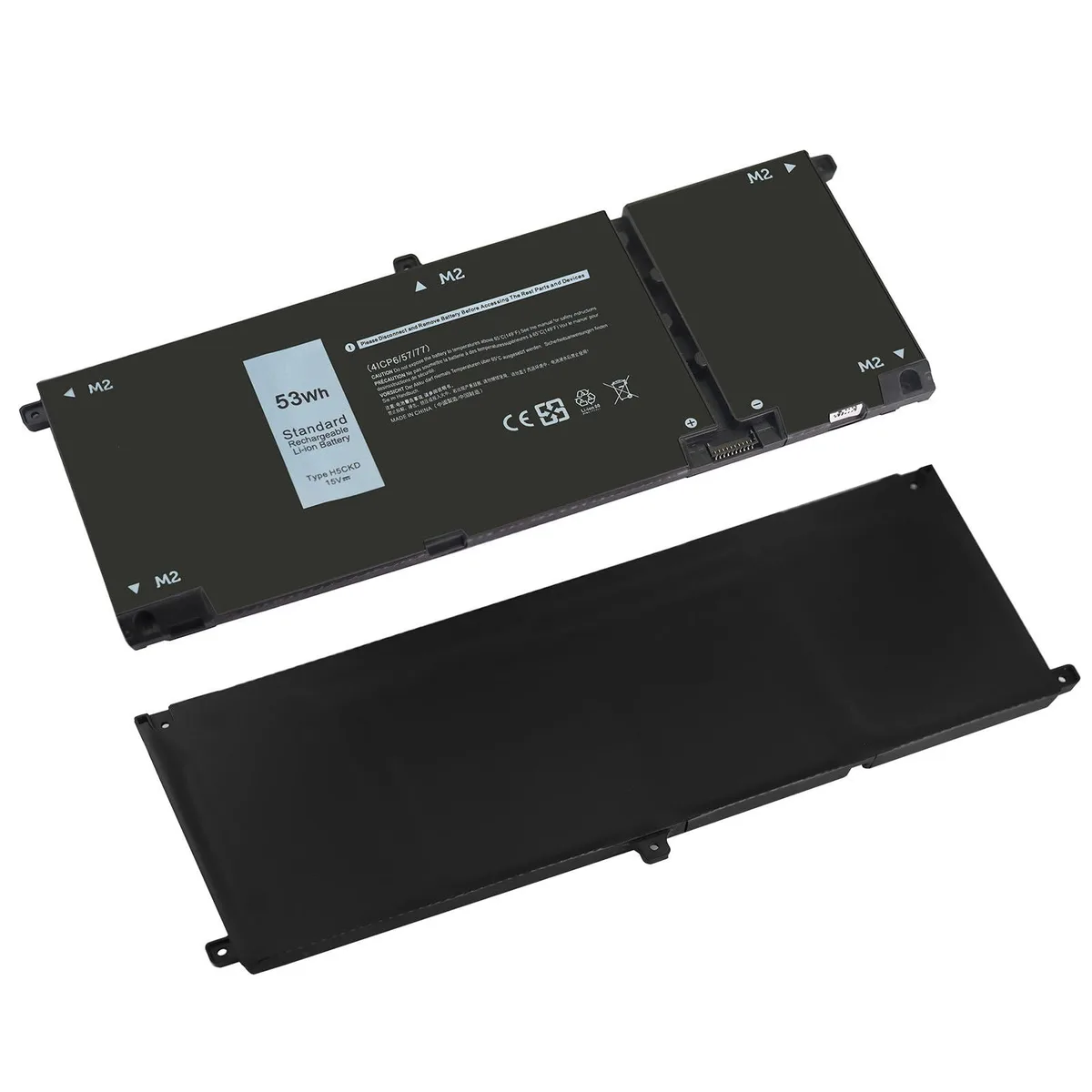

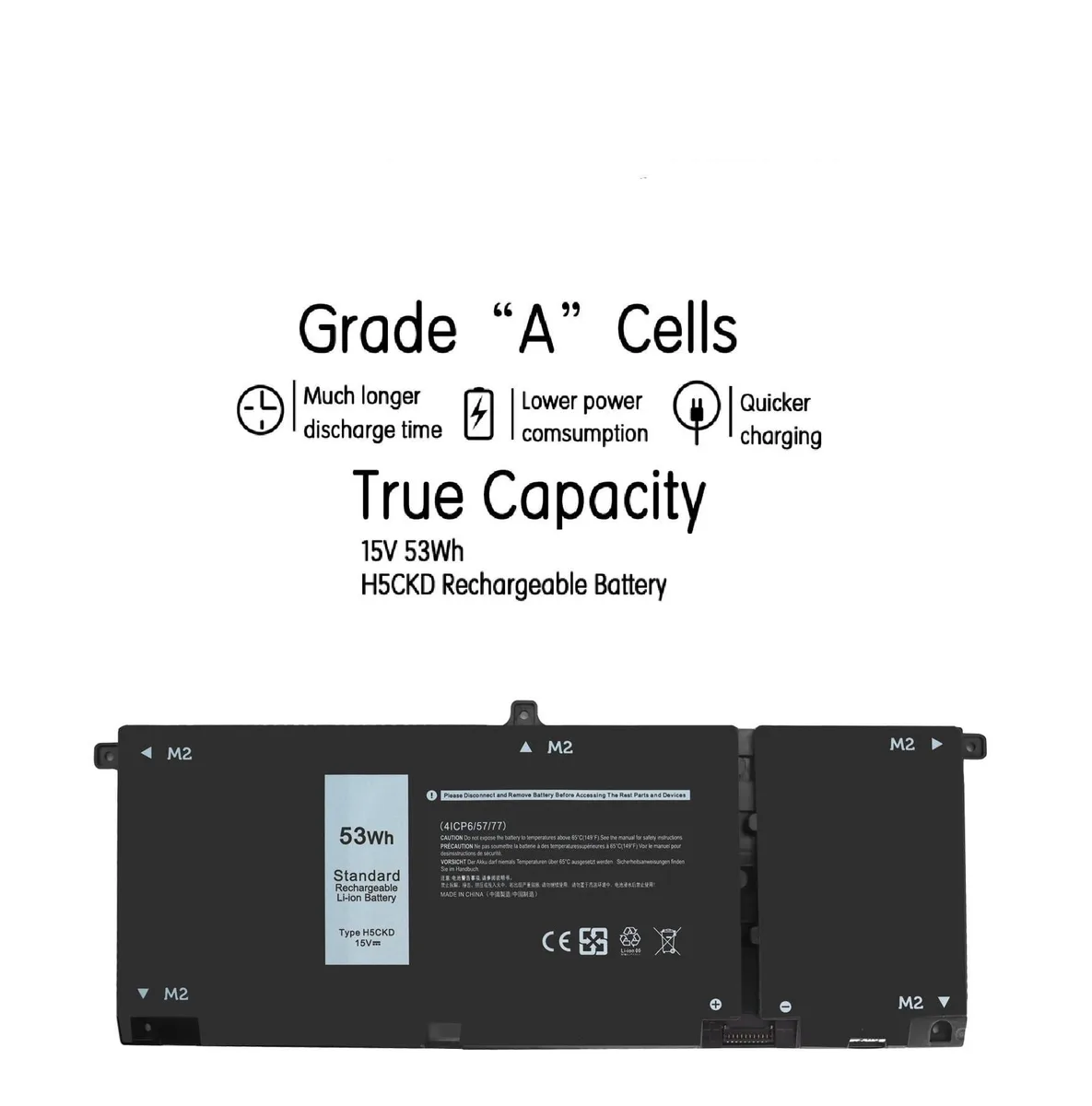

DELL H5CKD 53Wh Laptop Battery 15V 4-cell Li-ion
A 53Wh 15V 4-cell Li-ion replacement battery for select Dell Inspir-on, Latitude and Vostro models, supplied with two screwdrivers and fitting instructions
- TypeCharger
- CompatibilityCompatible 53Wh H5CKD 15V Battery Replacement for Dell Inspi
- FeaturesRechargeable, 3533 milliamp_hours, Compatible 53Wh H5CKD 15V
- Dimension14.33in W x 12.83in H x 9.06in D
- Weight8.3 ounces
- 53 Wh capacity powers Dell Latitude 3410 and 3510 through a full workday
- 15 V Li-ion chemistry with 4 cells matches original Dell H5CKD specification
- Overcharge, overdischarge, over-temperature and short-circuit protection safeguards the laptop
- Two screwdrivers and an instruction sheet enable straightforward self-installation
- Compatible with Inspiron 5400, 5406, 7300, 7306, 7500, 7506 2-in-1 Silver series
Direct replacement for listed Dell models
This 53Wh lithium-ion battery operates at 15V with four cells and a rated capacity of 3533 milliamp_hours. It matches part numbers H5CKD, 7T8CD, TXD03, 9077G, P129G and P101F across the compatible Dell Inspiron, Latitude and Vostro series. The pack is designed as a drop-in replacement for the original equipment.

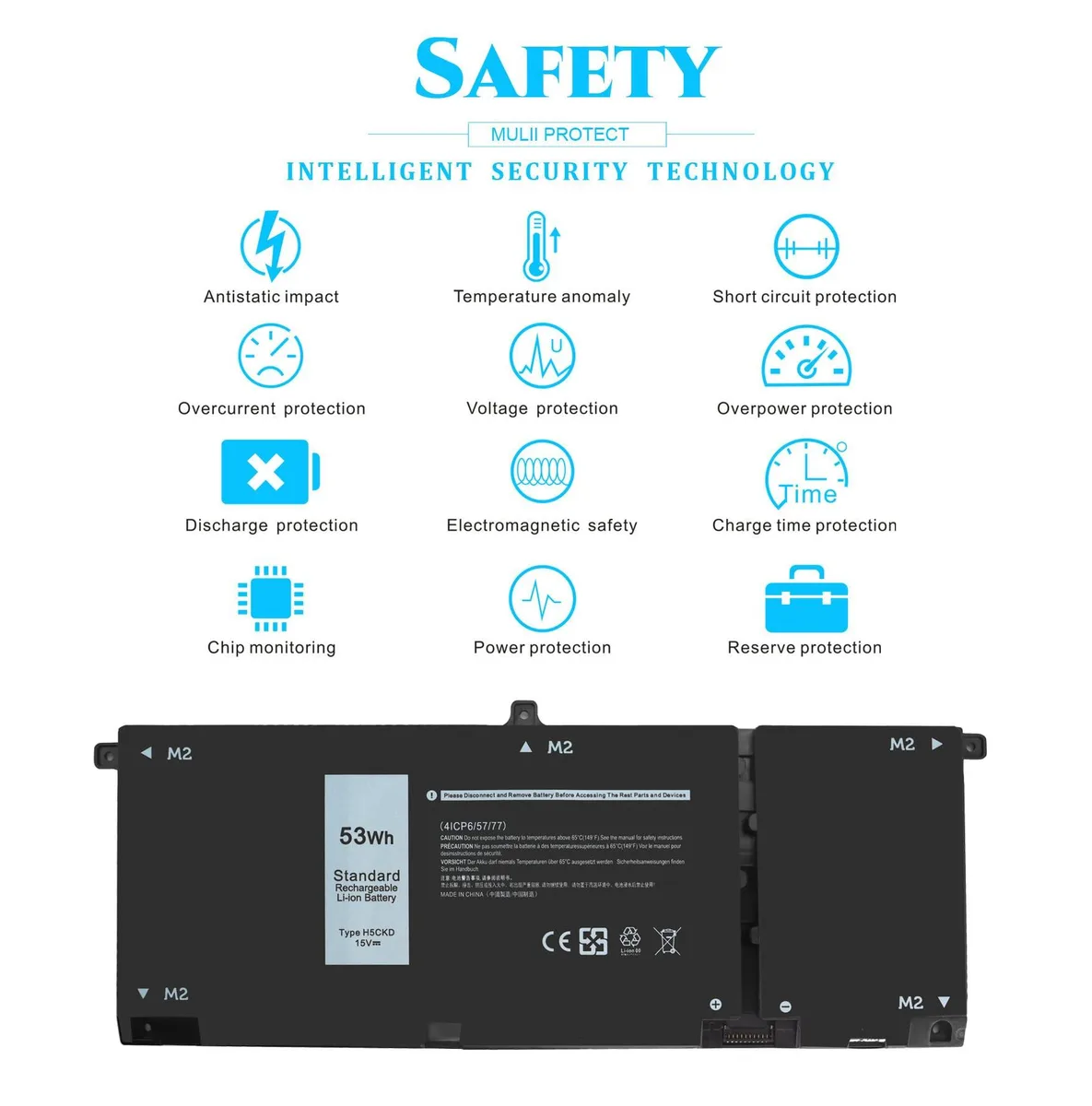

Protected circuit design for stable operation
Integrated protection guards against overcharge, overdischarge, over-temperature and short-circuit conditions during normal use. The manufacturer rates the cells for up to 500 recharge cycles over the life of the battery. No active cooling or fan is present, so thermal output remains passive.

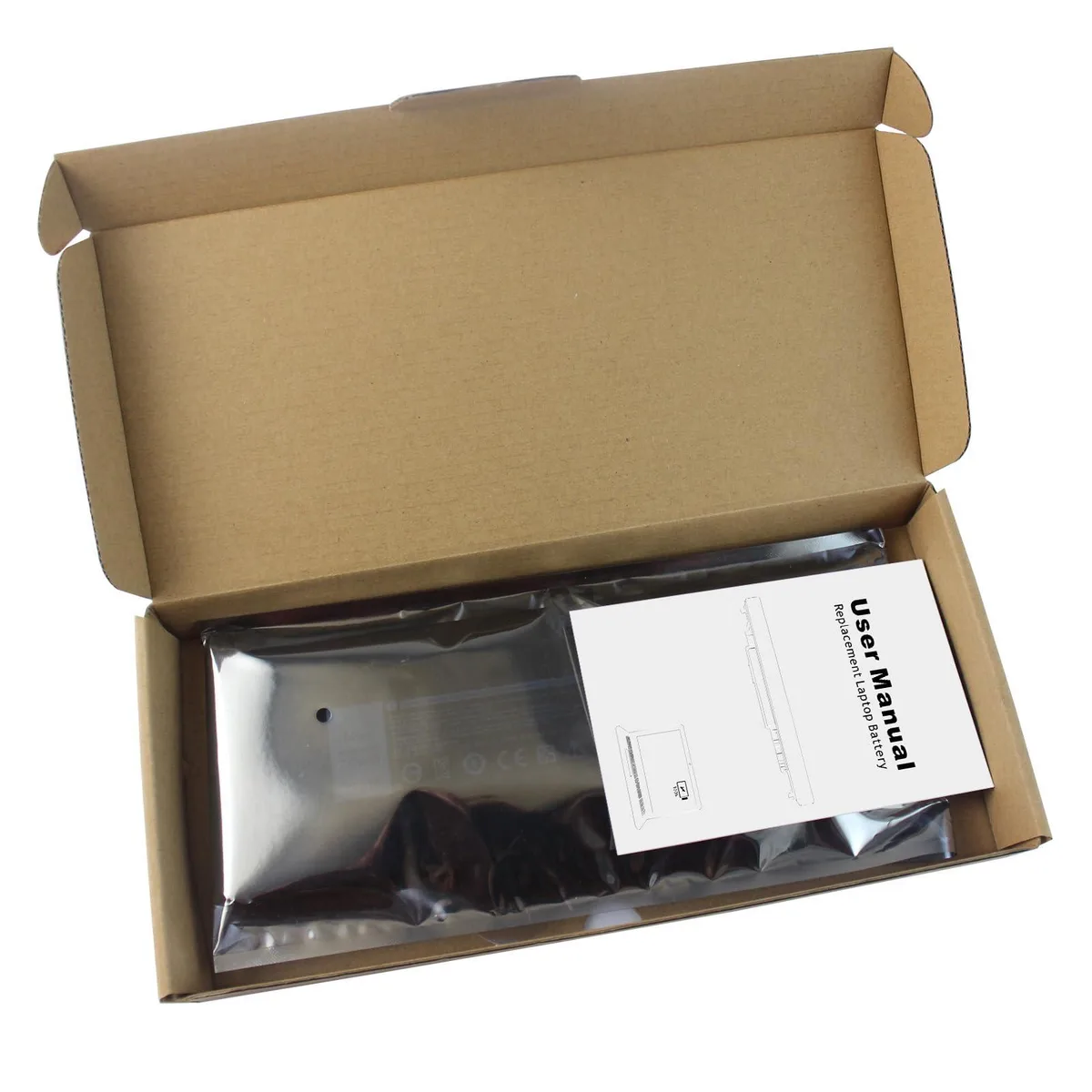

Two screwdrivers and an instruction sheet included
The retail package supplies one H5CKD battery, two screwdrivers to ease installation and a printed instruction guide for the 53Wh type. No additional cables, mounting brackets or software utilities are bundled. The accessories are limited to the physical fitting of the cell pack.
Highlights
- 53 Wh capacity powers Dell Latitude 3410 and 3510 through a full workday
- 15 V Li-ion chemistry with 4 cells matches original Dell H5CKD specification
- Overcharge, overdischarge, over-temperature and short-circuit protection safeguards the laptop
- Two screwdrivers and an instruction sheet enable straightforward self-installation
- Compatible with Inspiron 5400, 5406, 7300, 7306, 7500, 7506 2-in-1 Silver series
Specifications
| Brand | DELL |
|---|---|
| Model | H5CKD |
| Part Number | H5CKD |
| Type | Charger |
| Compatibility | Compatible 53Wh H5CKD 15V Battery Replacement for Dell Inspir-on 5400 5406 7405 7300 7306 7500 7506 2-in-1 Silver 5300 5301 5401 5402 5408 5409 5501 5502 5508 5509 Series Latitude 3410 3510 Vostro 5300 5301 7T8CD |
| Features | Rechargeable, 3533 milliamp_hours, Compatible 53Wh H5CKD 15V Battery Replacement for Dell Inspir-on 5400 5406 7405 7300 7306 7500 7506 2-in-1 Silver 5300 5301 5401 5402 5408 5409 5501 5502 5508 5509 Series Latitude 3410 3510 Vostro 5300 5301 7T8CD, Laptop |
| Dimension | 14.33in W x 12.83in H x 9.06in D |
| Weight | 8.3 ounces |
Questions about this item
How do I install the H5CKD 53Wh battery in my Dell Inspiron 7500 2-in-1, and what step do people often miss?
Remove the bottom case screws, disconnect the old battery connector, fit the new 4-cell 15V pack, reconnect the cable, then replace the case screws; the step often missed is disconnecting the battery connector before removing the old pack.
What maintenance or replacement will the H5CKD 53Wh battery need later?
The Li-ion pack is rated for up to 500 recharge cycles; after that capacity drops noticeably, so plan to replace the battery once runtime becomes too short for daily use.
What limit appears first during sustained use of the H5CKD 53Wh battery?
The 53Wh capacity and 3533 mAh rating set the runtime ceiling; under continuous load the battery will hit its energy limit before thermal protection activates.
