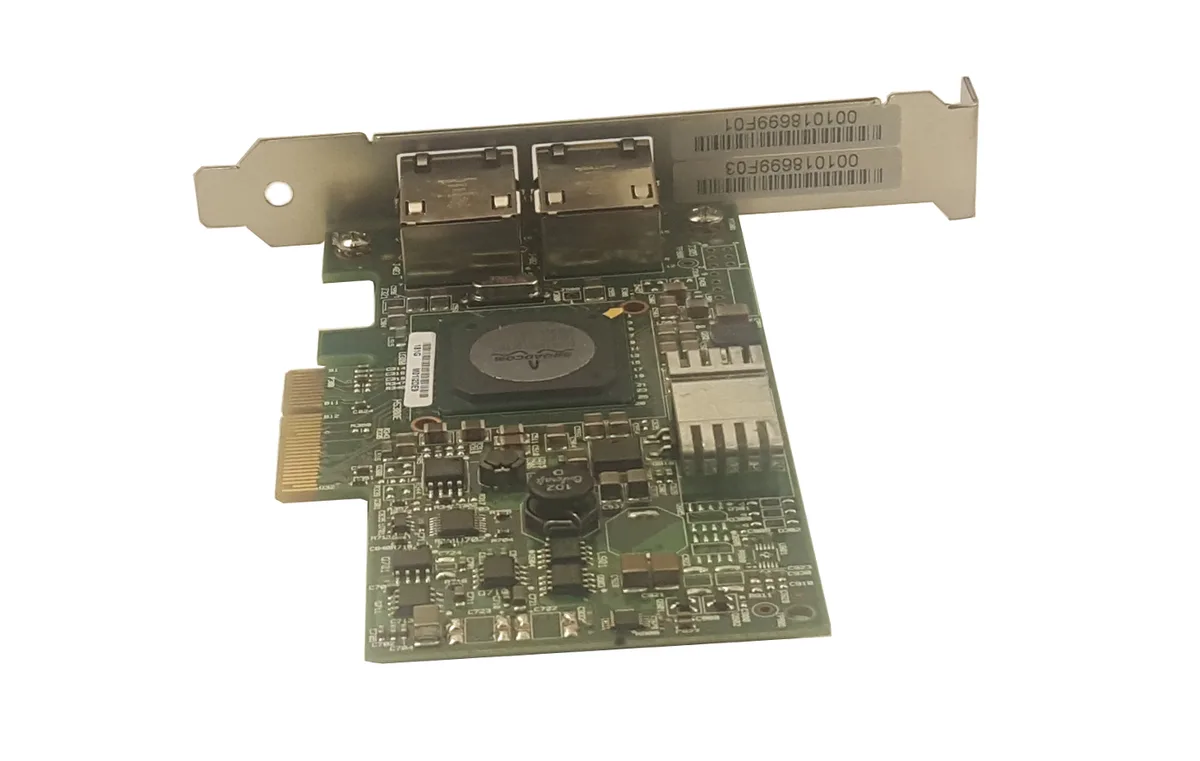

Full-height PCIe card with two RJ45 ports and silver bracket

DELL

DELL F169G Broadcom Dual Port Gigabit PCI-E Network Card Full Profile

SKU CH-VN6Y-DXCWB

Adds two Gigabit RJ45 ports over a PCI-Express x4 slot with driver support for Windows 32 and 64-bit, Linux 32 and 64-bit, VMware, MS-DOS and Oracle Solaris

  • StandardsF169G
  • Speed10/100/1000Mbps
  • Connectors2 x RJ45
  • InterfacePCI-Express
  • LEDsLink, Activity
  • DriversMicrosoft® Windows® (32-bit and 64-bit extended), Linux® (32
  • Dual RJ-45 ports double wired bandwidth
  • PCI Express x4 interface keeps throughput steady
  • 10/100/1000 Mbps auto-negotiation fits any switch
  • Checksum offload for TCP, IP, UDP frees CPU cycles
  • Broad driver support covers Windows, Linux, VMware, Solaris

Dual-Port Gigabit Server Adapter

The Dell F169G is a full-profile PCI Express network card that adds two RJ45 ports to a server or workstation. It supports 10, 100 and 1000 Mbps links and is compatible with Windows, Linux, VMware, MS-DOS and Oracle Solaris drivers. The card targets administrators who need redundant copper connections on a single x4 slot.

Sustained Load Behaviour

On-chip temperature monitoring and checksum offload for TCP, IP and UDP reduce host CPU utilisation during continuous traffic. I/O virtualisation support for VMware NetQueue and Microsoft VMQ keeps multiple virtual machines from contending for the same queue. Wake On LAN remains active so remote power-on works even after extended idle periods.

x4 PCI Express Interface Constraint

The card requires a physical x4 PCI Express slot; it will not fit in an x1 slot without a riser or open-ended bracket. Buyers whose chassis only provide x1 or proprietary slots cannot use this adapter. No other interface or form factor is supported by this part number.

Highlights

  • Dual RJ-45 ports double wired bandwidth
  • PCI Express x4 interface keeps throughput steady
  • 10/100/1000 Mbps auto-negotiation fits any switch
  • Checksum offload for TCP, IP, UDP frees CPU cycles
  • Broad driver support covers Windows, Linux, VMware, Solaris

Specifications

BrandDell
ModelF169G
StandardsF169G
Speed10/100/1000Mbps
Connectors2 x RJ45
InterfacePCI-Express
LEDsLink, Activity
DriversMicrosoft® Windows® (32-bit and 64-bit extended), Linux® (32-bit and 64-bit extended), VMware, MS-DOS, Oracle Solaris
Wake On LANYes
Featuresx4 PCI Express, I/O Virtualization support for VMware NetQueue and Microsoft VMQ, On-chip temperature monitor, PM Offload, TCP, IP, UDP checksum offload
Weight5LBS

Questions about this item

How much heat does the F169G produce when running continuously?

The card includes an on-chip temperature monitor so you can track thermal output during all-day operation.

What slot and driver support must my system provide for the F169G?

It requires an x4 PCI-Express slot and supports Windows 32-bit and 64-bit, Linux 32-bit and 64-bit, VMware, MS-DOS and Oracle Solaris.

Will the F169G work alongside an older 10/100 network card in the same server?

Yes, its dual RJ45 ports negotiate at 10, 100 or 1000 Mbps so it coexists with legacy 10/100 adapters on the same network.
