Silver rectangular SAS backplane circuit board with multiple connectors

DELL

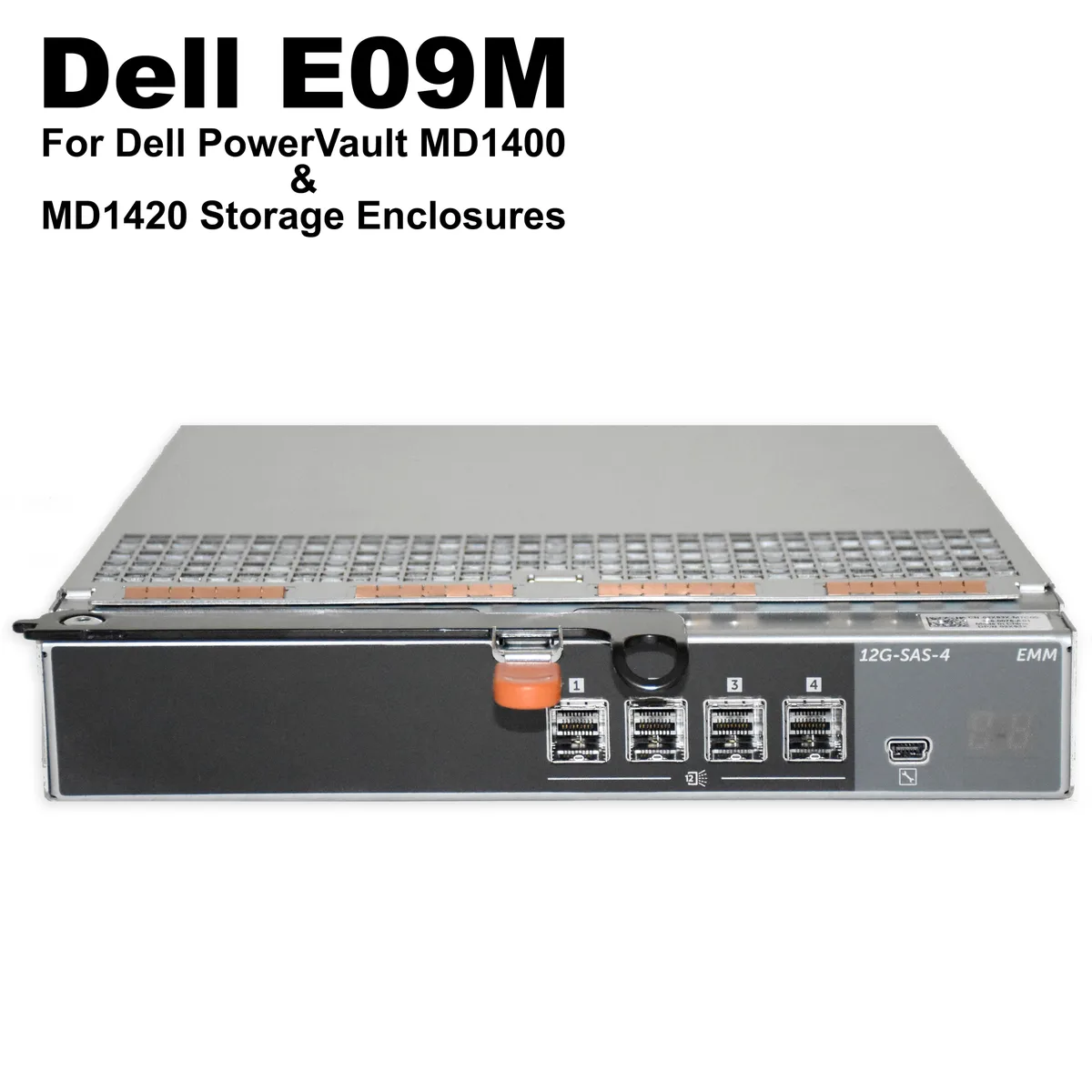

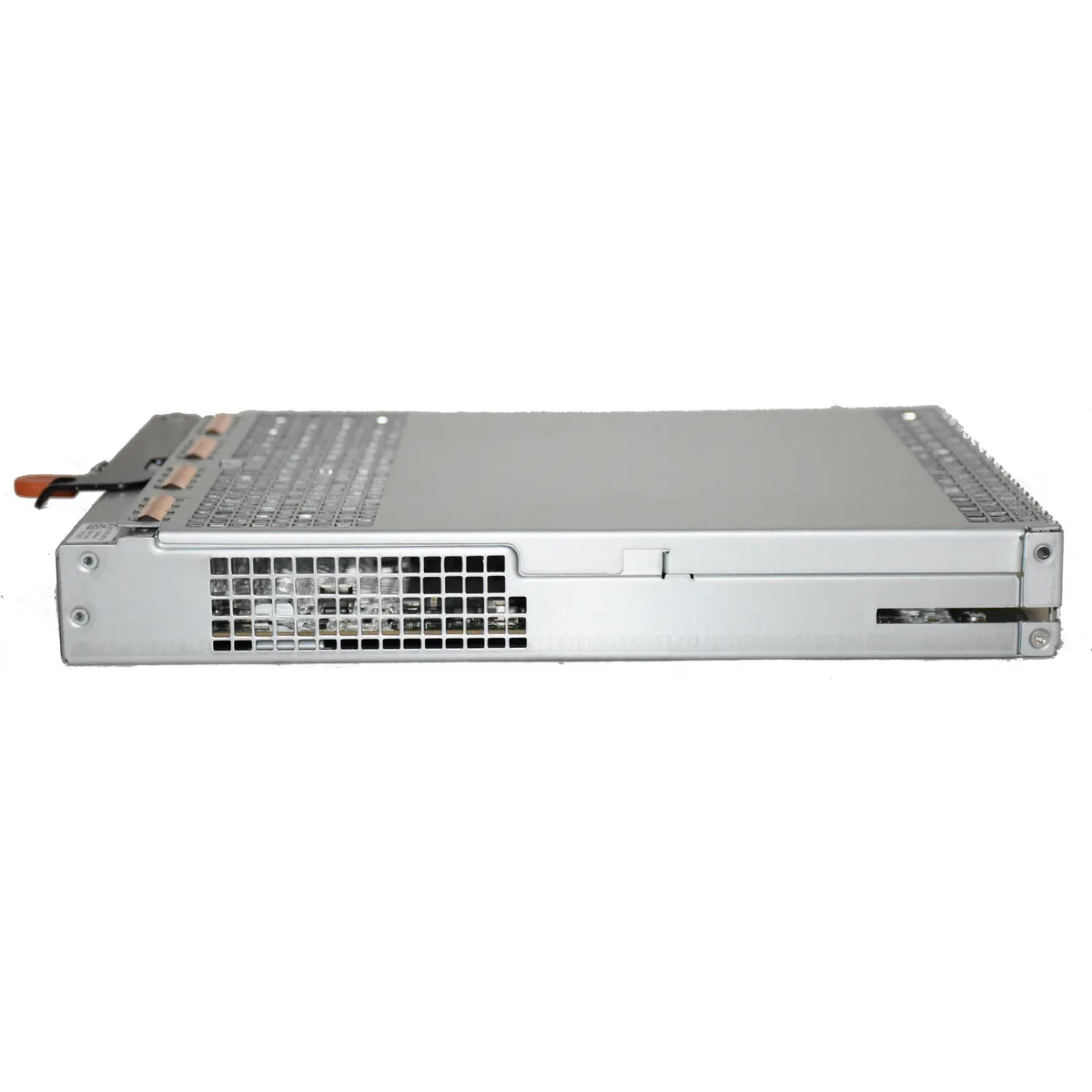

DELL E09M 2X93X SAS backplane for PowerVault MD1400 MD1420 laptop replacement part

SKU CH-56F1-WH7MH MPN E09M

A SAS backplane board providing 12Gb/s connectivity for Dell PowerVault MD1400 and MD1420 enclosures

  • Compatible ManufacturerFor Dell
  • Compatible ModelsFor Dell PowerVault MD1400, Dell PowerVault MD1420
  • ColorSilver
  • Genuine Dell OEM part for PowerVault MD1400 and MD1420 enclosures
  • SAS backplane enables high-speed drive-to-controller connectivity
  • 12Gb/s SAS throughput supports demanding storage workloads
  • Hot-swappable design allows drive replacement without system shutdown
  • Precision-engineered midplane ensures long-term reliability in enterprise environments

Compatible Enclosures

This Dell E09M SAS backplane is built for the PowerVault MD1400 and MD1420 storage enclosures. It restores the connection between drive bays and RAID controllers in those specific chassis. The part number 2X93X identifies the correct midplane assembly for service or replacement work.

Who Should Use This Part

IT teams maintaining Dell PowerVault MD1400 or MD1420 units can install this board to replace a failed midplane. It supports 12Gb/s SAS throughput for the drive population these enclosures accept. Buyers who need a backplane for a different Dell enclosure model or a non-Dell chassis should look at other parts.

Deciding Specification

The component type is a SAS backplane or midplane assembly engineered for 12Gb/s SAS data throughput. This single attribute determines whether the board matches the enclosure's signalling requirements. Verify the enclosure model and part number 2X93X before ordering.

Highlights

  • Genuine Dell OEM part for PowerVault MD1400 and MD1420 enclosures
  • SAS backplane enables high-speed drive-to-controller connectivity
  • 12Gb/s SAS throughput supports demanding storage workloads
  • Hot-swappable design allows drive replacement without system shutdown
  • Precision-engineered midplane ensures long-term reliability in enterprise environments

Specifications

BrandDell
ModelE09M
Part Number2X93X
Compatible ManufacturerFor Dell
Compatible ModelsFor Dell PowerVault MD1400, Dell PowerVault MD1420
ColorSilver

Questions about this item

Will this E09M backplane fit alongside the existing drive trays in my MD1400 enclosure?

The E09M midplane is engineered specifically for the Dell PowerVault MD1400 and MD1420 chassis, so it aligns with the original drive tray slots and SAS connectors.

How can I verify the 12Gb/s SAS link is active after installing the 2X93X board?

Check the enclosure management interface or RAID controller BIOS; each drive bay should report a 12Gb/s SAS negotiated speed with no errors.

Does the E09M unit ship with mounting screws or drive caddies, or must I order them separately?

The part is supplied as the bare SAS backplane assembly only; mounting hardware and drive caddies are reused from the enclosure or purchased separately.
