DELL
Dell E-Port Plus Advanced Port Replicator 331-6304 USB 3.0 Docking Station
A docking station for select Latitude E-Series notebooks adding DisplayPort, USB 3.0, eSATA, Ethernet and audio through a single proprietary connection
- ColorBlack
- CompatibilityLatitude E5440 Latitude E5540 Latitude E6440 Latitude E6540
- Ports SpecDisplay / video - DisplayPort - 20 pin DisplayPort SuperSpee
- FeaturesGenuine Dell E-Port Plus II Replicator PR02X Docking Station
- Dimension11.30" x 6.70" x 2.50"
- Weight2.30 lbs.
- Connect two external monitors via dual DisplayPort outputs
- Transfer files rapidly with two USB 3.0 Type-A ports
- Connect legacy storage through combined eSATA/USB 2.0 port
- Wired network access via built-in RJ-45 Ethernet jack
- Powers compatible Latitudes with included 130 W adapter

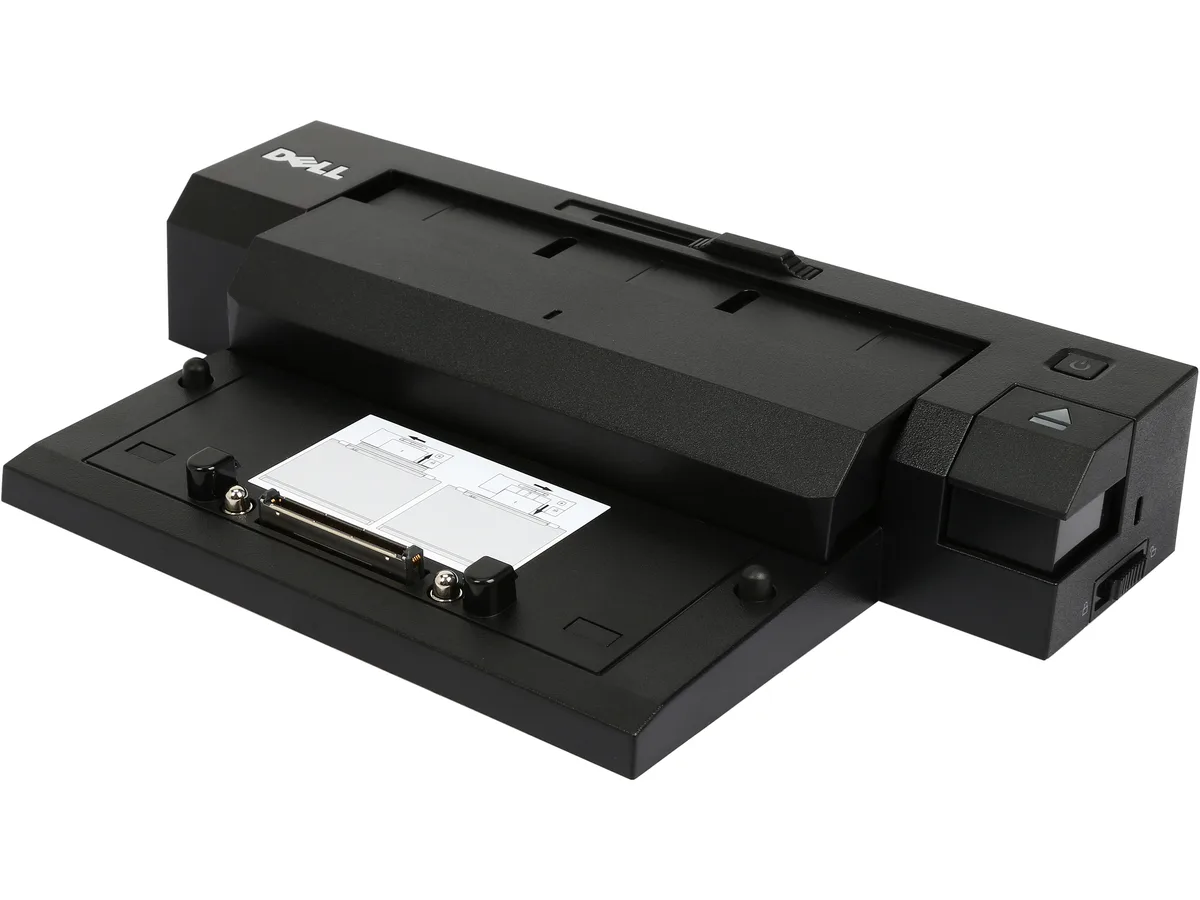

Dell E-Port Plus Advanced Port Replicator 331-6304
This docking station connects compatible Latitude E-Series notebooks through a proprietary interface to expand desktop connectivity. It is designed for professionals who need a single-cable solution for external displays, wired networking and legacy peripherals at a fixed workstation.
Proprietary host interface limits use to listed
The replicator only works with Latitude E5440, E5540, E6440, E6540, E7240 and E7440 notebooks. Buyers with other Dell series or non-Dell laptops cannot use this dock. The DisplayPort 1.2 output and USB 3.0 ports operate at the speeds defined by those standards through the proprietary connector.
Black chassis measures 11.30 x 6.70 x 2.50 inches

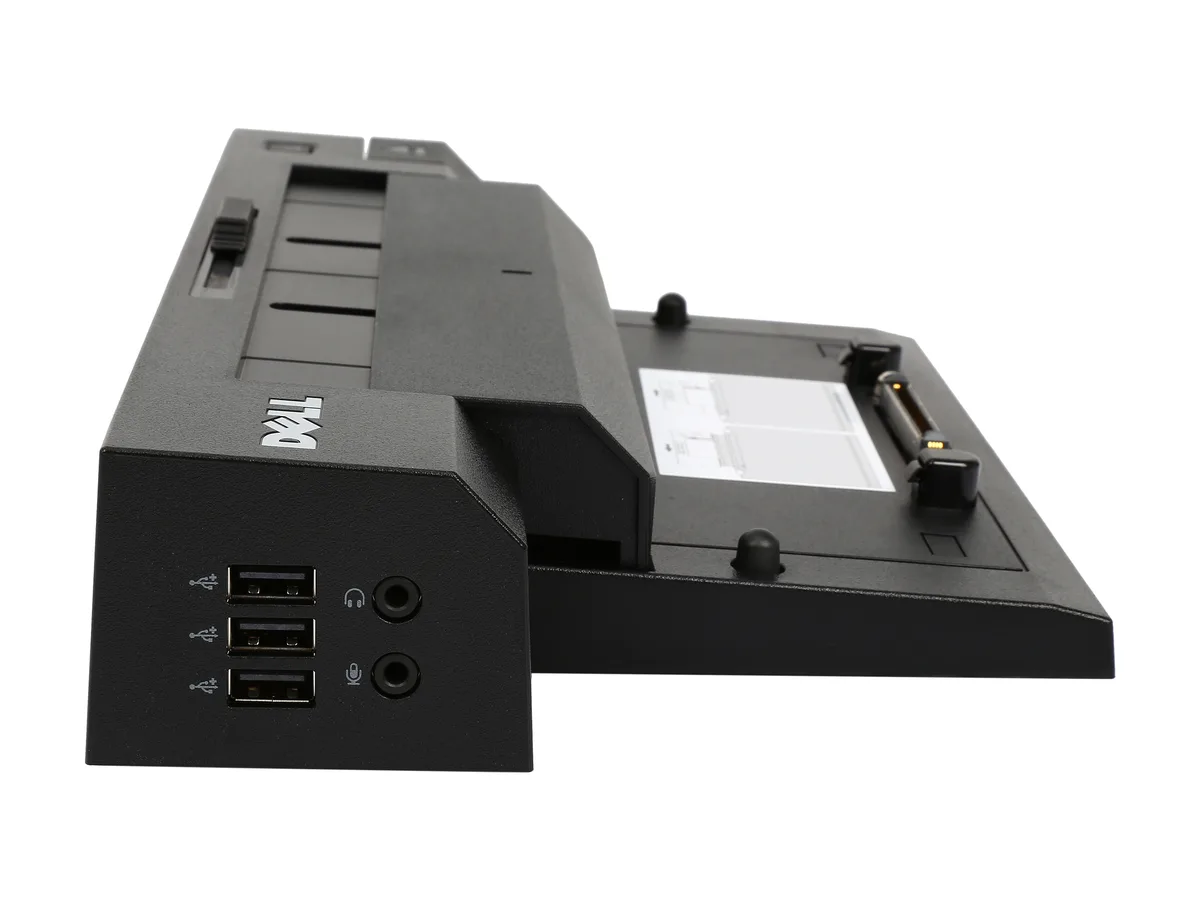

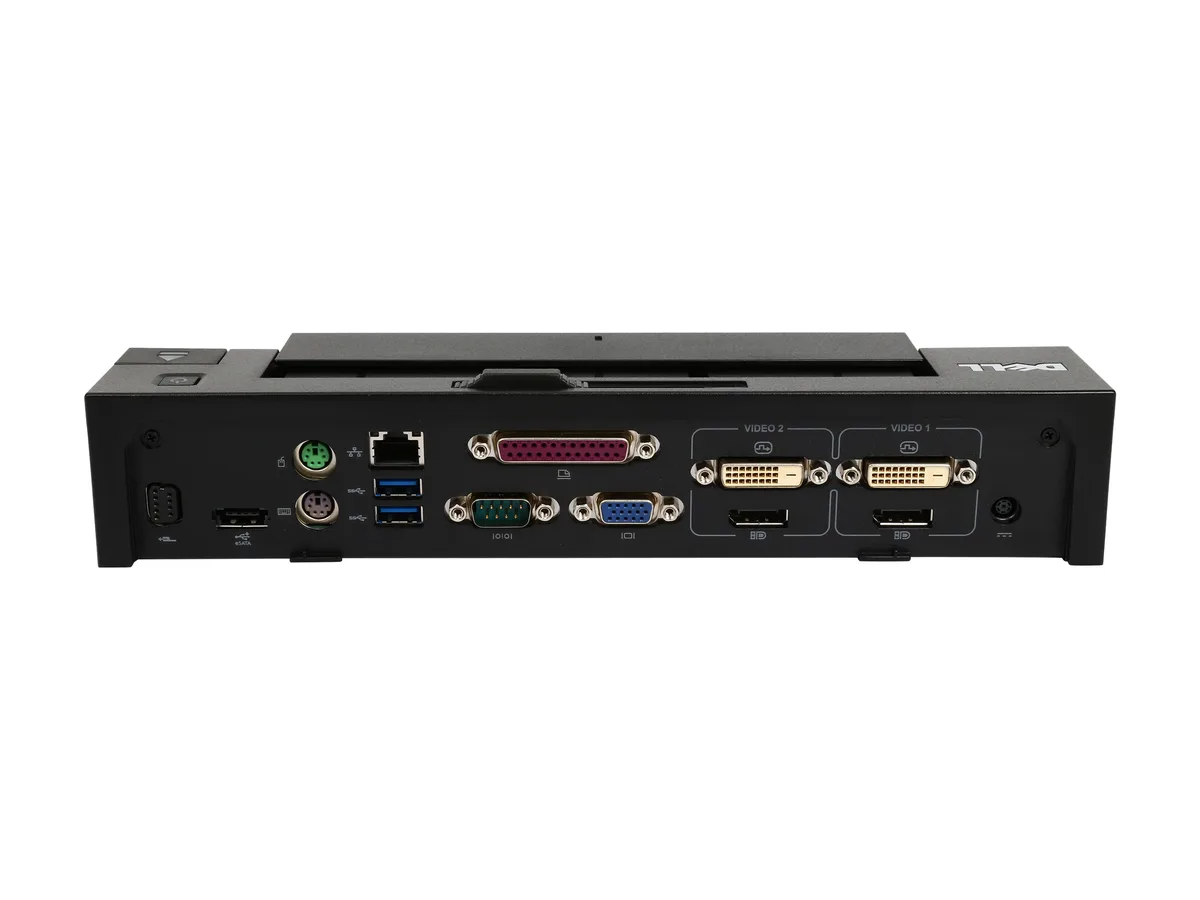

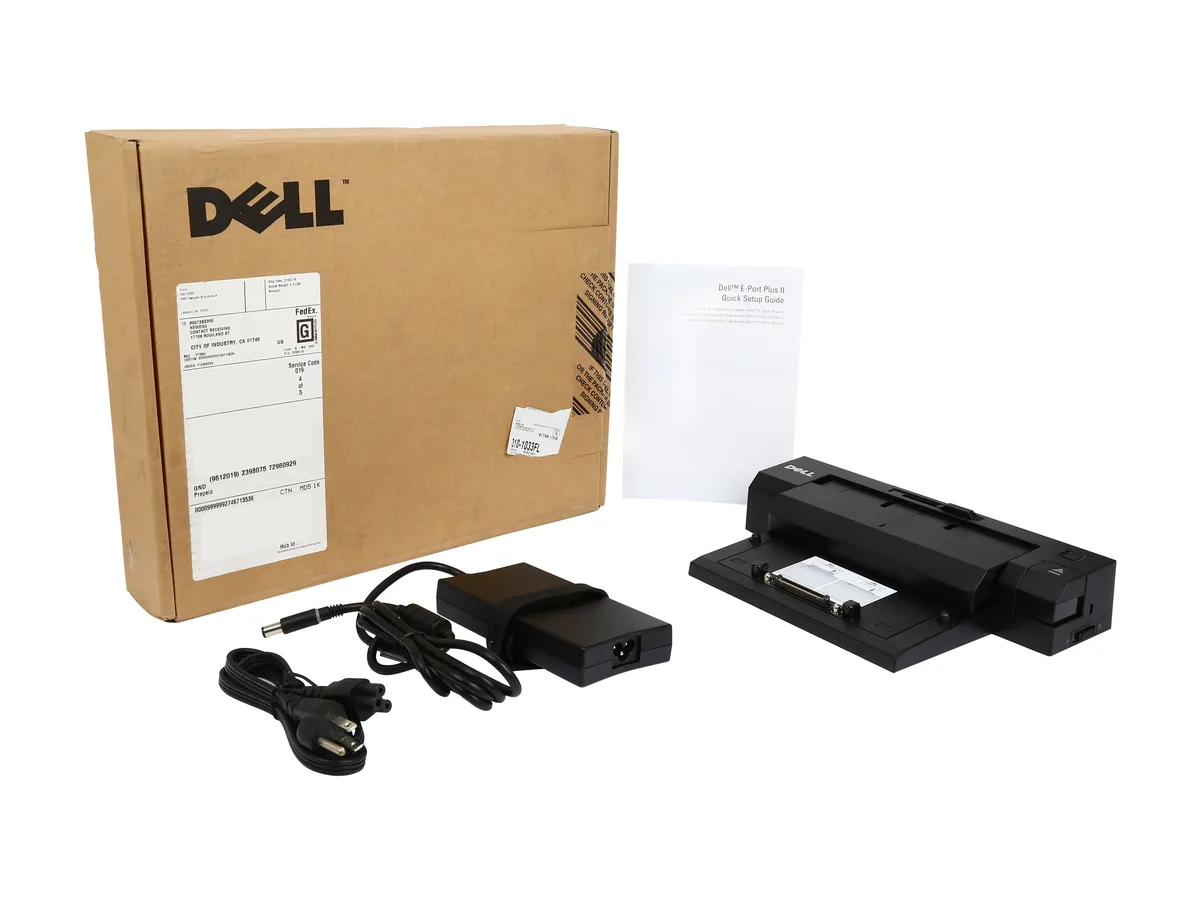

A 130 W power adapter is included to charge the host notebook while docked. Two USB 3.0 Type-A ports, three USB 2.0 ports, one eSATA/USB 2.0 combo port, DisplayPort, DVI, VGA, RJ-45 Ethernet, audio output and microphone input are arranged around the rear and sides for cable routing.
Highlights
- Connect two external monitors via dual DisplayPort outputs
- Transfer files rapidly with two USB 3.0 Type-A ports
- Connect legacy storage through combined eSATA/USB 2.0 port
- Wired network access via built-in RJ-45 Ethernet jack
- Powers compatible Latitudes with included 130 W adapter
Specifications
| Brand | Dell |
|---|---|
| Model | 331-6304 |
| Color | Black |
| Compatibility | Latitude E5440 Latitude E5540 Latitude E6440 Latitude E6540 Latitude E7240 Latitude E7440 |
| Ports Spec | Display / video - DisplayPort - 20 pin DisplayPort SuperSpeed USB 3.0 - 9 pin USB Type A eSATA / USB 2.0 - 11 pin USB/eSATA Network - Ethernet - RJ-45 Audio - output Microphone |
| Features | Genuine Dell E-Port Plus II Replicator PR02X Docking Station With USB 3.0 Port Replicator with 130W PA-4E Power Adapter E-Port Features:Update APR and SPR with USB 3.0 and DP 1.2, Gets innovative with quick USB 3.0 technology enabled by Intel in Ivy Bridge, Offers Adaptor complexity reduction, Adds the ability to daisy chain displays Ports: 5 x Hi-Speed USB - 4 PIN USB Type A USB 2.0 and USB 3.0 Support, 1 x eSATA / Hi-Speed USB, 2 x display / video - DVI-Digital - 24 pin digital DVI, 1 x display / video - VGA - 15 pin HD D-Sub (HD-15), 2 x display / video - 20 pin DisplayPort , 1 x |
| Dimension | 11.30" x 6.70" x 2.50" |
| Weight | 2.30 lbs. |
| Shipping weight | 2.11 kg |
| Package size | 389 × 323 × 71 mm |
Questions about this item
Which Dell Latitude models work with the 331-6304 replicator?
The unit supports Latitude E5440, E5540, E6440, E6540, E7240 and E7440 notebooks.
What does the 130 W power adapter do for a connected laptop?
It supplies up to 130 W to charge the notebook while the replicator drives video, USB and network ports.
What video standard does the DisplayPort connection use?
The 20-pin DisplayPort runs at DP 1.2, driving compatible external monitors.
