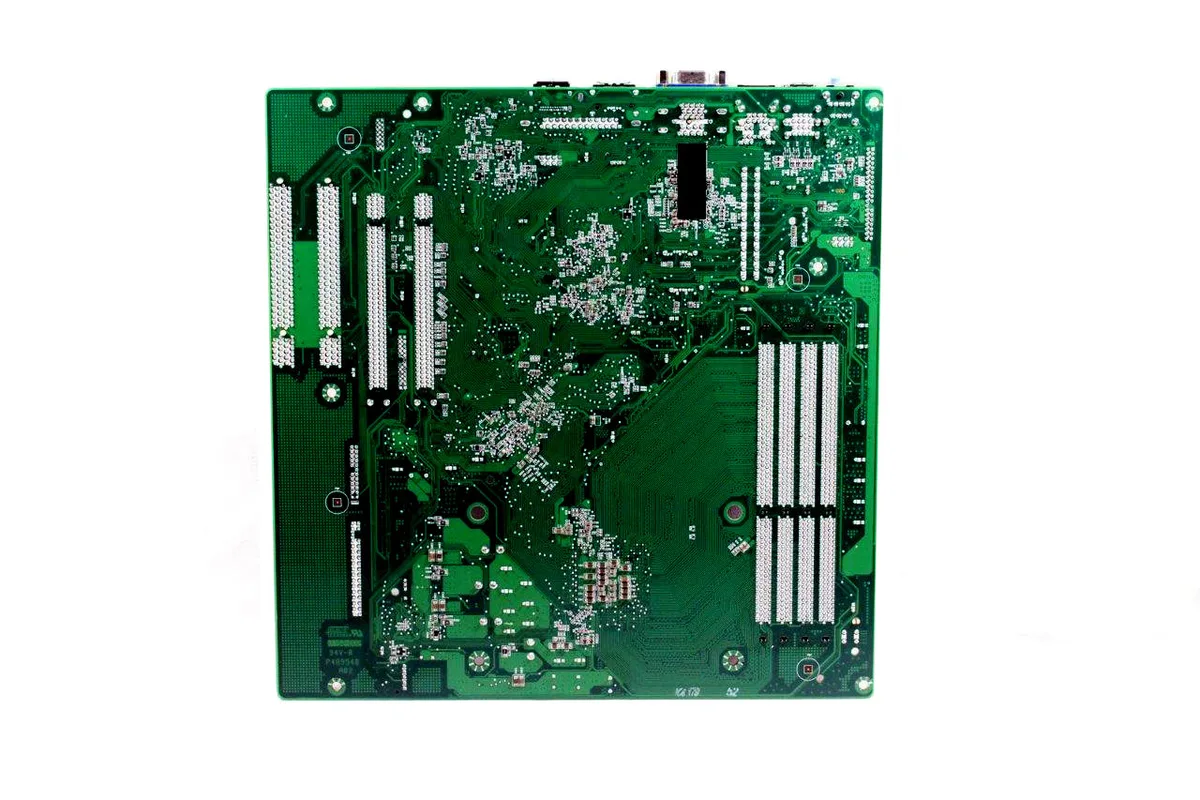

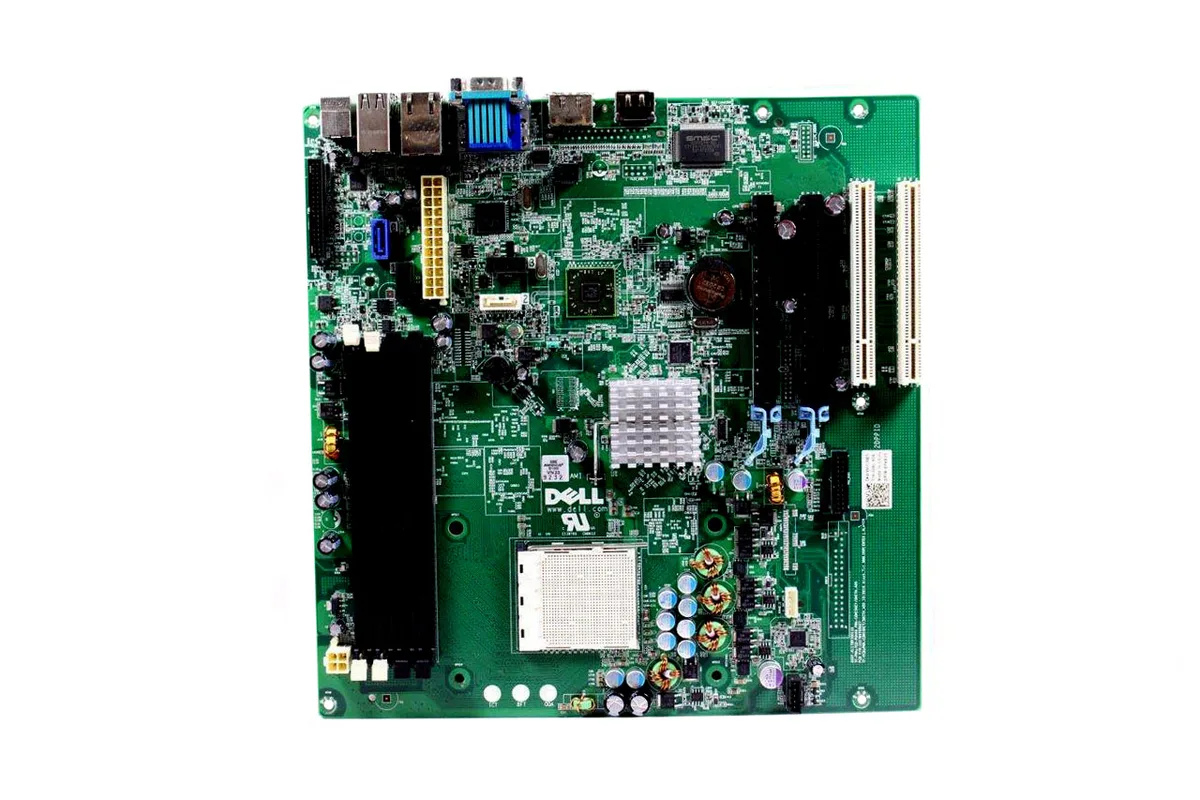

Green desktop motherboard with expansion slots and rear ports

DELL

DELL 7VX11 OptiPlex 580 Desktop Motherboard AMD 785G

SKU CH-AFVC-68FCJ

A Dell OptiPlex 580 desktop motherboard with AMD 785G chipset, 10/100/1000 Ethernet and eSata

  • Accessory TypeDesktop Motherboard
  • ColorGreen
  • Genuine Dell motherboard fits OptiPlex 580 desktops
  • AMD 785G chipset supports integrated graphics and expansion
  • 10/100/1000 Ethernet port provides wired network connectivity
  • 6 USB 2.0 ports connect multiple peripherals simultaneously
  • Low-profile PCIe x16 and PCI slots allow add-in cards

Genuine Dell OptiPlex 580 Motherboard

This genuine Dell 7VX11 motherboard is built for the OptiPlex 580 desktop using the AMD 785G chipset. It arrives new and includes only the board itself without a retail box. The green PCB provides a direct replacement for a failed or missing unit in that specific chassis. Buyers restoring or repairing an OptiPlex 580 will find the correct fit and firmware.

Verify Chassis Version and Mounting Points

Confirm your system is the OptiPlex 580 V2 revision because board revisions can differ in mounting holes and front-panel header layout. Check that the existing I/O shield matches the rear port cluster listed below. Ensure the power supply in the case delivers the correct ATX connector style used by this board. The low-profile expansion slots require matching low-profile cards.

Low-Profile Expansion and Legacy I/O

The board offers one low-profile PCIe x16 slot, a second low-profile PCIe x16 slot routed as x4, and one low-profile PCI slot for add-in cards. Rear connectivity includes six USB 2.0 ports, one VGA, one DisplayPort, one eSata, one RJ-45 Gigabit Ethernet, one parallel port, one serial port, and audio line-in and line-out jacks. This layout frees modern USB headers for front-panel use while keeping legacy ports available.

Highlights

  • Genuine Dell motherboard fits OptiPlex 580 desktops
  • AMD 785G chipset supports integrated graphics and expansion
  • 10/100/1000 Ethernet port provides wired network connectivity
  • 6 USB 2.0 ports connect multiple peripherals simultaneously
  • Low-profile PCIe x16 and PCI slots allow add-in cards

Specifications

BrandDELL
ModelCompatible Model: Dell OptiPlex 580
Part Number7VX11
Accessory TypeDesktop Motherboard
ColorGreen

Questions about this item

What comes with the Dell 7VX11 motherboard and what must be sourced separately?

The listing includes the desktop motherboard only; no retail box, CPU, memory, cooler, cables or I/O shield are supplied.

Which version of the OptiPlex 580 board should I choose for my chassis?

This is the V2 revision with AMD 785G chipset and part number 7VX11; verify the existing board carries the same part number before ordering.

What does the 10/100/1000 Ethernet port mean for daily use?

It provides a wired gigabit network connection at up to 1000 Mbps, compatible with standard home and office switches.
