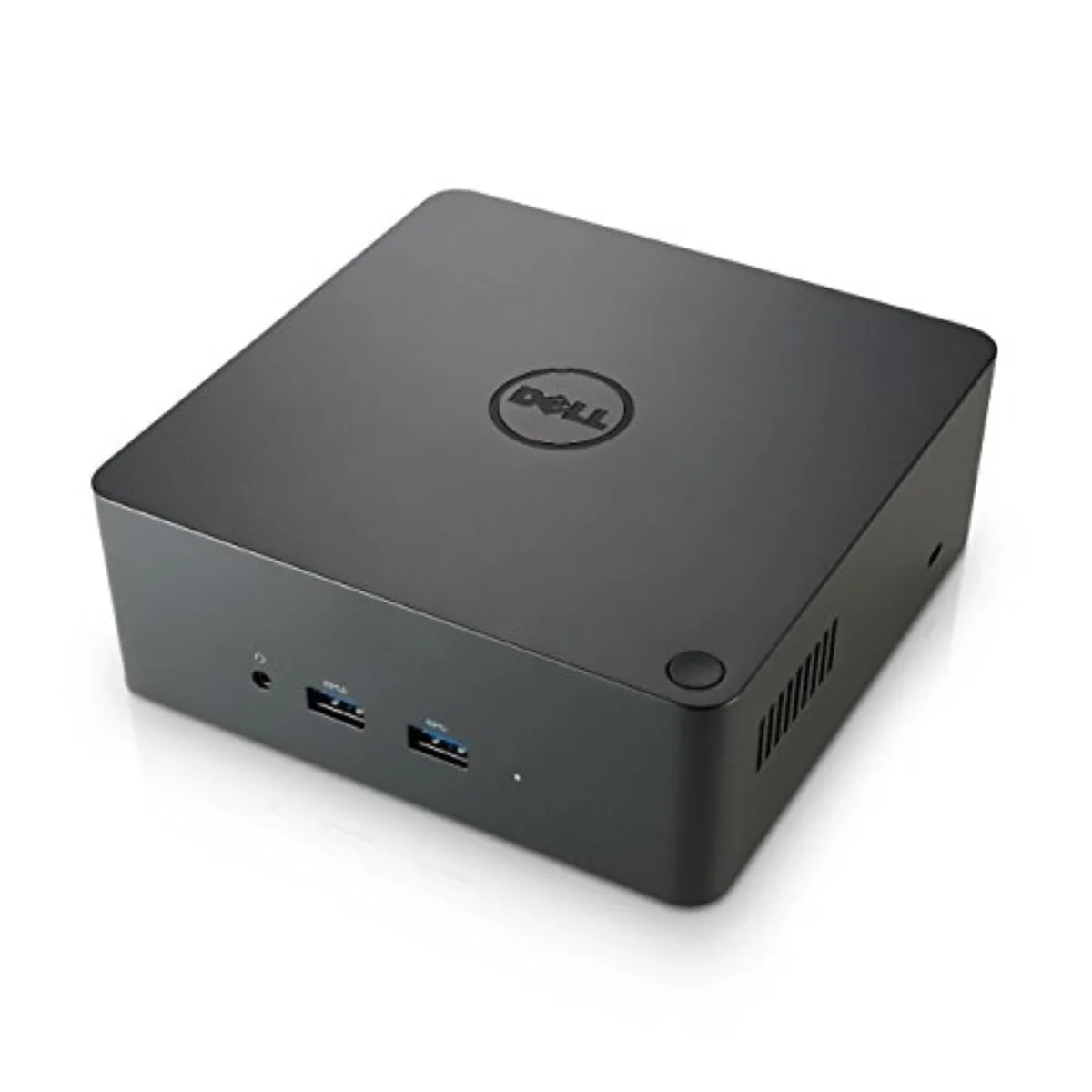

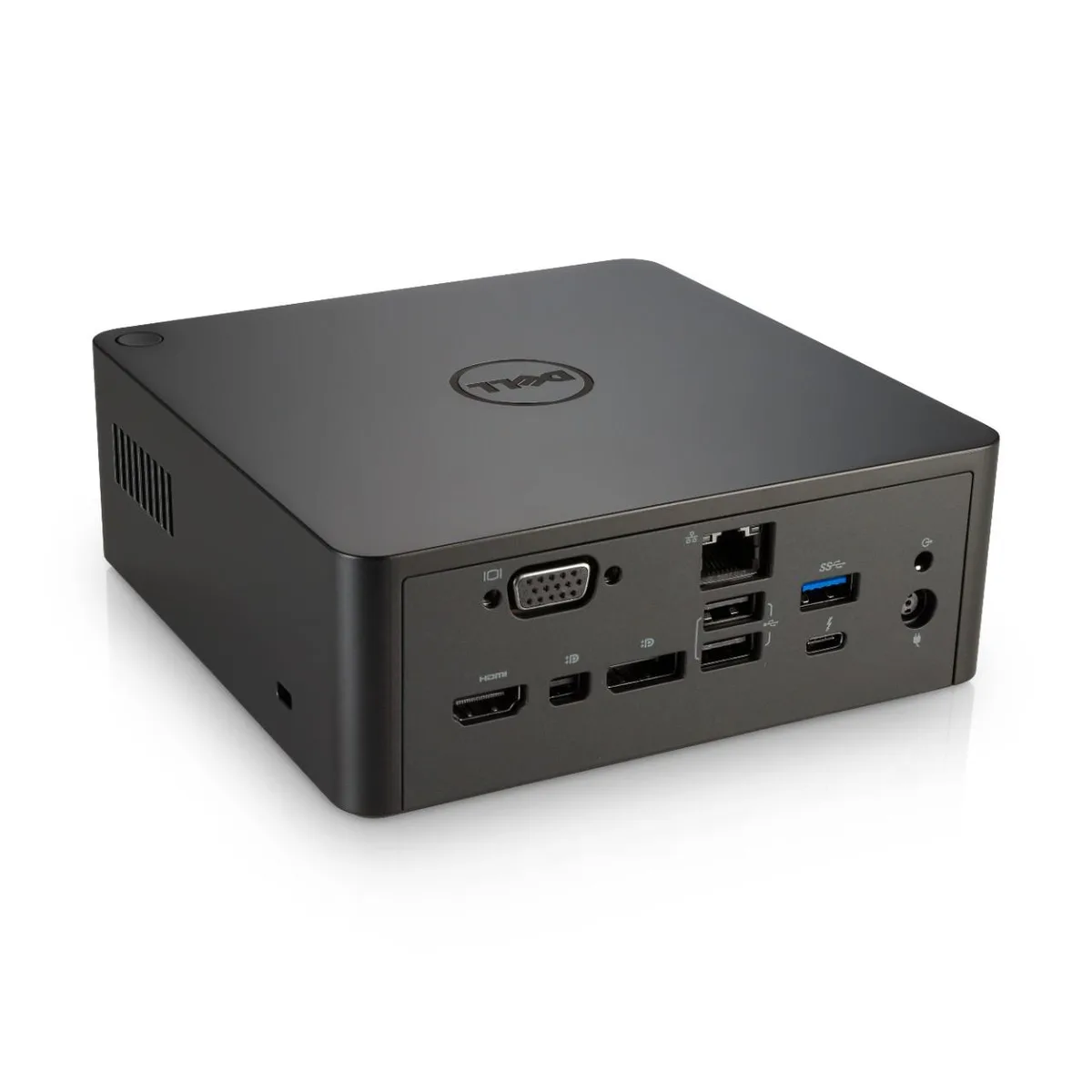

Black rectangular Dell TB16 docking station with 180W power adapter

DELL

DELL 5K5RK TB16 docking station 180W adapter

SKU CH-FRNZ-RE5SB MPN 5K5RK

A Thunderbolt 3 dock with 180W power supply, three SuperSpeed USB 3.0 ports, two USB 2.0 ports, HDMI, DisplayPort, VGA, mini DisplayPort, Gigabit Ethernet, audio jacks and Kensington lock slot

  • ColorBlack
  • CompatibilityOS Required Ubuntu Linux 14.04 SP1, Microsoft Windows 7 / 8
  • Ports Spec2 x USB 2.0 - 4 pin USB Type A 3 x SuperSpeed USB 3.0 - 9 pi
  • Dimension2.00" x 5.70" x 5.70"
  • Weight25.39 oz.
  • FeaturesOne dock. One cable. Ultimate Performance. The Dell Business
  • One cable handles data, video, audio and power via Thunderbolt 3
  • Connect up to three FHD displays or one 5K display at 60Hz
  • 180 W adapter powers the dock and delivers up to 60 W to the laptop
  • Three SuperSpeed USB 3.0 ports plus two USB 2.0 ports for peripherals
  • Gigabit Ethernet, HDMI, DisplayPort, VGA and audio jacks in one compact unit

Thunderbolt 3 docking station for Dell Latitude

The Dell TB16 docking station connects to compatible Latitude laptops through a single Thunderbolt 3 cable. It supports Ubuntu 14.04 SP1, Red Hat Enterprise Linux 7.2 and Microsoft Windows 7, 8, 8.1 and 10. Designed for models including the 7280, 7380, 7480, 7285, 5480, 5580, 5290 2-in-1, 7390 2-in-1, 7290, 7390, 7490, 5491 and 5591, it suits professionals who need a compact desk hub. Buyers with non-Dell laptops or devices lacking Thunderbolt 3 cannot use this dock.

Sustained throughput and multi-display output

Thunderbolt 3 delivers up to 40Gbps bandwidth for continuous data transfers such as video-editing files. The 180W adapter powers the dock while supplying up to 60W to the host laptop over the same cable. Video outputs drive up to three FHD displays, two 4K displays or one 5K display at 60Hz without throttling. Users who require more than three simultaneous screens or higher refresh rates at 5K will find the dock insufficient.

180W power adapter with 7.4mm DC input

The included 180W power supply uses a 7.4mm DC-IN connector to feed the dock and provide up to 60W laptop charging via Thunderbolt 3. Laptops that demand more than 60W for operation under load will not charge fully while docked. Buyers needing higher host power delivery or a different DC barrel size must choose another solution.

Highlights

  • One cable handles data, video, audio and power via Thunderbolt 3
  • Connect up to three FHD displays or one 5K display at 60Hz
  • 180 W adapter powers the dock and delivers up to 60 W to the laptop
  • Three SuperSpeed USB 3.0 ports plus two USB 2.0 ports for peripherals
  • Gigabit Ethernet, HDMI, DisplayPort, VGA and audio jacks in one compact unit

Specifications

BrandDell
Model5K5RK
ColorBlack
CompatibilityOS Required
Ubuntu Linux 14.04 SP1, Microsoft Windows 7 / 8 / 8.1 / 10, Red Hat Enterprise Linux 7.2
Designed For
Latitude 7280, 7380, 7480, 7285, 5480, 5580, 5290 2-in-1, 7390 2-in-1, 7290, 7390, 7490, 5491, 5591
Precision 3520, 7520, 7720, 5520, 3530, 5530, 7530, 7730, 5530 2-in-1
XPS 9560, 9360, 9365, 9360, 9575, 9370, 9570

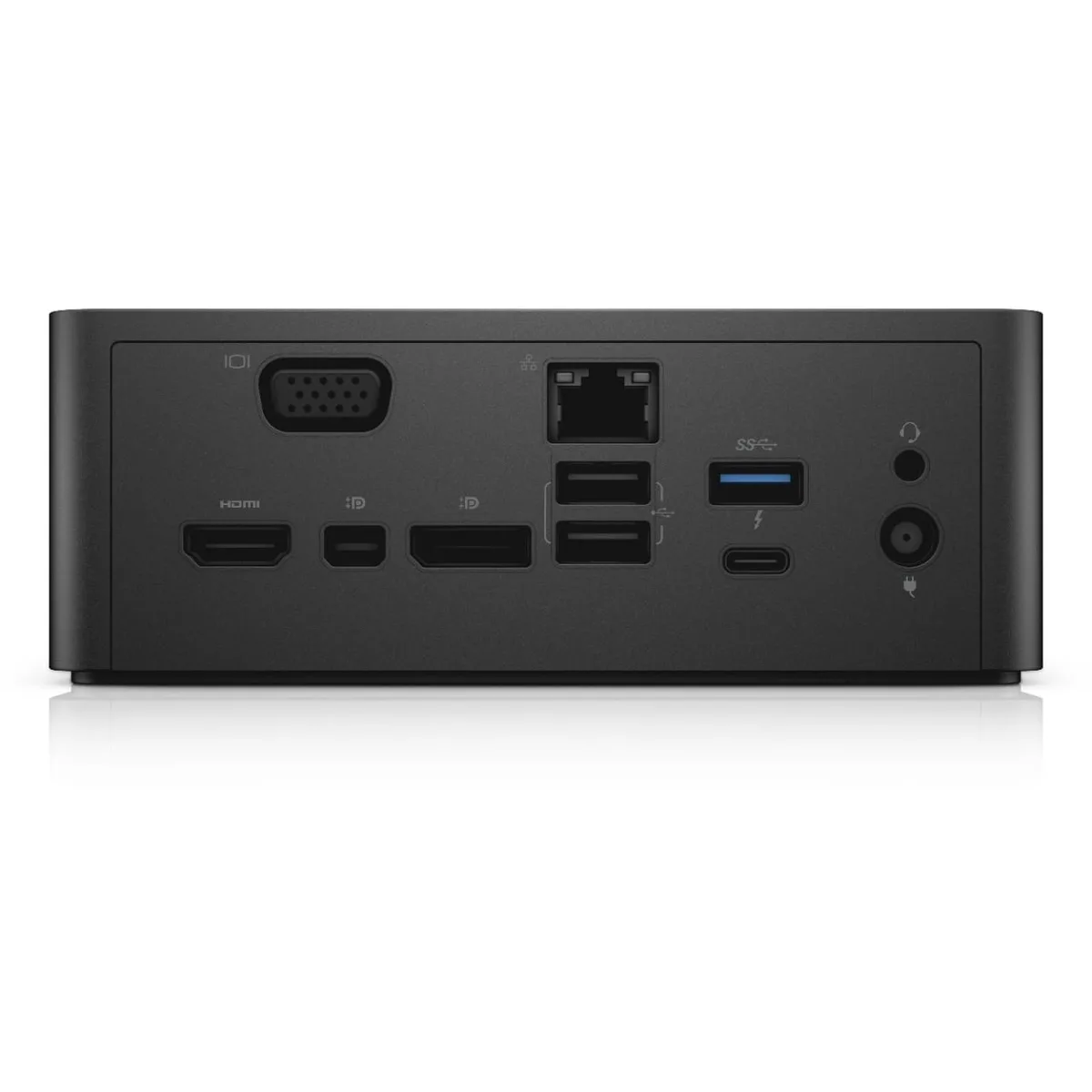

Ports Spec2 x USB 2.0 - 4 pin USB Type A
3 x SuperSpeed USB 3.0 - 9 pin USB Type A
1 x display / video - HDMI - 19 pin HDMI Type A
1 x display / video - DisplayPort - 20 pin DisplayPort
1 x network - RJ-45
1 x headset - output - mini-phone 3.5 mm
1 x speakers - output - mini-phone 3.5 mm
1 x video - VGA - 15 pin D-Sub (DB-15)
1 x Thunderbolt 3 - Thunderbolt - 24 pin USB-C
1 x display / video - DisplayPort - Mini DisplayPort
Dimension2.00" x 5.70" x 5.70"
Weight25.39 oz.
FeaturesOne dock. One cable. Ultimate Performance.
The Dell Business Thunderbolt Dock - TB16 with 180W Adapter with Intel Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.
Small footprint and big flexibility
The Dell Business Thunderbolt Dock - TB16 with 180W Adapter is small in size-just 5.7 x 5.7 x 2 inches (145 x 14
Shipping weight1.99 kg
Package size269 × 196 × 145 mm

Questions about this item

How much power does the 180W adapter deliver to a laptop over the Thunderbolt 3 port?

The 180W adapter powers the dock and provides up to 60W of power delivery through the Thunderbolt 3 port to charge a connected laptop.

Which video ports on the TB16 require a laptop with Thunderbolt 3 to function?

All video outputs — HDMI, DisplayPort, Mini DisplayPort and VGA — require a host laptop equipped with a Thunderbolt 3 port and compatible graphics.

Will the TB16 dock work with a Latitude 7480 running Windows 10?

Yes, the Latitude 7480 is listed among the designed-for models and Windows 10 is a supported operating system for this dock.
