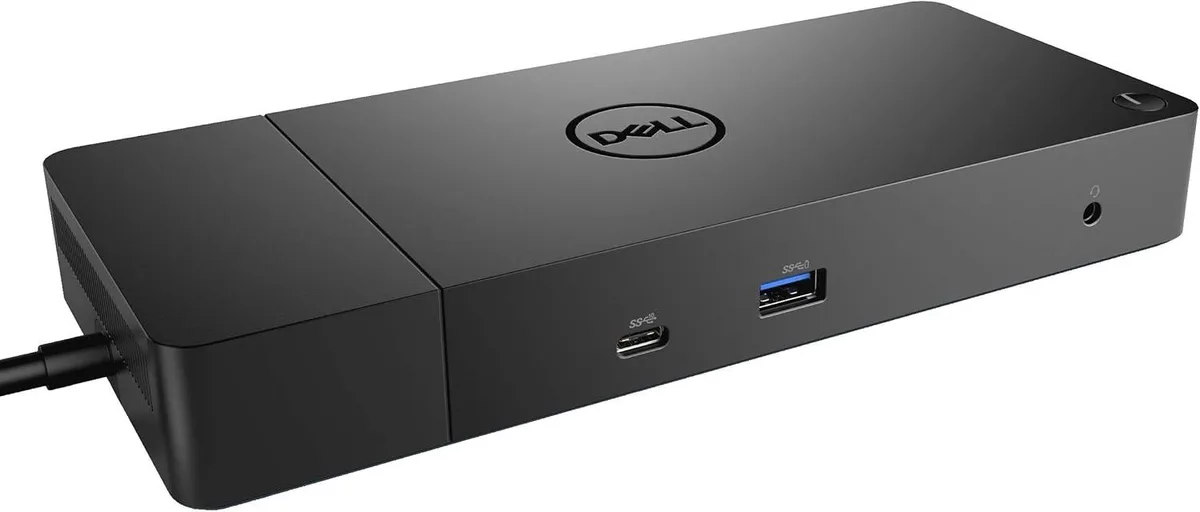

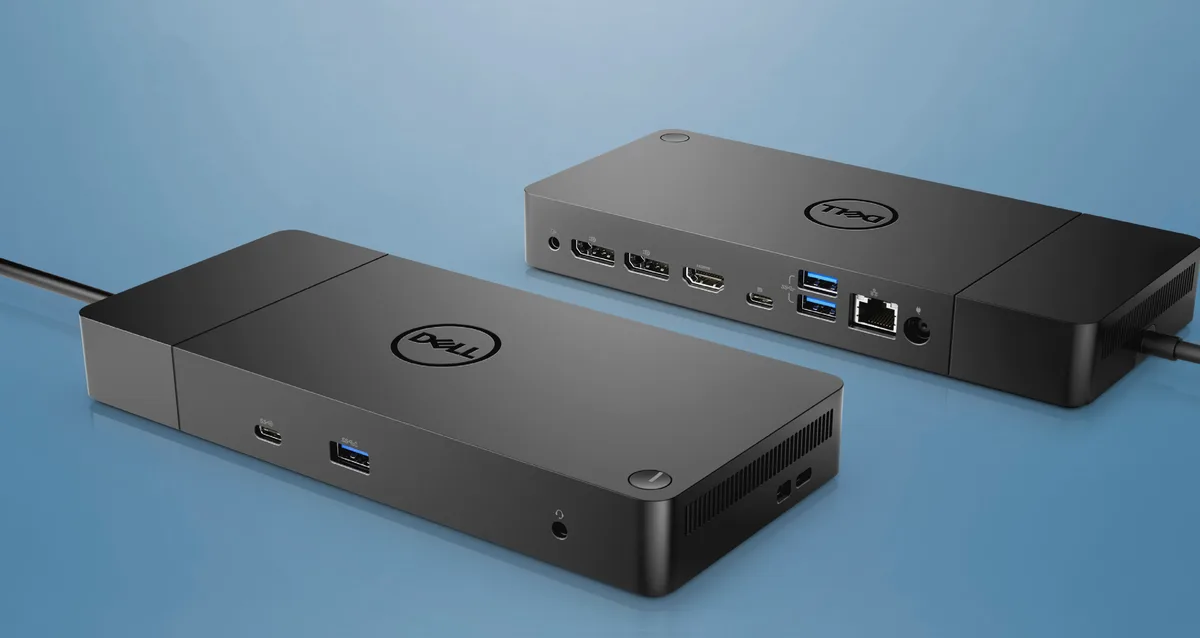

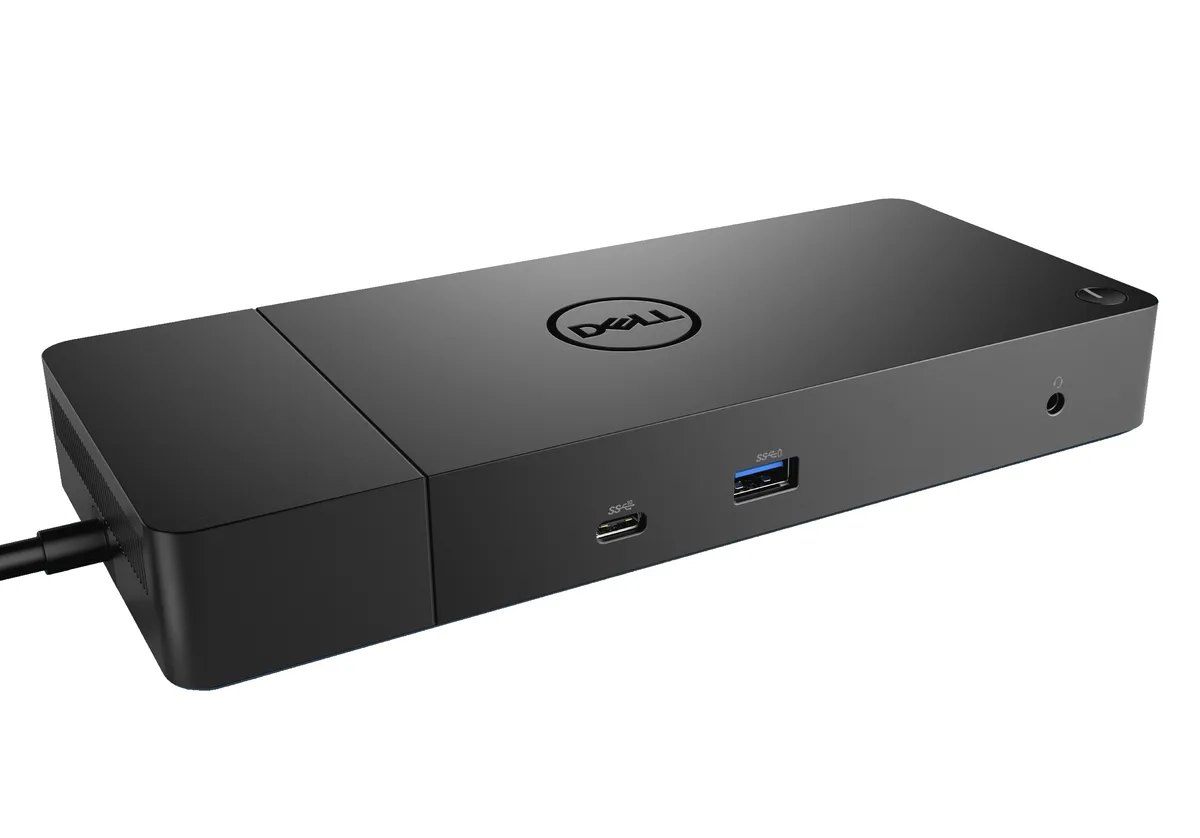

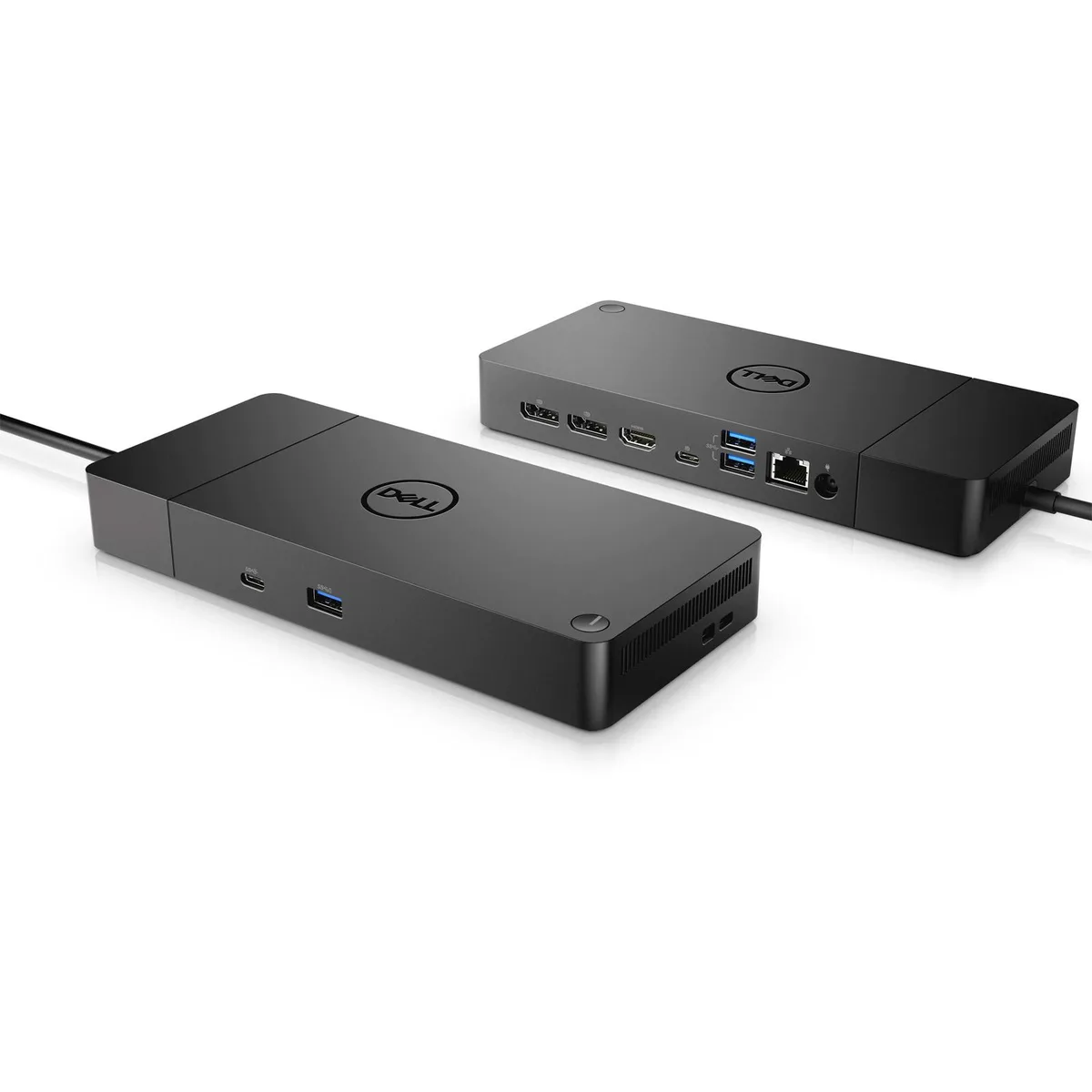

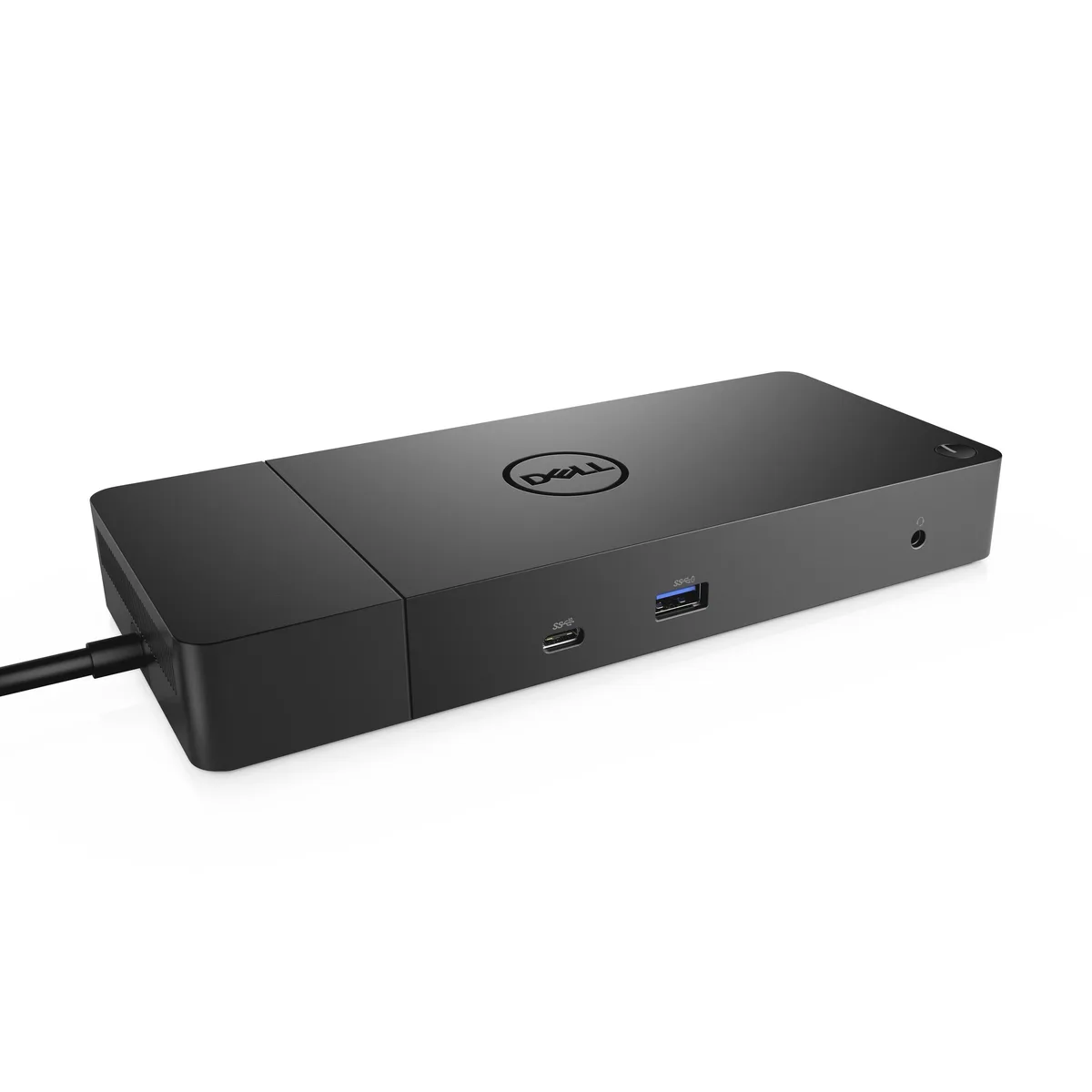

Black rectangular Dell WD19 dock, 8.1 by 3.5 by 1.1 inches, front USB-C and USB-A ports, rear HDMI, dual DisplayPort, Ethernet

DELL

DELL 5H8CR Docking Station WD19 130W USB-C 90W PD Black

SKU CH-QMTT-ADG6K MPN 5H8CR

A USB-C dock delivering 90W laptop charging, dual 4K video outputs, Gigabit Ethernet and multiple USB-A and USB-C ports with a 130W power adapter included

  • ColorBlack
  • Ports SpecInterfaces 2 x display / video - DisplayPort - 20 pin Displa
  • Dimension1.10" x 8.10" x 3.50"
  • Weight20.63 oz.
  • FeaturesMax Resolution Details: 3840 x 2160 - 30 Hz Data Link Protoc

Option WD19 130W (up to 90W PD)

  • Up to 90W power delivery charges laptops fast
  • Dual DisplayPort 1.4 and HDMI 2.0b support 3840 x 2160 at 30 Hz
  • Five USB 3.1 ports plus Gigabit Ethernet connect peripherals
  • 130W AC adapter with 3.3 ft USB-C cable powers the dock
  • Compact 8.1 x 3.5 x 1.1 in design fits any desk

Docking Station WD19 130W USB-C

The Dell WD19 130W docking station connects to a USB-C laptop and expands it with two DisplayPort 1.4 outputs, one HDMI 2.0b port, Gigabit Ethernet, five USB-A ports and three USB-C ports. A 130 W power adapter supplies up to 90 W of power delivery to the host while driving peripherals. The dock measures 8.1 in x 3.5 in x 1.1 in and includes a 3.3 ft USB-C cable.

Suits USB-C laptops needing triple display

Designed for users who want three external monitors at up to 3840 x 2160 30 Hz, wired networking and multiple USB peripherals from a single cable. Not suited for laptops without USB-C video and charging support, or for setups requiring higher refresh rates at 4K resolution.

90 W USB-C Power Delivery

The single specification that decides compatibility is the 90 W power delivery over USB-C. If the laptop accepts 90 W charging via its USB-C port, the dock will power it while driving displays and peripherals. If the laptop requires more power or lacks USB-C charging, a different power solution is needed.

Highlights

  • Up to 90W power delivery charges laptops fast
  • Dual DisplayPort 1.4 and HDMI 2.0b support 3840 x 2160 at 30 Hz
  • Five USB 3.1 ports plus Gigabit Ethernet connect peripherals
  • 130W AC adapter with 3.3 ft USB-C cable powers the dock
  • Compact 8.1 x 3.5 x 1.1 in design fits any desk

Specifications

BrandDell
Model5H8CR
ColorBlack
Ports SpecInterfaces
2 x display / video - DisplayPort - 20 pin DisplayPort
1 x display / video - HDMI - 19 pin HDMI Type A
1 x USB-C
3 x USB 3.1 Gen 1 - 9 pin USB Type A
2 x USB-C 3.1 Gen 2
1 x speakers - output - mini-phone 3.5 mm
1 x headset - output - mini-phone 3.5 mm
1 x network - Ethernet 1000 - RJ-45
Dimension1.10" x 8.10" x 3.50"
Weight20.63 oz.
FeaturesMax Resolution Details: 3840 x 2160 - 30 Hz
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Cables Included: 1 x SuperSpeed USB-C cable - 3.3 ft
Security lock slot (cable lock sold separately), 90W power delivery
Security Slot Type: Noble Wedge security slot / Kensington security slot
Power Device: Power adapter
Voltage Required: AC 120/230 V (50/60 Hz)
Power Provided: 130 Watt
OS Required: Red Hat Enterprise Linux, Windows 10, Ubuntu 18.04
Shipping weight1.54 kg
Package size305 × 290 × 60 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I connect the WD19 130W dock to my laptop and which cable do I use?

Connect the included 3.3 ft SuperSpeed USB-C cable from the dock's USB-C docking interface to your laptop's USB-C port; the 130W power adapter must be plugged into the dock's power-in port before linking the laptop.

What part of the WD19 130W will need replacement first if I use it daily?

The modular design lets you swap individual connectivity modules when ports wear out or standards change, so you replace only the module that fails instead of the whole dock.

At what power level does the WD19 130W stop charging my laptop during sustained heavy workloads?

The dock delivers up to 90W of power delivery to the laptop; if the system draws more than 90W under load the battery will not gain charge.
