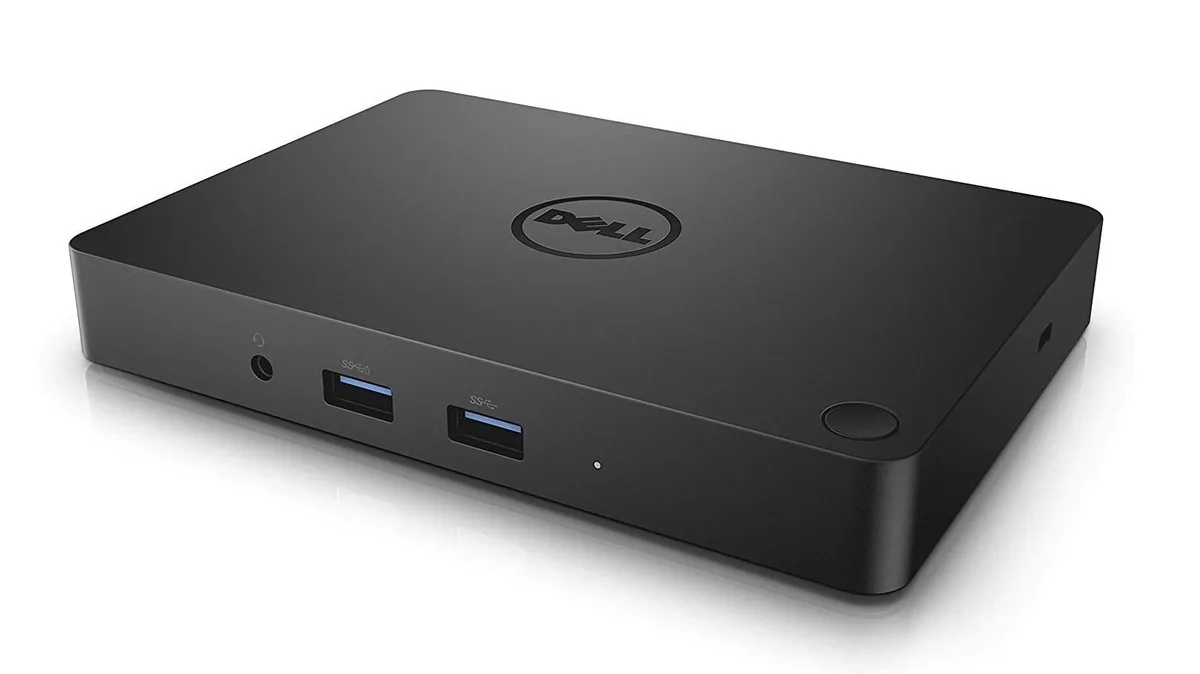

Black rectangular Dell WD15 docking station with front and rear ports

DELL

DELL 03DR1K WD15 Docking Station 180W

SKU CH-0GWF-PTBJ7 MPN 03DR1K

Connects a compatible Dell notebook via USB-C to five USB ports, HDMI, Mini DisplayPort, VGA, Gigabit Ethernet and audio

  • ColorBlack
  • CompatibilityDell XPS 15 (9550) Notebook Dell Latitude 15 (E5570) SKL-H N
  • Ports SpecHost Interface: USB Type C Audio Line Out: Yes Total Number
  • Dimension0.80" x 6.10" x 4.30"
  • Weight14.40 oz.
  • Connect compatible Dell notebooks with a single USB Type-C cable
  • Expand to external displays using HDMI, VGA or Mini DisplayPort
  • Connect wired networks and peripherals through five USB ports and RJ-45
  • Add audio in and out with built-in microphone and line-out jacks
  • Compact desktop footprint measuring .80 by 6.10 by 4.30 inches

Compatible Dell Notebooks

The WD15 docking station is built for Dell XPS 15 (9550) and Latitude 15 (E5570) notebooks. It also supports Precision 15 3000 (3510), 15 5000 (5510), 15 7000 (7510) and 17 7000 (7710) mobile workstations. Buyers with other Dell models or non-Dell laptops should verify compatibility before purchase.

Host Connection

The single specification that decides fit is the host interface: USB Type C. Your notebook must provide video, data and charging through one USB-C port for the dock to function. Systems limited to USB-A or proprietary connectors cannot use this station.

Sustained Operation

With a 180 W power adapter the dock delivers continuous charging to the attached notebook while driving external displays and peripherals. The 0.80" high enclosure runs without active cooling, so surface temperature rises during extended multi-monitor sessions but remains within Dell's thermal limits for the supported Precision and XPS platforms.

Highlights

  • Connect compatible Dell notebooks with a single USB Type-C cable
  • Expand to external displays using HDMI, VGA or Mini DisplayPort
  • Connect wired networks and peripherals through five USB ports and RJ-45
  • Add audio in and out with built-in microphone and line-out jacks
  • Compact desktop footprint measuring .80 by 6.10 by 4.30 inches

Specifications

BrandDell
Model03DR1K
ColorBlack
CompatibilityDell XPS 15 (9550) Notebook
Dell Latitude 15 (E5570) SKL-H Notebook
Ports SpecHost Interface: USB Type C
Audio Line Out: Yes
Total Number of USB Ports: 5
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 3
Network (RJ-45): Yes
VGA: Yes
Mini DisplayPort: Yes
Microphone: Yes
HDMI: Yes
Dimension0.80" x 6.10" x 4.30"
Weight14.40 oz.
Shipping weight1.81 kg
Package size270 × 200 × 122 mm

Questions about this item

How many external 4K displays can I run from the USB-C host connection?

The dock supports one 4K output via HDMI or Mini DisplayPort; the USB-C host link caps total video bandwidth so a second external 4K screen is not possible.

What does the USB-C host interface actually carry for this dock?

The single USB-C cable delivers video, data for five USB ports, gigabit Ethernet and audio, all limited to USB 3.0 speeds and DisplayPort 1.2 signalling.

Will the 03DR1K sit flat on my desk and clear the cable bend radius?

At .80" high, 6.10" wide and 4.30" deep it fits in a shallow tray; the fixed USB-C tether needs about 2" clearance behind the unit.
