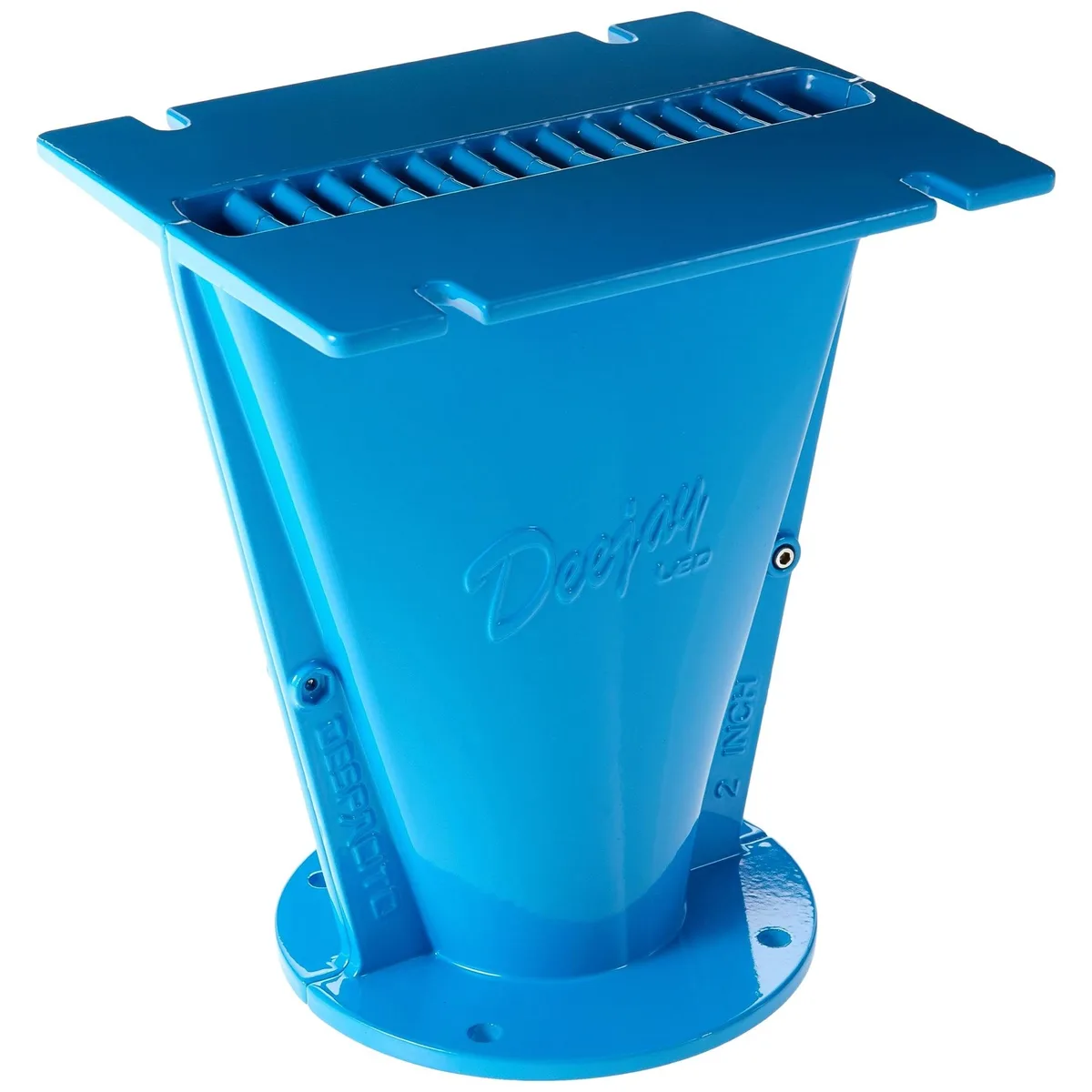

Blue rectangular waveguide with round rear plate and bolt holes

Deejay LED

Deejay LED High Frequency Acoustic Waveguide 2in Throat BLUE handheld pcs accessory

SKU CH-GD8S-C9GMN

High-frequency acoustic waveguide with 2in throat focuses output for minimal dispersion loss

  • Focused high-frequency pattern cuts dispersion loss with acoustic waveguide design
  • Precise 25 mm throat opening matches 2-inch bolt-on drivers exactly
  • Tall 152 mm aperture height shapes vertical coverage for consistent output
  • 73 mm bolt-centre spacing aligns with standard driver mounting patterns
  • Blue finish provides visual identification in multi-component speaker systems

High-Frequency Waveguide for 2in Drivers

This blue acoustic waveguide mounts on bolt-on compression drivers with a 2in throat. It shapes high-frequency output into a controlled pattern to reduce dispersion loss. The unit is sold new as a component for handheld PC accessory builds. Equipment shown in images is not included.

Suited for Custom Audio Projects

Builders integrating a 2in-throat driver into a portable or handheld system will find the waveguide matches that mounting standard. It is not for users needing a complete speaker assembly, a different throat diameter, or a finished enclosure with integrated amplification.

Capacity and Coverage Limits

The waveguide opening measures 25mm by 152mm, with a front width of 5 13 in and front height of 6 31 in. The rear round plate is 4 69 in in diameter and the bolt-hole centres sit 73mm apart. Front-to-rear depth is 7 06 in, defining the space the part occupies in a build.

Highlights

  • Focused high-frequency pattern cuts dispersion loss with acoustic waveguide design
  • Precise 25 mm throat opening matches 2-inch bolt-on drivers exactly
  • Tall 152 mm aperture height shapes vertical coverage for consistent output
  • 73 mm bolt-centre spacing aligns with standard driver mounting patterns
  • Blue finish provides visual identification in multi-component speaker systems

Specifications

No published specifications for this item yet.

Questions about this item

Which bolt-on driver throat size is required for this waveguide?

The waveguide is designed for bolt-on drivers with a 2in throat.

Will the 73 mm bolt-hole centres line up with my existing driver?

The rear round plate has bolt holes spaced 73 mm centre-to-centre, so it matches drivers using that pattern.

How can I confirm the waveguide is directing sound as intended once mounted?

Measure the output pattern; the 25 mm by 152 mm opening should produce a focused beam with minimal dispersion loss.
