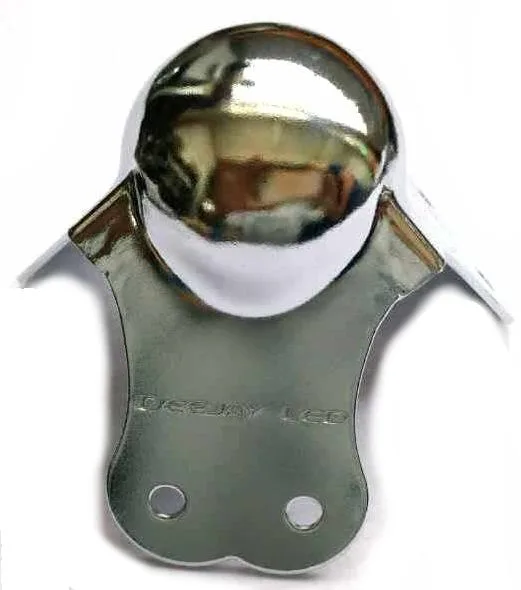

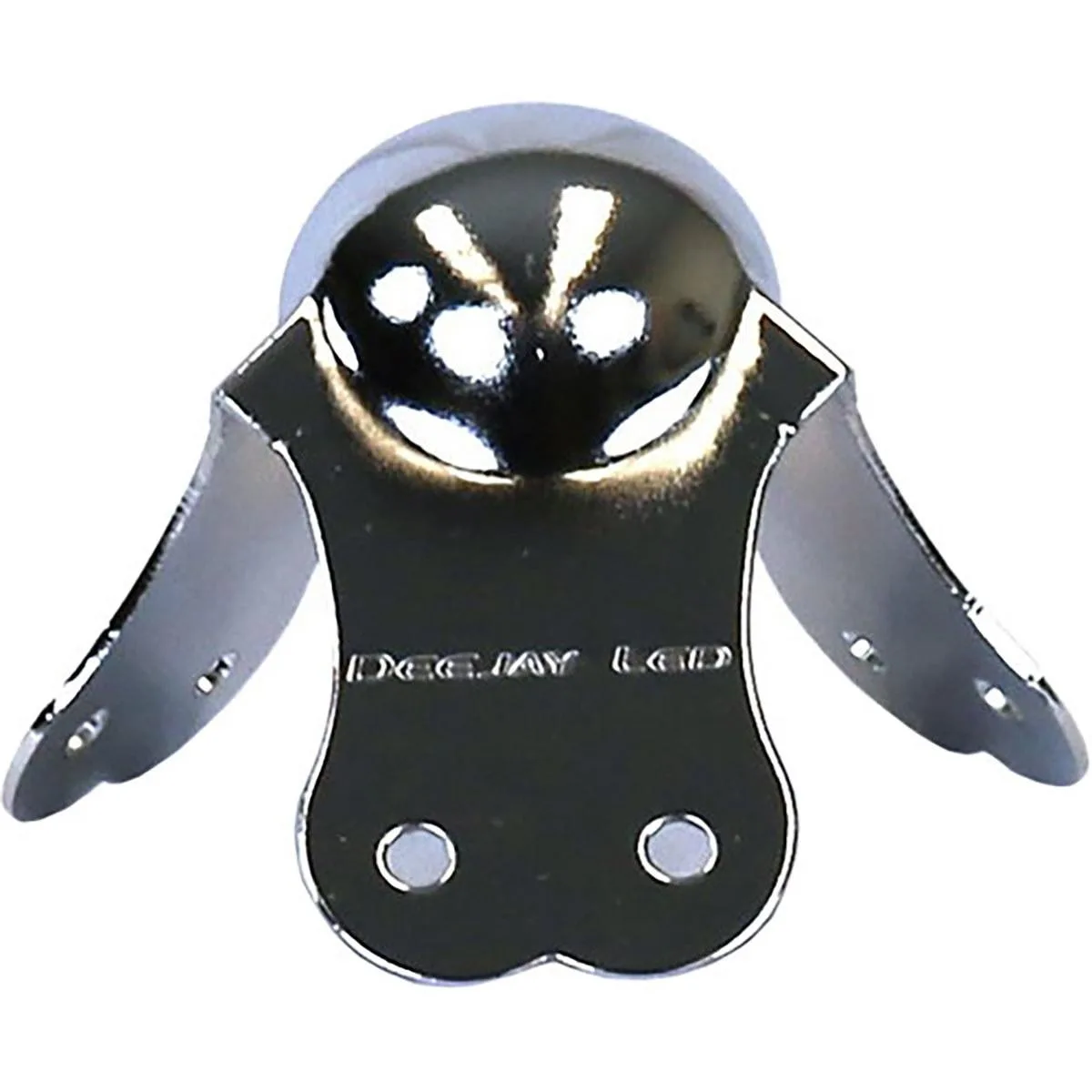

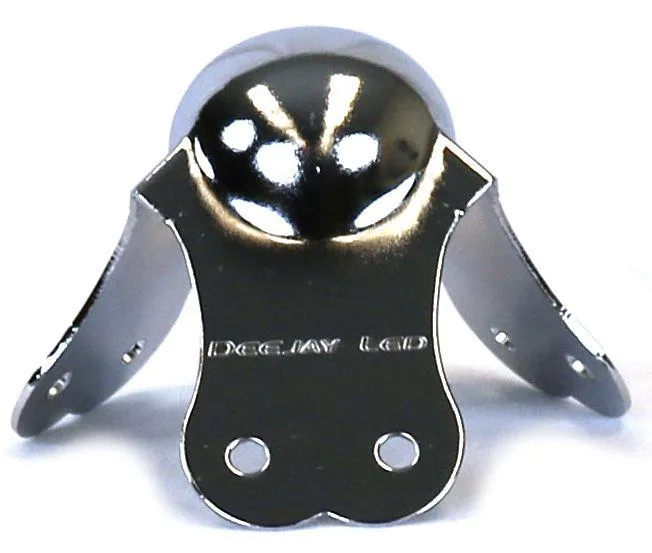

Chrome-plated steel ball corner with three mounting leaves and rounded impact surface

Deejay LED

Deejay LED Fly Drive Case Hardware Big Ball Corner

SKU CH-2M6X-PVJSH

Chrome-plated 14-gauge steel ball corner with three-leaf anchor protects flight cases from severe transit impact

  • Impact-resistant ball corner built from chrome-plated 14-gauge steel
  • Three-leaf anchor design with six-rivet pattern for secure case mounting
  • 1-3/4-inch ball diameter absorbs severe transit shocks
  • Matches stackable corner model TBHBIGSTACKCORNE for consistent case builds
  • Compatible with Deejay LED TBH5X18MMRIVET pop rivets (six required)

Protective Ball Corner for Transit Cases

This chrome plated 14 gauge steel ball corner protects equipment cases from impact during travel. The three leaf system measures approximately 3 inches per leaf with a maximum width of 1-5/8 inches and a ball diameter of 1-3/4 inches. It is designed for professional sound equipment cases that require reinforced corners for frequent transport. Cases needing a different corner profile or smaller hardware will not match this bracket.

Heavy Duty Six Rivet Anchor System

The corner comes with a heavy duty three prong six rivet anchor using two rivets per leaf for secure attachment. Fasteners are not included but the bracket accepts Deejay LED Aluminum Pop Rivet model TBH5X18MMRIVET requiring six rivets total. This mounting system helps provide protection against severe transit abuse. Builders who prefer welded corners or adhesive mounting cannot use this hardware.

Stackable Corner Compatibility

This ball corner serves as a mate for Stackable Corner Model TBHBIGSTACKCORNE allowing cases to stack securely. The unpackaged weight is .2 lbs making it a lightweight addition to case construction. The shipping box dimensions are 6 x 9 x 3 inches with a shipping weight of 1 lb. Users who do not stack their cases or who use a different stacking system will not need this specific compatibility.

Highlights

  • Impact-resistant ball corner built from chrome-plated 14-gauge steel
  • Three-leaf anchor design with six-rivet pattern for secure case mounting
  • 1-3/4-inch ball diameter absorbs severe transit shocks
  • Matches stackable corner model TBHBIGSTACKCORNE for consistent case builds
  • Compatible with Deejay LED TBH5X18MMRIVET pop rivets (six required)

Specifications

No published specifications for this item yet.

Questions about this item

How do I install the three-leaf ball corner and what step is often missed?

Bolt the three-leaf anchor to each case edge using six 5 x 18 mm aluminum pop rivets, two per leaf; the step often missed is ordering the rivets separately because they are not included.

What maintenance or replacement will the chrome-plated 14 gauge steel corner need later?

Inspect the chrome plating and rivet heads after heavy tours; replace the corner if the 1-3/4-in ball shows dents or the three-leaf anchor loosens.

What limit appears first when the case sees sustained road vibration?

The six-rivet anchor is the first limit; if rivets shear or leaves bend under repeated shock, the 14 gauge steel ball corner can no longer absorb impact.
