Deejay LED

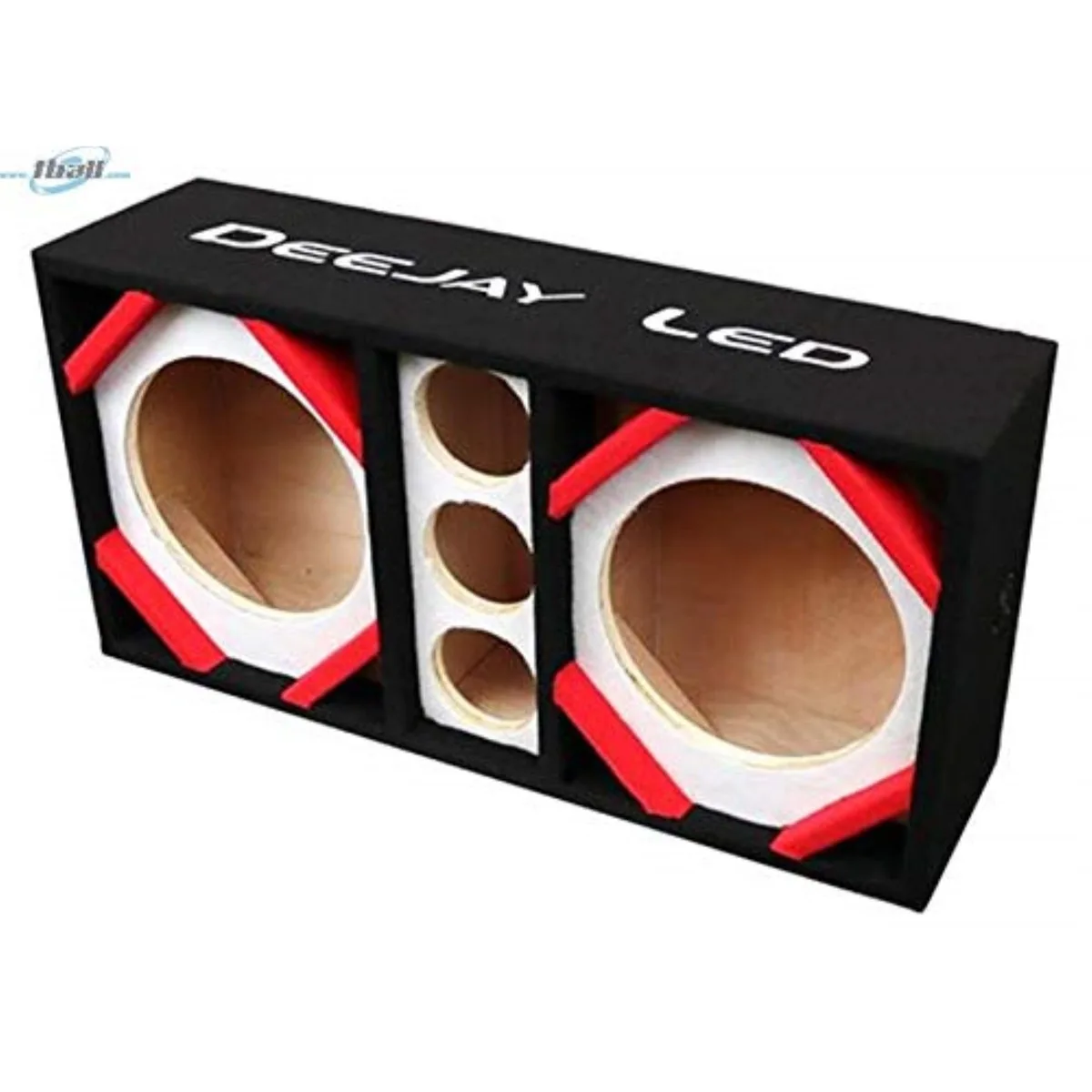

Deejay LED D10T3WHITE Empty Speaker Enclosure White
Empty speaker enclosure with two 10-inch woofer cutouts, three 95 mm tweeter holes, 15 mm plywood build and dual quad ports
- Houses two 10-in woofers and three tweeters in sealed chambers
- 15 mm plywood build resists vibration under high output
- Quad-port layout tunes each woofer chamber independently
- 95 mm tweeter cut-outs fit standard compression drivers
- Pre-wired 8-conductor quick-release socket speeds driver installation
Empty Speaker Enclosure for Custom Builds
The Deejay LED D10T3WHITE is an empty speaker housing designed for audio enthusiasts who want to build a custom loudspeaker system. It accommodates two 10-in woofers and three tweeters in a white finish. The cabinet uses 15mm plywood construction for rigidity. It suits DIY installers and mobile sound-system builders.
Three Sealed Chambers with Quad Ports
The enclosure provides three sealed internal chambers, each woofer served by two quad ports for tuned bass response. Woofer cutouts measure 9.125-in round openings with a 5.88-in mounting depth. Three tweeter holes are sized at 95mm diameter. This layout handles mid-bass and high-frequency drivers in a single box.
Quick-Release Plug and Carpet Finish
An 8-conductor quick-release plug socket is installed and requires the TBH8PINMALE or speakon 8-pin plugs, which are not included. Heavy-duty carpet covering features a quality embroidered stitched logo for durability and appearance. The bundled hardware simplifies wiring but demands the matching connector purchase.
Highlights
- Houses two 10-in woofers and three tweeters in sealed chambers
- 15 mm plywood build resists vibration under high output
- Quad-port layout tunes each woofer chamber independently
- 95 mm tweeter cut-outs fit standard compression drivers
- Pre-wired 8-conductor quick-release socket speeds driver installation
Specifications
No published specifications for this item yet.
Questions about this item
Will the 15 mm plywood panels and 9.125 in cut-outs line up with the 10 in woofers I already own?
The enclosure is built from 15 mm plywood with two 9.125 in round openings sized for 10 in woofers, so standard 10 in drivers should mount directly.
How can I verify the three sealed chambers and quad ports are tuned correctly once the box is assembled?
Play a low-frequency sweep and listen for even output from each port; the three separate chambers should produce smooth response without panel buzz or air leaks.
Does the package include the TBH8PINMALE connector or SpeakON 8-pin plugs needed for the installed quick-release socket?
The box ships with the 8-conductor quick-release socket already mounted; the matching TBH8PINMALE plug or SpeakON 8-pin plugs must be purchased separately.
