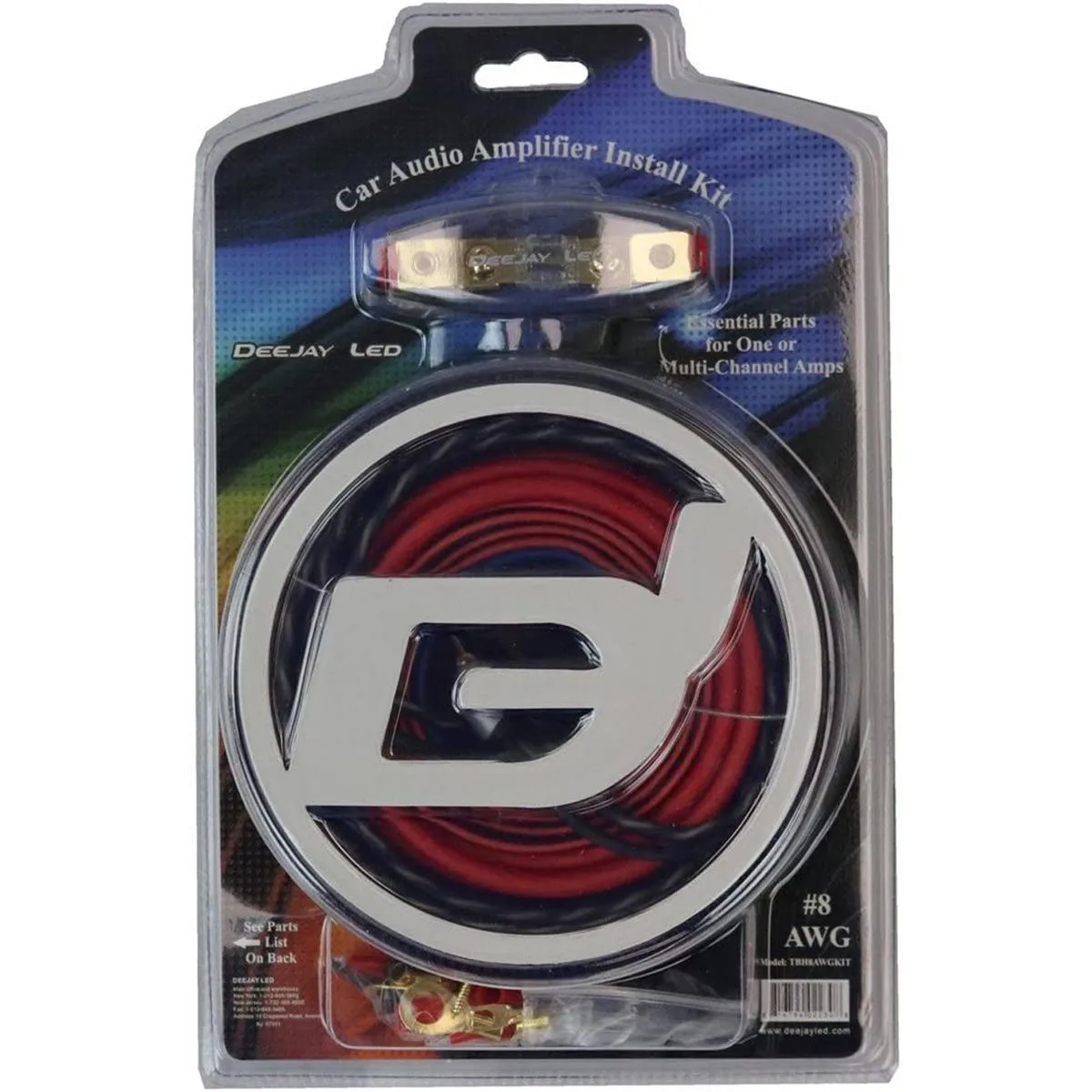

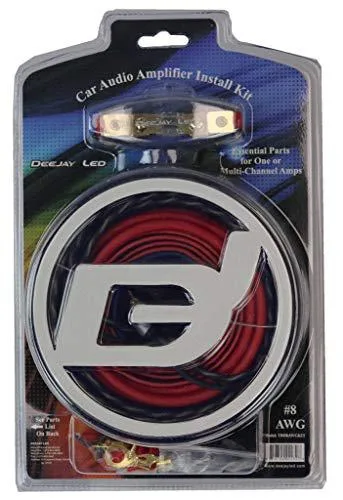

Red and black power cables, RCA and speaker wires, fuse holder, terminals and wire ties in a kit

Deejay LED

Deejay LED Amplifier Installation Kit #8-AWG CCA 80A Fuse Pro Sound

SKU CH-7NYP-CF7XQ

Complete amplifier installation kit with 17-foot #8-AWG CCA power and ground wires, 17-foot #16-AWG speaker wire, 17-foot RCA cable, 17-foot #18-AWG turn-on wire, fuse holder with 80-amp fuse.

  • Complete kit includes every wire and connector needed for a high-power amplifier install
  • 17-ft #8-AWG CCA power wire delivers 80-amp capacity for strong current flow
  • 3-ft matching #8-AWG ground wire ensures a solid chassis connection
  • 17-ft #16-AWG speaker wire and 17-ft RCA cable carry clean audio signals
  • 17-ft #18-AWG turn-on lead plus fuse holder and split loom simplify wiring and protect cables

Complete Amplifier Installation Kit

This kit supplies the wiring and hardware needed to connect a high-powered amplifier in a car or truck. It includes power, ground, speaker, RCA and turn-on leads plus a fuse holder and terminals. The package is aimed at installers who want a single box with every essential cable and connector.

17-Foot #8-AWG CCA Power Runs

The 17-foot red power wire and 3-foot black ground wire use #8-AWG copper-clad aluminium rated for 80 amps with the supplied fuse. This gauge handles typical mid-power amplifiers but reaches its limit on very large multi-kilowatt systems. The #16-AWG speaker wire and #18-AWG turn-on lead cover normal runs to doors and dash.

CCA Conductor Practical Limits

Copper-clad aluminium carries less current than solid copper of the same gauge, so voltage drop appears sooner on long runs. The 80-amp fuse protects the #8-AWG power wire but leaves no headroom for amplifiers that draw more continuously. Installers needing higher current or lower loss should choose a larger gauge or solid copper wire.

Highlights

  • Complete kit includes every wire and connector needed for a high-power amplifier install
  • 17-ft #8-AWG CCA power wire delivers 80-amp capacity for strong current flow
  • 3-ft matching #8-AWG ground wire ensures a solid chassis connection
  • 17-ft #16-AWG speaker wire and 17-ft RCA cable carry clean audio signals
  • 17-ft #18-AWG turn-on lead plus fuse holder and split loom simplify wiring and protect cables

Specifications

No published specifications for this item yet.

Questions about this item

Will the 17-Ft #8-AWG CCA power wire handle my existing 80-amp fuse and high-current amplifier without overheating?

The kit includes an 80-amp fuse matched to the #8-AWG CCA power wire, so the wire and fuse are rated for the same current limit.

How can I verify the amplifier turn-on lead is sending a clean signal after I route the 17-Ft #18-AWG wire?

With the head unit on, measure DC voltage on the #18-AWG turn-on wire at the amplifier terminal; it should read battery voltage when the radio is powered.

Does the box contain ring and spade terminals for the #8-AWG power and ground wires, or must I buy them separately?

Two #8-AWG ring terminals and two #8-AWG spade terminals are included, plus insulators, so no extra terminals are needed for the main power and ground connections.
