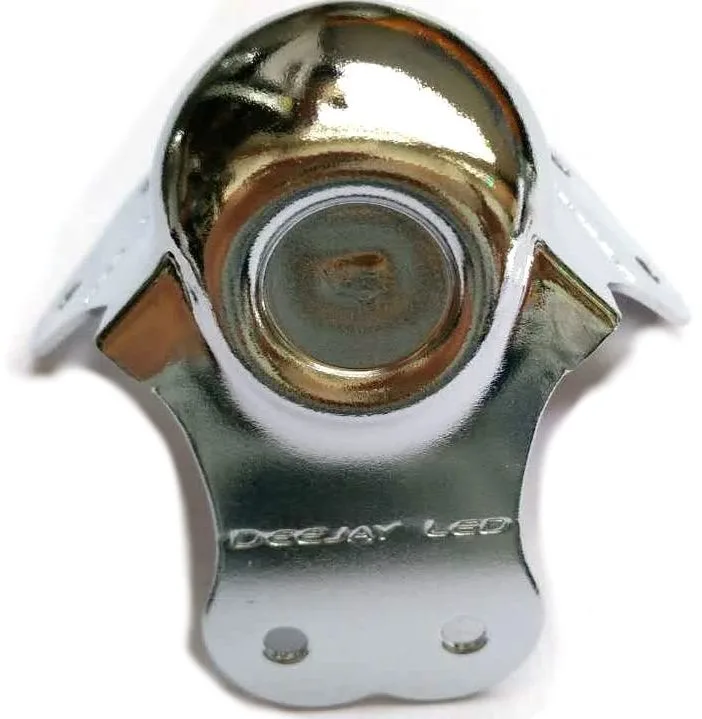

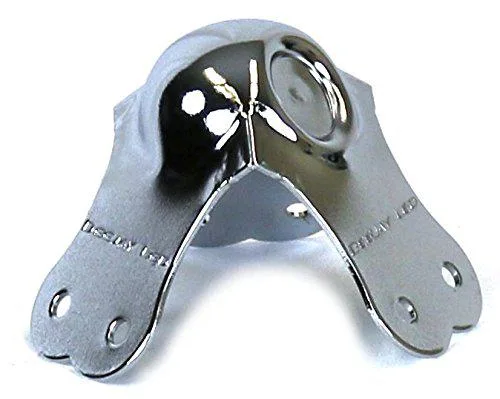

Chrome-plated steel ball corner with three riveted leaves and dimpled ball end

Deejay LED

Deejay LED 14-gauge chrome ball corner pro sound

SKU CH-DAMC-3S5X3

A 14-gauge chrome-plated steel ball corner with a three-leaf, six-rivet anchor protects flight-case corners and enables stable stacking during transit

  • Chrome-plated 14-gauge steel absorbs heavy transit impacts
  • Three-leaf anchor with six rivet points locks panels rigid
  • ¾-inch dimple centres stacked cases for stable loads
  • 1¾-inch ball radius deflects corner strikes effectively
  • Compatible with TBH5X18MMRIVET rivets for secure assembly

Chrome 14-gauge ball corner for pro-audio cases

This chrome-plated steel corner protects flight-case edges from impact during transport. The three-leaf anchor uses two rivets per leaf for a secure mount on case bottoms. Fasteners are not included, so installers supply their own rivets. It accepts the Deejay LED aluminum pop rivet model TBH5X18MMRIVET, using six per corner.

Stackable dimple design for multi-case loads

A 3/4-in dimple in the 1-3/4-in ball creates a positive locator when cases are stacked, keeping the upper unit centred and stable. The geometry transfers vertical load through the ball rather than the case skin, reducing panel flex on long hauls. The 14-gauge steel resists deformation under repeated stacking cycles. The three-prong anchor distributes shear forces across six rivet points.

Rivet pattern limits rework and panel thickness

Six rivet holes per corner fix the mounting pattern, so panel layouts must accommodate the 3-in leaf length and 1-5/8-in maximum leaf width. Drilling or countersinking beyond the supplied holes risks weakening the 14-gauge material. The corner adds minimal mass at 0.2 lbs unpackaged, but the fixed hole spacing constrains how close adjacent corners can be placed.

Highlights

  • Chrome-plated 14-gauge steel absorbs heavy transit impacts
  • Three-leaf anchor with six rivet points locks panels rigid
  • ¾-inch dimple centres stacked cases for stable loads
  • 1¾-inch ball radius deflects corner strikes effectively
  • Compatible with TBH5X18MMRIVET rivets for secure assembly

Specifications

No published specifications for this item yet.

Questions about this item

Does the 14-gauge steel corner generate any noise or heat when cases are stacked for long periods?

No, it is a passive metal bracket with no moving parts or electronics, so it produces no noise or heat during continuous stacking.

Which fasteners must I already have to mount this corner on my case?

You need six Deejay LED aluminum pop rivets, model TBH5X18MMRIVET, which are not included with the corner.

Will the 1-3/4-inch ball diameter align with older stackable cases that use the same dimple pattern?

Yes, the 3/4-inch dimple diameter and 1-3/4-inch ball diameter match the standard Deejay LED stacking system used on earlier cases.
