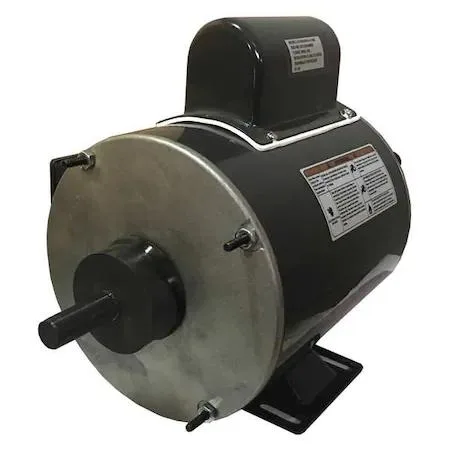

Dayton 1 hp direct-drive blower motor, totally enclosed air-over housing

Dayton

Dayton GGS_47824 1 hp Direct Drive Blower Motor

SKU CH-V87Y-HJ0Y4

A 1 hp permanent split capacitor motor running at 115 V AC and 1100 RPM for HVAC blowers

  • typeMotors
  • 1 hp single-phase motor delivers strong airflow
  • 1,100 RPM nameplate speed provides consistent circulation
  • Auto thermal protection prevents overheating damage
  • Totally enclosed air-over enclosure resists dust and moisture
  • Continuous duty cycle supports non-stop HVAC operation

Direct-Drive HVAC Blower Motor

This 1 hp Dayton motor is built for definite-purpose HVAC installations that require a permanent-split-capacitor design. It suits technicians and facility managers who need a single-speed replacement for air-handling equipment running on 115 V AC.

Single-Phase 115 V Integration

The motor draws 10 A at full load and operates on a 60 Hz supply, so the circuit must provide that voltage and frequency. Its non-standard frame means mounting dimensions must be verified against the existing housing before installation. Continuous duty rating allows it to run without intermittent rest periods.

Sustained Operation at 40 °C Ambient

Thermal protection is automatic and the insulation class B rating supports a maximum ambient temperature of 40 °C. Nameplate speed is 1 100 RPM under continuous load, and the shaft rotates clockwise when viewed from the shaft end. The motor is not usable at 200 V or 208 V, so voltage must remain at the rated 115 V.

Highlights

  • 1 hp single-phase motor delivers strong airflow
  • 1,100 RPM nameplate speed provides consistent circulation
  • Auto thermal protection prevents overheating damage
  • Totally enclosed air-over enclosure resists dust and moisture
  • Continuous duty cycle supports non-stop HVAC operation

Specifications

BrandDAYTON
typeMotors

Questions about this item

Does the 1 hp motor run continuously without overheating in a 40 °C ambient?

Yes, the motor is rated for continuous duty with Class B insulation and automatic thermal protection up to a maximum ambient temperature of 40 °C.

How much current does the motor draw at full load on a 115 V supply?

The nameplate shows 10 A at full load on 115 V AC, 60 Hz single phase.

What shaft rotation and mounting frame should the existing equipment have for a direct swap?

The motor has a clockwise shaft-end rotation and a non-standard frame; it replaces Dayton 1LXN4D.
