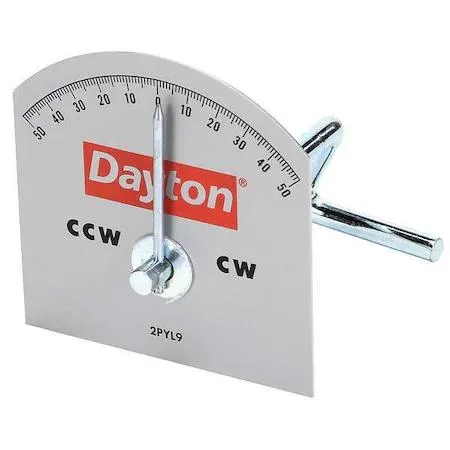

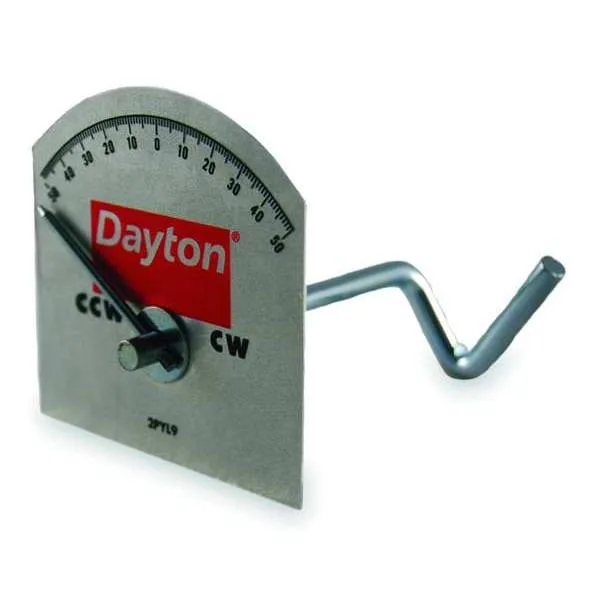

Polished stamped aluminium fan blade pitch gauge, 4 by 3 inches

Dayton

Dayton Fan Blade Pitch Gauge

SKU CH-2Z9N-FDDXY

Measures fan blade angle for balanced airflow, made from polished stamped aluminium in a compact 4 by 3 inch tool

  • typeFan Blade
  • Polished aluminium resists corrosion for long tool life
  • Compact 4 in × 3 in size stores easily in any tool bag
  • Accurate blade-angle measurement keeps fans balanced and efficient
  • Simple mechanical gauge needs no batteries or calibration

Dayton Fan Blade Pitch Gauge Overview

This Dayton Fan Blade Pitch Gauge is a precision tool designed to measure the blade angle of fans. Constructed from polished stamped aluminum, it offers durability and corrosion resistance. With an overall length of 4 inches and width of 3 inches, it provides a compact solution for technicians and maintenance professionals needing accurate pitch readings for optimal airflow performance.

Suitability and Limitations

This gauge suits HVAC technicians, facility maintenance teams, and DIY enthusiasts who need to verify or adjust fan blade angles for balanced operation. It is not intended for users requiring digital readouts, data logging capabilities, or automated calibration features. Buyers needing measurements beyond the physical scale range or those seeking electronic integration should consider alternative instruments.

Highlights

  • Polished aluminium resists corrosion for long tool life
  • Compact 4 in × 3 in size stores easily in any tool bag
  • Accurate blade-angle measurement keeps fans balanced and efficient
  • Simple mechanical gauge needs no batteries or calibration

Specifications

BrandDayton
typeFan Blade

Questions about this item

How do I install the Dayton Fan Blade Pitch Gauge onto a fan blade and what step is most often done incorrectly?

Place the gauge flat against the blade surface, align the pivot point with the blade root, then read the angle where the pointer settles; the common error is holding the gauge at an angle instead of keeping it fully flush with the blade.

What maintenance or replacement will the Dayton Fan Blade Pitch Gauge need over time?

The polished stamped aluminum body resists corrosion; wipe it clean after each use and store dry. No calibration or spare parts are required unless the gauge is bent or the pointer becomes loose.
