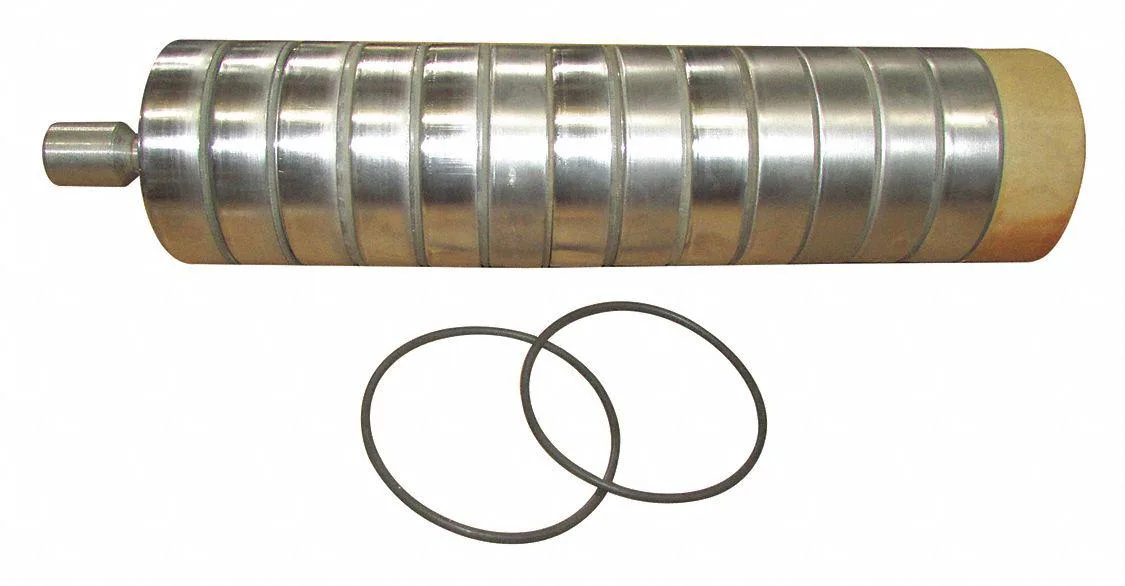

Dayton booster cartridge assembly, 13-stage metal housing with shaft and fittings

Dayton

Dayton AEYE5 Booster Cartridge Assembly 13 Stage

SKU CH-G09T-38NDP

A 13-stage booster cartridge assembly compatible with Dayton pumps and Grainger part numbers 45MW93 and 45MW94

  • 13-stage booster cartridge delivers high-pressure performance
  • includes bearing, spider, clip ring, coupling, O-ring, shaft, shim washer, sleeve and stage components
  • compatible with Dayton booster pumps and Grainger part numbers 45MW93 and 45MW94
  • new factory assembly ensures reliable installation and operation
  • California Proposition 65 warning applies for cancer and reproductive harm

Booster Cartridge Assembly 13 Stage

The Dayton AEYE5 Booster Cartridge Assembly is a 13 stage replacement unit designed for compatible Dayton booster pumps. It serves maintenance teams and facility engineers who need to restore pump performance using original brand components. The assembly arrives new and includes the bearing, bearing spider, clip ring, coupling, O-ring, shaft, shim washer, sleeve and stage components such as bowl, impeller and diffuser.

Thermals noise and power draw

Thermals, noise and power draw are determined by the host booster pump and the motor driving it; this cartridge assembly adds no independent heat, sound or electrical load. Normal operation will reflect the pump’s existing duty cycle and installation environment. No separate cooling or power provision is required for the cartridge itself.

Build fit and system impact

The cartridge fits Dayton booster pumps that accept Grainger part numbers 45MW93 and 45MW94 or manufacturer model numbers 45MW93 and 45MW94. It frees the operator from sourcing individual wear parts by supplying every stage component in one kit. Buyers who need a different stage count or a non-Dayton pump interface cannot use this assembly.

Highlights

  • 13-stage booster cartridge delivers high-pressure performance
  • includes bearing, spider, clip ring, coupling, O-ring, shaft, shim washer, sleeve and stage components
  • compatible with Dayton booster pumps and Grainger part numbers 45MW93 and 45MW94
  • new factory assembly ensures reliable installation and operation
  • California Proposition 65 warning applies for cancer and reproductive harm

Specifications

BrandDAYTON

Questions about this item

How do I install the Dayton AEYE5 13-stage booster cartridge assembly and what step is often missed?

The assembly includes the bearing, bearing spider, clip ring, coupling, O-ring, shaft, shim washer, sleeve, and stage components. A common oversight is failing to seat the O-ring and clip ring fully before tightening the coupling.

What parts of the 13-stage booster cartridge will need maintenance or replacement over time?

The O-ring, bearings, impellers, diffusers, and shaft sleeves are wear items that typically require inspection and replacement during scheduled pump overhauls.

What is the first performance limit reached when running the 13-stage booster cartridge continuously?

Sustained operation generates heat in the bearings and shaft seals, making thermal limits and seal wear the primary constraints before hydraulic capacity is reached.
