Dayton draft booster motor, transparent housing, 1/15 hp

Dayton

Dayton 71219124M Draft Booster Motor 1/15 hp Transparent

SKU CH-X7T8-HFTTD

A 1/15 hp shaded-pole draft booster motor running at 3,000 RPM on 115/230V AC with auto thermal protection and continuous duty rating

  • ColorTransparent
  • typeMotors
  • 1/15 hp motor powers draft booster systems
  • Shaded-pole design delivers single-speed 3 000 RPM operation
  • Dual-voltage 115/230 V AC suits varied installations
  • Auto thermal protection with Class B insulation ensures continuous duty
  • Open air-over enclosure and all-angle stud mounting simplify fitment

Product Identity

The Dayton 71219124M is a single-phase shaded-pole draft booster motor rated at 1/15 hp. It runs at 3,000 RPM on 115/230 V AC, drawing 2.2 or 1.1 A respectively, and is built for continuous duty in ambient temperatures up to 40 °C.

Compatibility Check

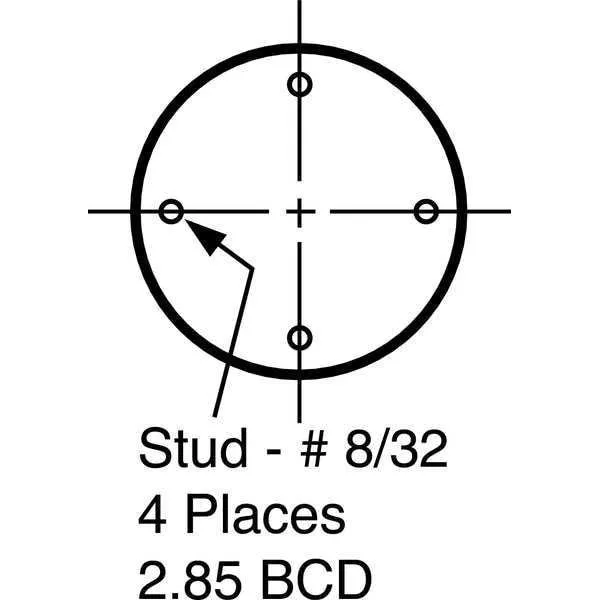

Verify that your supply voltage matches 115 V or 230 V AC at 60 Hz and that the motor will not be required at 200 V or 208 V. Confirm the driven equipment needs a fixed CCWSE rotation at a single speed and that the stud mounting pattern aligns with your existing bracket.

Build and Connections

The open air-over enclosure relies on the application airflow for cooling, while Class B insulation and automatic thermal protection guard against overheating. A 3 3/4 in shaft extends from the transparent frame, and the all-angle mounting lets you orient the unit horizontally, vertically or at any intermediate position.

Highlights

  • 1/15 hp motor powers draft booster systems
  • Shaded-pole design delivers single-speed 3 000 RPM operation
  • Dual-voltage 115/230 V AC suits varied installations
  • Auto thermal protection with Class B insulation ensures continuous duty
  • Open air-over enclosure and all-angle stud mounting simplify fitment

Specifications

BrandDAYTON
ColorTransparent
typeMotors

Questions about this item

What comes in the box with the Dayton 71219124M draft booster motor and what must be purchased separately?

The box contains the motor unit only; mounting hardware, wiring, and any fan blade or housing are not included and must be sourced separately.

Which voltage version of the 1/15 hp shaded-pole motor should I choose for a 115 V supply?

Select the 115 V connection; the motor is dual-voltage rated at 115/230 V AC and draws 2.2 A at 115 V.

What does the 3,000 RPM nameplate speed mean once the motor is installed in a draft booster?

The motor runs at a fixed 3,000 RPM under full load, delivering continuous single-speed airflow with automatic thermal protection.
