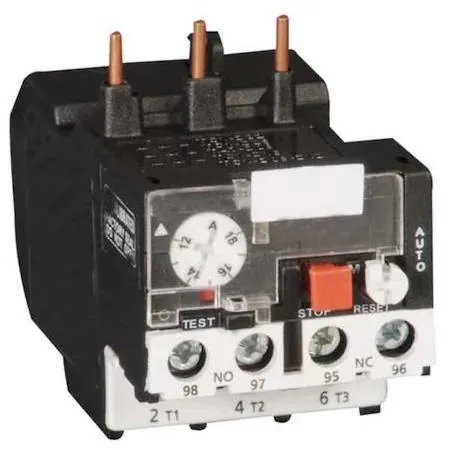

Transparent rectangular overload relay with front dial and terminals

Dayton

Dayton 6ECC7 Overload Relay 23-32 A 1NC/1NO

SKU CH-VX29-60M7E

Thermal overload relay protects three-phase circuits from 23 A to 32 A with auto or manual reset and IEC 60947-4-1 compliance

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Thermal protection for motors up to 32 A with IEC 60947-4-1 compliance
  • Adjustable trip range from 23 A to 32 A covers diverse load profiles
  • Dual 1NO/1NC auxiliary contacts simplify control-circuit wiring
  • Auto and manual reset options speed recovery after overload events
  • Direct contactor mounting saves panel space and reduces installation time

Industrial Overload Relay for Motor Protection

The Dayton 6ECC7 is a three-pole thermal overload relay rated for 23 A to 32 A. It mounts directly to a contactor and provides 1NO/1NC auxiliary contacts for control circuits in industrial automation panels.

Thermal Trip Class 10 and IEC 60947 Standard

The relay operates on Trip Class 10 and meets IEC 60947-4-1, CSA, and UL Listed standards. Auto and manual reset modes are selectable. The adjustable current range tops out at 32 A, so motors drawing more require a different device.

Verify Contactor Fit and Wiring Space

Confirm the contactor matches the direct-mount style and that the 3.62 in body depth fits your enclosure. Check that 1NO/1NC contacts suit your control scheme and review the Proposition 65 notice for regulated jurisdictions.

Highlights

  • Thermal protection for motors up to 32 A with IEC 60947-4-1 compliance
  • Adjustable trip range from 23 A to 32 A covers diverse load profiles
  • Dual 1NO/1NC auxiliary contacts simplify control-circuit wiring
  • Auto and manual reset options speed recovery after overload events
  • Direct contactor mounting saves panel space and reduces installation time

Specifications

BrandDAYTON
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

Which current range suits my motor — the 23 A minimum or the 32 A maximum setting?

The relay adjusts continuously between 23 A and 32 A, so you set the dial to the motor's full-load current within that window.

What does the Trip Class 10 rating mean when the relay is fitted to a contactor?

Trip Class 10 trips within 10 seconds at six times the set current, giving standard protection for general-purpose motors.

Does the IEC 60947-4-1 listing limit the contactor models I can mount this on?

The relay mounts directly to compatible IEC contactors; the standard ensures electrical performance, not a single contactor part number.
