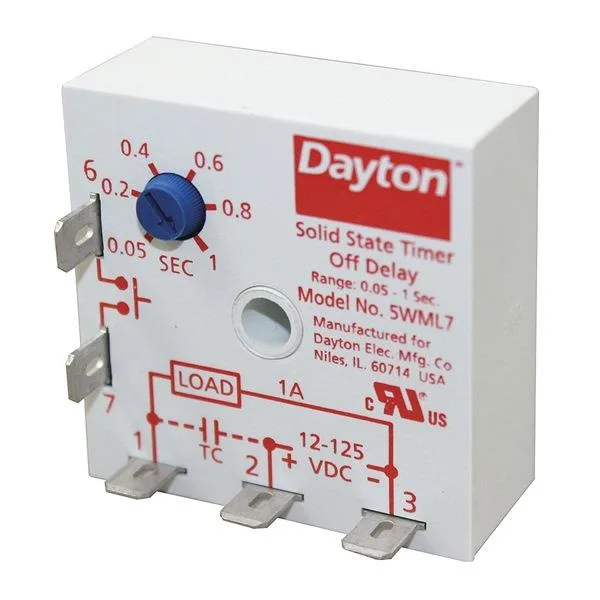

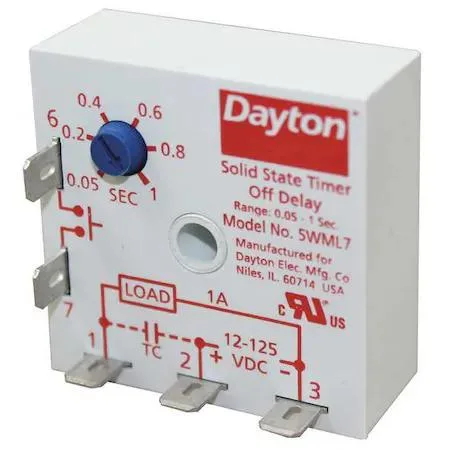

Transparent square encapsulated relay with screw terminals

Dayton

Dayton 5WML7 Solid State Timing Relay 1A 12-125V DC

SKU CH-H1QD-A9A6C

Solid-state timing relay provides a single off-delay function adjustable from 0.05 to 1 second with a 1 A, 12–125 V DC encapsulated design

  • TypeSolid State Output
  • ColorTransparent
  • Solid-state output with 2.500 switching capability
  • Adjustable off-delay timing from .05 to 1 second
  • Encapsulated body protects internal components
  • Wide 12 to 125V DC input voltage range
  • 1A DC contact rating at 12 to 125V

Encapsulated Solid-State Timing Relay

This Dayton 5WML7 relay provides a single off-delay function in a transparent encapsulated body. It mounts on a surface using screw terminals and suits control panels that need a compact timing element. The solid-state output switches up to 1 A on DC circuits.

DC Coil Voltage Range and Timing Window

The relay operates on an input voltage from 12 to 125V DC with a coil rated at 125V DC. Adjustable off-delay timing spans from 0.05 sec to 1 sec via a potentiometer. Contact rating is limited to 1 A at 12 to 125V DC with no AC rating specified.

SPST-NO Contact Form and Mounting Check

Verify your circuit requires a single-pole single-throw normally open contact before ordering. Ensure the 2 in. body depth fits the enclosure and that the five-pin screw-terminal layout matches your wiring plan. The encapsulated sealing suits indoor panel installations.

Highlights

  • Solid-state output with 2.500 switching capability
  • Adjustable off-delay timing from .05 to 1 second
  • Encapsulated body protects internal components
  • Wide 12 to 125V DC input voltage range
  • 1A DC contact rating at 12 to 125V

Specifications

BrandDayton
Model5WML7
TypeSolid State Output
ColorTransparent

Questions about this item

How do I choose between the 0.05 second minimum and 1 second maximum delay settings?

The potentiometer lets you adjust the off-delay anywhere from 0.05 sec up to 1 sec for the single timing function.

What does the 1 A at 12 to 125 V DC rating mean when the relay is powered?

The solid-state output switches up to 1 A across the full 12 to 125 V DC input range.

How does the screw-terminal connection work with the 5-pin square base?

Five screw terminals on the encapsulated square base accept wire leads for coil power and the SPST-NO load circuit.
