Dayton 4YU32 Shaded Pole Motor 1/30 HP 115V 3-Speed
Shaded-pole fan and blower motor delivers 1/30 hp at three speeds from a 115 V supply
- ColorTransparent
- Three-speed shaded-pole motor covers low, medium and high airflow needs
- 1/30 hp at 1550/1300/1050 rpm delivers reliable fan and blower performance
- 115 V AC single-phase supply suits standard residential and light-commercial wiring
- Automatic thermal protection and Class B insulation guard against overheating during continuous duty
- Direct replacement for multiple Dayton and generic part numbers simplifies sourcing

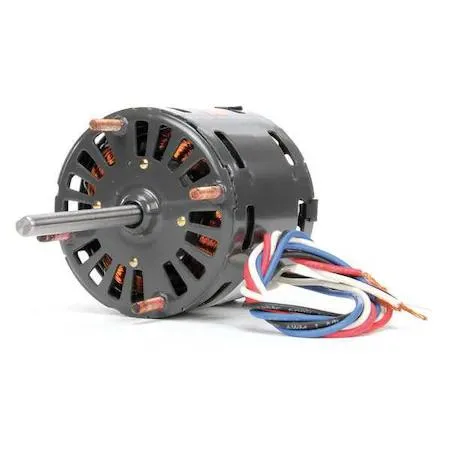

Dayton 4YU32 Shaded Pole Motor
The Dayton 4YU32 is a single-phase shaded pole motor rated at 1/30 hp with three-speed operation. It runs on 115V AC at 60 Hz and draws 1.3 A at full load. The motor offers nameplate speeds of 1550, 1300 and 1050 RPM for variable airflow control. It features a 3.3 frame size and continuous duty cycle.
Suited for direct replacements
This motor suits technicians replacing Dayton models 4HZ32G, 4HZ34G, 4YC64G, 5DVN8, 5DVN9 or 5DVR6 in fan and blower assemblies. The CCWSE shaft rotation matches the original equipment design. Buyers needing operation at 200V or 208V should look elsewhere because the motor is not usable at those voltages. Applications requiring a different rotation direction or higher horsepower will need another solution.
Verify voltage and shaft fit
Confirm the supply voltage is 115V AC single-phase at 60 Hz before ordering. Check that the driven equipment requires CCWSE rotation when viewed from the shaft end. Ensure the 3.3 frame dimensions align with the existing mounting pattern. The maximum ambient temperature rating is 40 degrees C, so verify the installation environment stays within this limit.
Highlights
- Three-speed shaded-pole motor covers low, medium and high airflow needs
- 1/30 hp at 1550/1300/1050 rpm delivers reliable fan and blower performance
- 115 V AC single-phase supply suits standard residential and light-commercial wiring
- Automatic thermal protection and Class B insulation guard against overheating during continuous duty
- Direct replacement for multiple Dayton and generic part numbers simplifies sourcing
Specifications
| Brand | DAYTON |
|---|---|
| Color | Transparent |
Questions about this item
What fan or blower assembly is this 3.3-frame shaded-pole motor intended to replace?
It replaces several Dayton models including 4HZ32G, 4HZ34G, 4YC64G, 5DVN8, 5DVN9 and 5DVR6, matching the 3.3 frame and 1/30 hp rating.
Will this 115V motor run on the 208V supply I have in my older building?
No, the specifications state it is not usable at 208V or 200V; it is rated for 115V AC only.
How can I confirm the motor is operating correctly after installation?
Verify it spins counter-clockwise from the shaft end, draws about 1.3 amps at full load, and runs continuously within the 40°C ambient limit.
