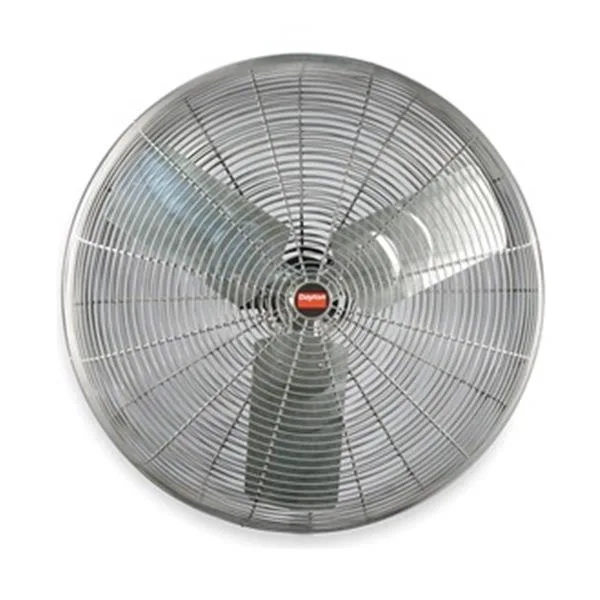

Industrial steel air circulator, 24 inch blade, non-oscillating head, grey finish

Dayton

Dayton 4VAC4 24" High Ambient Air Circulator 115V 6400 CFM

SKU CH-1SZ6-QM3JA

A 24-inch non-oscillating industrial air circulator delivering 6400 CFM at 115V AC with a 1/3 hp motor rated for 140°F ambient temperatures

  • styleNon-oscillating
  • typeHigh Ambient
  • Moves large air volumes with 6400 CFM output
  • Withstands harsh environments up to 140°F ambient temperature
  • Runs on standard 115V AC power at 3.6 amps
  • Direct-drive 1/3 hp motor delivers 1100 RPM reliability
  • Compact 27-inch diameter fits tight industrial spaces

Industrial Air Circulator for Hot Environments

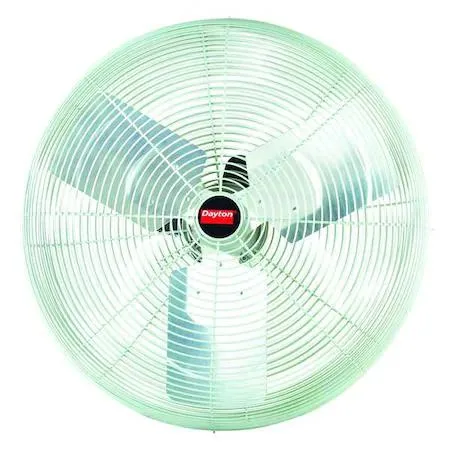

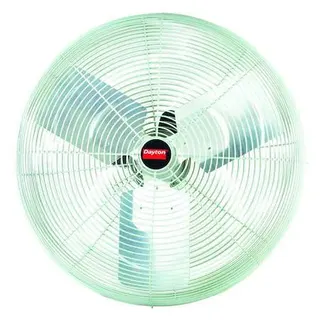

The Dayton 4VAC4 is a 24 inch high-ambient air circulator built for stationary mounting. It delivers 6400 CFM at 115V AC single-phase power with a 1/3 hp permanent split capacitor motor running at 1100 RPM. The steel construction withstands ambient temperatures up to 140 degrees F.

Suited for Fixed-Position Cooling in Heat

This non-oscillating unit suits factories, warehouses or workshops that need continuous airflow at a single point. It is not for buyers who want oscillation, multiple speed settings or a fan rated for standard room temperatures only.

Steel Build with Direct Drive

The direct-drive steel blade assembly eliminates belts and reduces maintenance in dirty or hot conditions. The fan head measures 27 inches in diameter and 13-3/4 inches deep, operating at 71 dBA sound level while drawing 3.6 amps and 400 watts.

Highlights

  • Moves large air volumes with 6400 CFM output
  • Withstands harsh environments up to 140°F ambient temperature
  • Runs on standard 115V AC power at 3.6 amps
  • Direct-drive 1/3 hp motor delivers 1100 RPM reliability
  • Compact 27-inch diameter fits tight industrial spaces

Specifications

BrandDayton
styleNon-oscillating
typeHigh Ambient

Questions about this item

What mounting hardware do I need to install the 24-inch fan head?

The unit is supplied as a fan head only, so you must provide a compatible mounting bracket or pole rated for the 27-inch diameter and 400-watt motor.

Will the 115V AC motor run on a standard household circuit?

Yes, it draws 3.6 amps at 115 volts on a 60 Hz single-phase supply, which is within the capacity of a typical 15-amp residential circuit.

How can I verify the airflow matches the 6400 CFM rating?

Measure the air velocity at 20 feet from the fan; it should read approximately 465 feet per minute when the motor runs at 1100 RPM.
