Dayton 4HU77 1 HP effluent pump cast iron body 240V

Dayton

Dayton 4HU77 1 HP Effluent Pump 240V 8.3A Cast Iron

SKU CH-S9AA-RJBPK MPN 4HU77

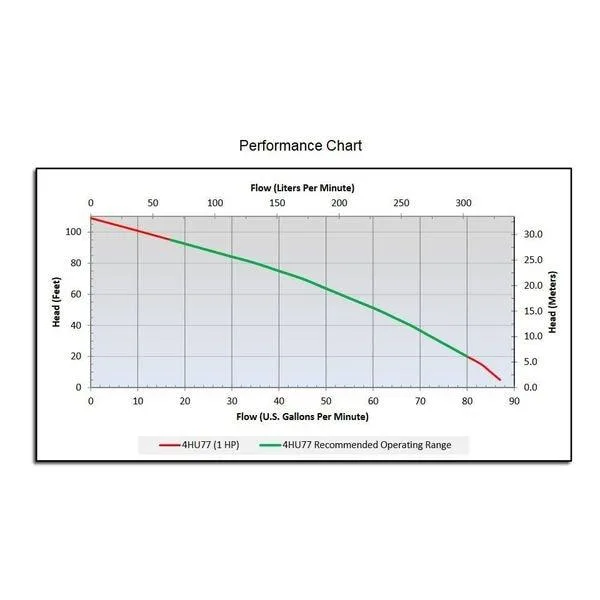

A 1 HP cast-iron effluent pump runs on 240 V AC at 8.3 A and delivers 85 gpm at 10 ft head, 83 gpm at 15 ft, 80 gpm at 20 ft, 68 gpm at 40 ft, 52 gpm at 60 ft and 34 gpm at 80 ft

  • TypeDrain Components
  • 1 HP motor delivers strong effluent flow
  • 240 V single-phase power suits residential installations
  • Cast iron body resists corrosion in wet environments
  • Silicon carbide seal faces extend pump life
  • 85 gpm at 10 ft head handles high-volume discharge

1 HP 240 V Effluent Pump

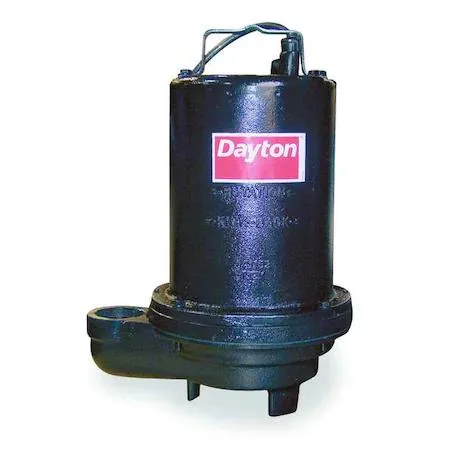

The Dayton 4HU77 is a single-phase effluent pump rated at 1 horsepower and 240 volts AC. It is built for residential or light-commercial wastewater systems that move screened effluent from a tank to a drain field or mound. The cast-iron body and nitrile-silicon carbide shaft seal suit continuous submerged operation.

8.3 A Motor Draw

The pump draws 8.3 amps at 60 Hz, which is the critical figure for sizing the branch circuit and selecting a compatible control panel. Verify that the electrical supply and any float-switch assembly match this amperage before installation.

Cast Iron Body With Polypropylene Impeller

The cast-iron housing resists corrosion in septic environments while the polypropylene impeller handles suspended solids typical of effluent. No switch is included, so a separate level control and discharge piping must be supplied to complete the system.

Highlights

  • 1 HP motor delivers strong effluent flow
  • 240 V single-phase power suits residential installations
  • Cast iron body resists corrosion in wet environments
  • Silicon carbide seal faces extend pump life
  • 85 gpm at 10 ft head handles high-volume discharge

Specifications

TypeDrain Components
BrandDayton
Model4HU77
