Dayton 3YU69 submersible sump pump, vertical float switch, polypropylene body

Dayton

Dayton 3YU69 1/4 HP Submersible Sump Pump 115V AC Vertical Float

SKU CH-T0T0-27WEJ MPN 3YU69

A 1/4 HP submersible sump pump with vertical float switch, 115 V AC motor and 16 gpm flow at 5 ft head

  • TypeDrain Components
  • 1/4 HP motor delivers reliable water removal
  • 16 gpm flow at 5 ft head handles moderate flooding
  • Vertical float switch automates on/off cycling
  • Polypropylene body resists corrosion in wet conditions
  • 115V AC power suits standard household outlets

What this pump does

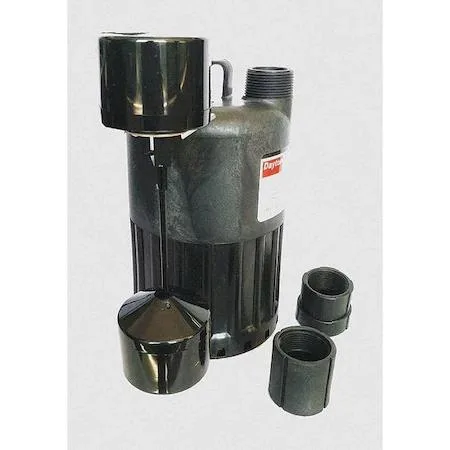

The Dayton 3YU69 is a 1/4 HP submersible sump pump that runs on 115V AC power at 60 Hz and draws 2.6 A. A vertical float switch with piggyback electrical connection turns the motor on at an 8 in water level and off at 3 1/2 in. It is built for residential basements or crawl spaces where automatic water removal is required.

Switch and flow performance

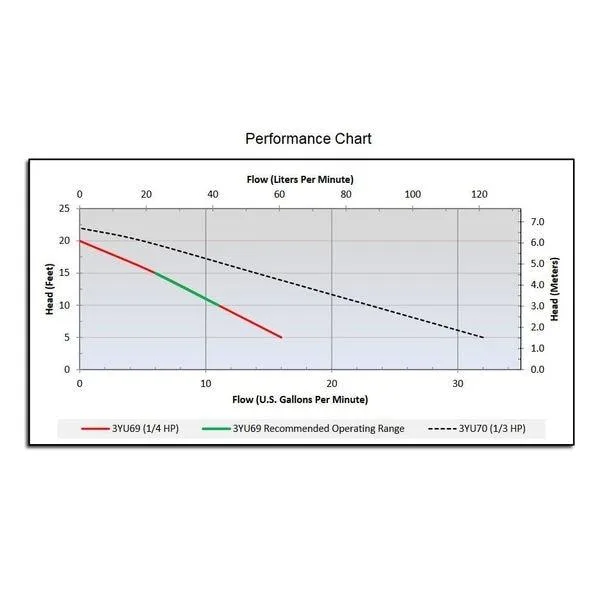

The piggyback plug lets the float switch control power without rewiring the outlet. Flow rates are 16 gpm at 5 ft of head, 11 gpm at 10 ft, and 6 gpm at 15 ft, with a maximum shut-off head of 20 ft. The polypropylene body, polyamide impeller and carbon-ceramic shaft seal handle clear water drainage duties.

Installation notes

The pump needs a sump pit at least 10 in diameter to accommodate the 8 3/4 in body and vertical float travel. A 1-1/4 in male discharge threads onto standard pipe or hose. No separate control box is required. Buyers who need higher flow at greater lift or a tethered float for wider pits should look elsewhere.

Highlights

  • 1/4 HP motor delivers reliable water removal
  • 16 gpm flow at 5 ft head handles moderate flooding
  • Vertical float switch automates on/off cycling
  • Polypropylene body resists corrosion in wet conditions
  • 115V AC power suits standard household outlets

Specifications

TypeDrain Components
BrandDayton
Model3YU69

Questions about this item

When will the carbon and ceramic shaft seal need replacement?

The carbon-ceramic shaft seal is a wear part; plan to inspect it annually and replace if leakage appears around the motor shaft.

What head height limits continuous flow?

Maximum head is 20 ft; at 15 ft head the pump still delivers 6 gpm, but flow stops beyond 20 ft.

How hot does the motor run during all-day operation?

The 1/4 HP motor draws 2.6 A at 115 V AC and is cooled by the surrounding water in the sump pit.
