Dayton submersible sump pump in black polypropylene housing with vertical float switch

Dayton

Dayton 3YU57 1/4 HP 1-1/4" Submersible Sump Pump 120V Vertical Float

SKU CH-PE2V-ES3Z8 MPN 3YU57

Submersible sump pump with 1/4 HP motor, vertical float switch and 21 ft maximum head

  • TypeDrain Components

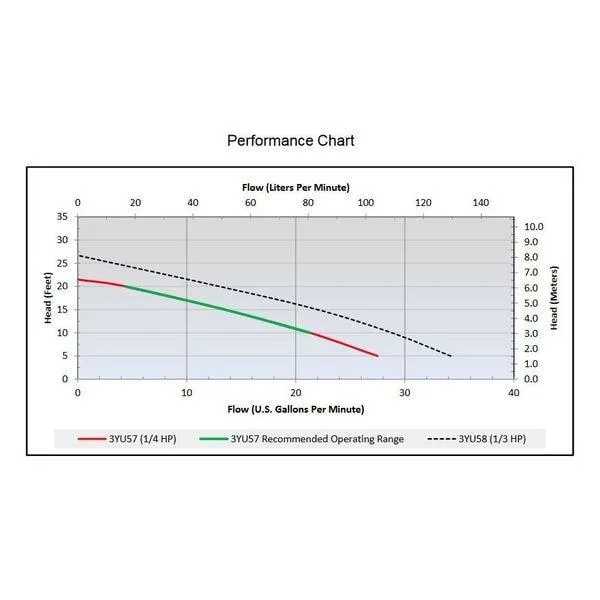

  • 1/4 HP motor delivers 27 gpm at 5 ft head
  • Vertical float switch activates at 4 29/32 in and shuts off at 1 49/64 in
  • Polypropylene body and polyamide impeller resist corrosion
  • Carbon and ceramic shaft seal extends pump life
  • 115 V AC operation draws 2.3 A for efficient drainage

1/4 HP Submersible Sump Pump

The Dayton 3YU57 is a 1/4 horsepower submersible sump pump designed for residential drainage. It operates on 115V AC at 60 Hz and draws 2.3 amps. The pump body is polypropylene with a polyamide impeller and a carbon ceramic shaft seal. A vertical float switch controls automatic operation.

Suitable for standard sump pits

This pump suits homeowners needing automatic water removal from pits at least 10 inches in diameter. The vertical float requires sufficient clearance to move freely without obstruction. Buyers with narrow pits or limited vertical space should look at alternative switch designs. The maximum head of 21 feet limits use in high-lift applications.

Simple drop-in installation

Lower the pump into the pit, connect the 1-1/4 inch discharge, and plug the integral cord into a grounded outlet. The float activates at 4 29/32 inches and shuts off at 1 49/64 inches. Debris can jam the float, so keep the pit clean and test the switch travel after installation.

Highlights

  • 1/4 HP motor delivers 27 gpm at 5 ft head
  • Vertical float switch activates at 4 29/32 in and shuts off at 1 49/64 in
  • Polypropylene body and polyamide impeller resist corrosion
  • Carbon and ceramic shaft seal extends pump life
  • 115 V AC operation draws 2.3 A for efficient drainage

Specifications

TypeDrain Components
BrandDayton
Model3YU57

Questions about this item

What size sump pit do I need for the 1/4 HP Dayton 3YU57 pump?

The minimum sump pit diameter is 10 inches for proper operation of the vertical float switch.

Will the 1-1/4 inch discharge on this pump connect to my existing 1-1/4 inch PVC piping?

Yes, the 1-1/4 inch discharge outlet matches standard 1-1/4 inch PVC pipe and fittings for direct connection.

How can I verify the pump activates at the correct water level after installation?

The vertical float switch turns the pump on at 4 29/32 inches and off at 1 49/64 inches; watch the water rise and fall to confirm these points.
