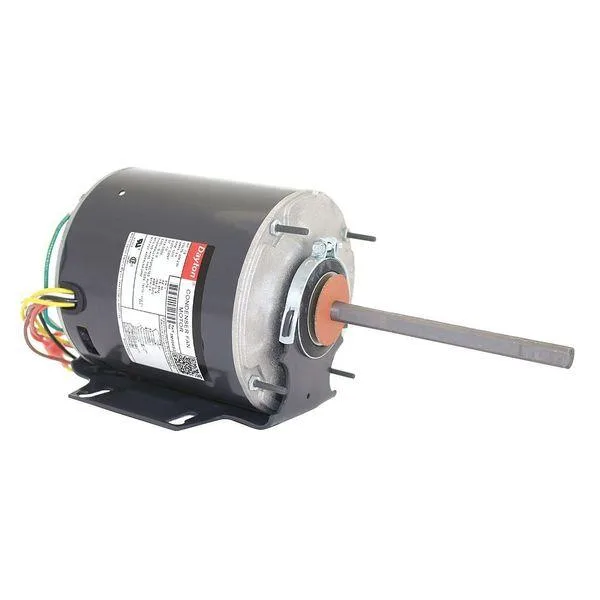

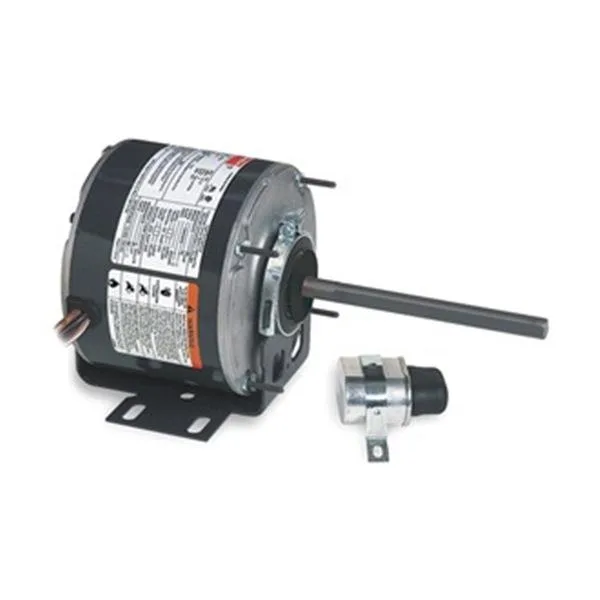

Dayton 3M994 condenser fan motor open air over frame 48YZ 6 inch shaft

Dayton

Dayton 3M994 condenser fan motor 1/2 hp high temperature

SKU CH-SK8D-RBYFK

A 1/2 hp high-temperature condenser fan motor rated 208-230 V AC, 3.1 A, 1,075 RPM with a 48YZ frame and 6 in shaft

  • typeHigh Temperature
  • 1/2 hp delivers reliable condenser cooling
  • 208-230 V AC matches standard HVAC power
  • 60 °C max ambient handles high-temp environments
  • 48YZ frame fits common cradle-base mounts
  • Auto thermal protection prevents overheating damage

Product identity

The Dayton 3M994 is a new condenser fan motor rated at 1/2 horsepower and designed for high-temperature environments. It suits HVAC technicians and facility managers who need a direct replacement for condenser units requiring a 48YZ frame and continuous duty operation.

Decisive specification

The motor runs on 208-230V AC single-phase power at 60 Hz with a permanent split capacitor design. Its 1,075 RPM nameplate speed and 3.1 A full-load current determine whether it matches the original equipment nameplate data.

Capacity and headroom

Continuous duty cycle and Class B insulation support operation up to a maximum ambient temperature of 60 °C. Auto thermal protection guards against overload, while the reversible CW/CCW rotation and cradle base mounting suit horizontal or vertical shaft-up installations.

Highlights

  • 1/2 hp delivers reliable condenser cooling
  • 208-230 V AC matches standard HVAC power
  • 60 °C max ambient handles high-temp environments
  • 48YZ frame fits common cradle-base mounts
  • Auto thermal protection prevents overheating damage

Specifications

BrandDayton
typeHigh Temperature

Questions about this item

What does the 1/2 hp rating mean for a condenser fan in a real HVAC unit?

The motor delivers half a horsepower at its nameplate speed of 1,075 RPM, providing enough torque to drive a standard condenser fan blade continuously in residential or light-commercial air-conditioning systems.

How does the 208-230 V single-phase supply affect the motor's 3.1 A full-load current in practice?

At 230 V the motor draws 3.1 A under full load; on a 208 V leg the current will be slightly higher, so the circuit and contactor must be sized for that maximum draw.

What does the 48YZ frame and 6 in shaft length require for mounting?

The cradle-base motor fits a 48YZ mounting pattern and needs a horizontal or vertical shaft-up orientation with a 6-inch shaft extension for the fan hub or pulley.
