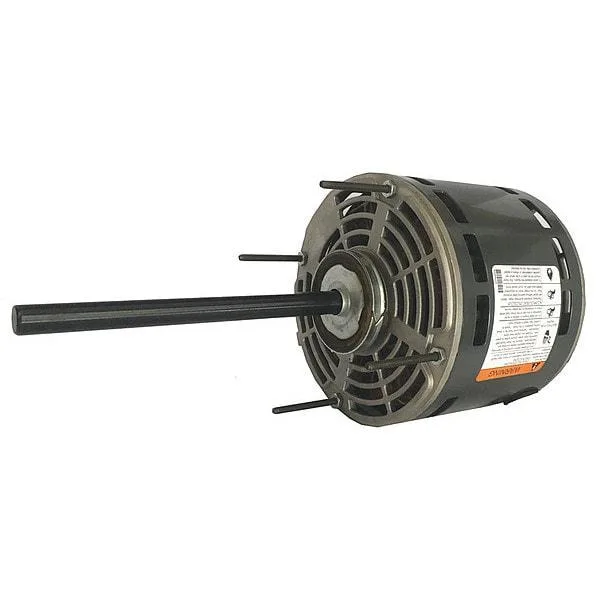

Dayton 3LU77 HVAC blower motor, open frame, resilient ring mount, half-inch shaft

Dayton

Dayton 3LU77 HVAC Control, 1/3 hp, 115V, 625 RPM

SKU CH-H8G9-DCNHV

Direct-drive blower motor delivers 1/3 hp at 625 RPM on 115 V single-phase power

  • Reliable HVAC airflow with 1/3 hp permanent split capacitor motor
  • Three-speed operation at 625 RPM nameplate for flexible air delivery
  • Auto thermal protection and Class B insulation for continuous duty cycles
  • Resilient ring and stud mounting enables all-angle installation
  • 115 V AC, 5.1 A full-load amps on 60 Hz single-phase power

Dayton 3LU77 Blower Motor, 1/3 hp

The Dayton 3LU77 is a direct-drive blower motor rated at one-third horsepower for single-phase 115 V AC supply. It runs at a nameplate speed of 625 RPM with three selectable speeds. The unit suits HVAC technicians and maintenance crews needing a replacement fan motor for continuous-duty air-handling equipment.

Three-speed operation and resilient-ring mounting

Three discrete speed taps let the installer match airflow to the system without an external controller. The resilient-ring and stud mounting isolates vibration from the housing, while the open air-over enclosure relies on the airstream for cooling. Automatic thermal protection and Class B insulation guard against overheating during continuous operation.

All-angle mounting simplifies replacement

The motor mounts in any orientation and the six-inch, half-inch-diameter shaft fits common blower wheels, so alignment is straightforward. Installers must verify the 48YZ frame dimensions and 5.1 A full-load current match the existing circuit. The 40 °C maximum ambient temperature limits use in unconditioned mechanical rooms.

Highlights

  • Reliable HVAC airflow with 1/3 hp permanent split capacitor motor
  • Three-speed operation at 625 RPM nameplate for flexible air delivery
  • Auto thermal protection and Class B insulation for continuous duty cycles
  • Resilient ring and stud mounting enables all-angle installation
  • 115 V AC, 5.1 A full-load amps on 60 Hz single-phase power

Specifications

BrandDAYTON

Questions about this item

Will the 48YZ frame motor need bearing lubrication or replacement over time?

The motor uses sealed bearings in the 48YZ frame and does not require lubrication; bearing replacement is only needed if noise or vibration develops after extended continuous duty.

Which limit appears first when the 1/3 hp motor runs continuously at 625 RPM?

Thermal protection activates if winding temperature exceeds the Class B insulation limit at 40 °C ambient, stopping the motor before mechanical overload occurs.

How much noise and heat does the open air-over enclosure produce during all-day operation?

The open air-over design relies on the driven airflow for cooling, so motor surface temperature stays near the 40 °C ambient rating and audible noise is limited to bearing and air-rush sound at 625 RPM.
