Cast iron submersible sewage pump, cylindrical body, dark grey finish

Dayton

Dayton 3BB95 2 HP 2" Sewage Pump 230V

SKU CH-T2YN-3G95Q MPN 3BB95

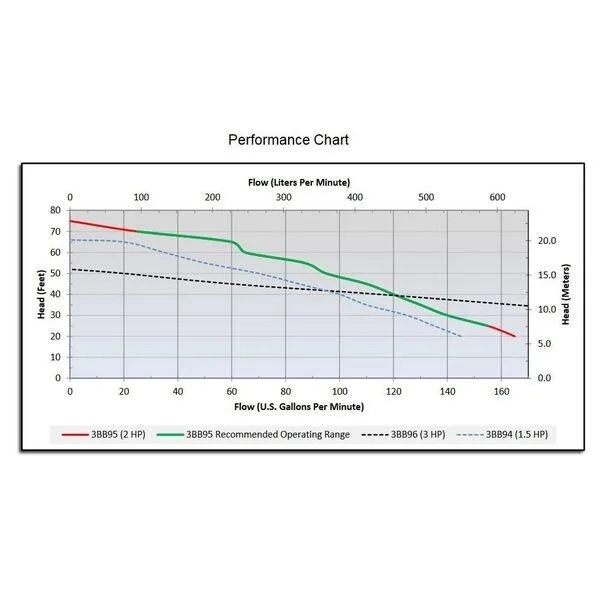

2 HP submersible sewage pump moves up to 165 gpm at 20 ft head with 2-inch solids handling

  • TypeDrain Components
  • 2 HP motor powers demanding sewage ejection
  • 230 V three-phase supply suits industrial installations
  • Cast iron body and impeller resist abrasive wear
  • Carbon ceramic shaft seal extends service life
  • 165 gpm at 20 ft head moves high volumes fast

2 HP Submersible Sewage Pump

The Dayton 3BB95 is a manual submersible sewage pump rated at 2 hp for 230 V single-phase supply. It handles solids up to 2 in diameter and is suited for residential or light commercial waste-water lift stations where automatic level control is provided separately.

Thermals, Noise and Power Draw

The motor draws 12.00 A at 240 V AC three-phase operation, so circuit sizing must accommodate that load. Submerged running keeps motor temperature low and operating noise minimal, while the cast-iron body dissipates heat directly into the pumped liquid.

Build Quality and Connections

The pump body and impeller are both cast iron with a carbon-ceramic shaft seal for abrasion resistance. A 2 in discharge outlet matches standard piping, and the 12 5/8 in body diameter fits common basin openings. No float switch or power cord is included, so the installer must supply and wire those components on site.

Highlights

  • 2 HP motor powers demanding sewage ejection
  • 230 V three-phase supply suits industrial installations
  • Cast iron body and impeller resist abrasive wear
  • Carbon ceramic shaft seal extends service life
  • 165 gpm at 20 ft head moves high volumes fast

Specifications

TypeDrain Components
BrandDayton
Model3BB95

Questions about this item

How is the 3BB95 installed and what step is often missed?

Lower the pump into the basin, connect the 2 inch discharge piping, and wire the 230 volt three-phase supply to a motor starter with overload protection — the step often missed is providing the starter since no switch is included.

What maintenance or replacement will the 3BB95 need later?

Inspect the carbon ceramic shaft seal periodically and replace it if leakage appears; the cast iron impeller and body resist wear but the seal is the primary service item.

What limit appears first during sustained operation of the 3BB95?

The motor draws 12 amps at 240 volts, so thermal overload in the starter will trip first if the pump runs continuously against high head or with restricted flow.
