Grey cast iron submersible pump with tether float switch

Dayton

Dayton 3BB69 1/2 HP Submersible Sump Pump 120V AC Tether Float

SKU CH-C2KN-AWFYA MPN 3BB69

A 1/2 HP submersible sump pump with a tether float switch delivers up to 65 gpm at 5 ft head and a maximum 30 ft head for residential water removal

  • TypeDrain Components
  • 1/2 HP motor delivers 65 gpm at 5 ft head
  • Tether float switch activates pump automatically at variable levels
  • Cast iron body and impeller resist corrosion for long service life
  • Carbon ceramic shaft seal reduces wear and prevents leaks
  • 120 V AC 60 Hz operation suits standard household power

1/2 HP Submersible Sump Pump

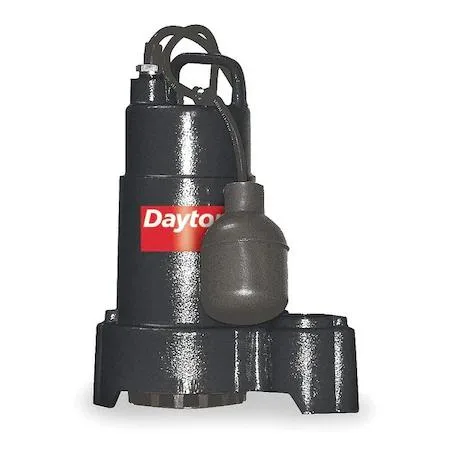

The Dayton 3BB69 is a 1/2 HP submersible sump pump rated for 120V AC at 60 Hz. It uses a tether float switch with piggyback electrical connection for automatic operation. Cast iron construction covers the body and impeller, while a carbon ceramic shaft seal protects the motor. The unit draws 6.8 amps during operation.

Suited for residential sump pits needing automatic

Homeowners with standard sump basins who want automatic level control will find this pump suitable. The tether float requires enough pit width to swing freely without snagging on walls or piping. Installations needing a fixed vertical float or electronic sensor should look at a different switch design. Buyers needing higher flow at greater lift heights will need a larger horsepower unit.

Flow rate at 10 ft head is 57 gpm

This single figure shows whether the pump can keep up with incoming water at typical discharge heights. At 10 ft of head the pump moves 57 gallons per minute, dropping to 45 gpm at 15 ft and 30 gpm at 20 ft. Maximum shut-off head reaches 30 ft. Match this curve against your basin inflow and vertical lift to confirm adequate capacity.

Highlights

  • 1/2 HP motor delivers 65 gpm at 5 ft head
  • Tether float switch activates pump automatically at variable levels
  • Cast iron body and impeller resist corrosion for long service life
  • Carbon ceramic shaft seal reduces wear and prevents leaks
  • 120 V AC 60 Hz operation suits standard household power

Specifications

TypeDrain Components
BrandDayton
Model3BB69

Questions about this item

How do I choose the right sump pump capacity for my basement?

This 1/2 HP model delivers 65 gpm at 5 ft head, 57 gpm at 10 ft, 45 gpm at 15 ft, and 30 gpm at 20 ft with a maximum head of 30 ft. Match these flow rates to your pit depth and typical water volume.

What does the 1/2 HP rating mean for actual water removal?

The 1/2 HP motor draws 6.8 A at 120V AC and produces the listed flow rates: 65 gpm at 5 ft head down to 30 gpm at 20 ft head, with a 30 ft maximum shut-off head.

How does the tether float switch control the pump?

The piggyback tether float provides variable on/off points, letting you set the water level range that starts and stops the pump automatically.
