Dayton 36VF63 Three-Phase Motor 1 HP 143/5TC Frame 230/460V
Three-phase general purpose motor delivering 1 HP at 1760 RPM in a 143/5TC frame with 230/460 V operation
- 1 HP three-phase power for industrial equipment
- Totally enclosed fan-cooled design resists dust and moisture
- Dual 230/460 V voltage suits multiple supply systems
- 143/5TC C-face frame simplifies direct coupling
- 5 % nominal efficiency reduces energy cost
Three-phase general-purpose motor
The Dayton 36VF63 is a three-phase general-purpose motor rated at 1 HP with a 143/5TC frame. It operates on 230/460V AC at 60 Hz and uses a C-face mounting configuration. The steel frame houses ball bearings and provides totally enclosed fan cooled enclosure design.
Dual-voltage 230/460V operation
This motor runs on either 230V or 460V three-phase supply, drawing 3.1 amps at the lower voltage and 1.5 amps at the higher voltage. The nameplate speed is 1760 RPM with a service factor of 1.15. Insulation class F and continuous duty rating support standard industrial applications.

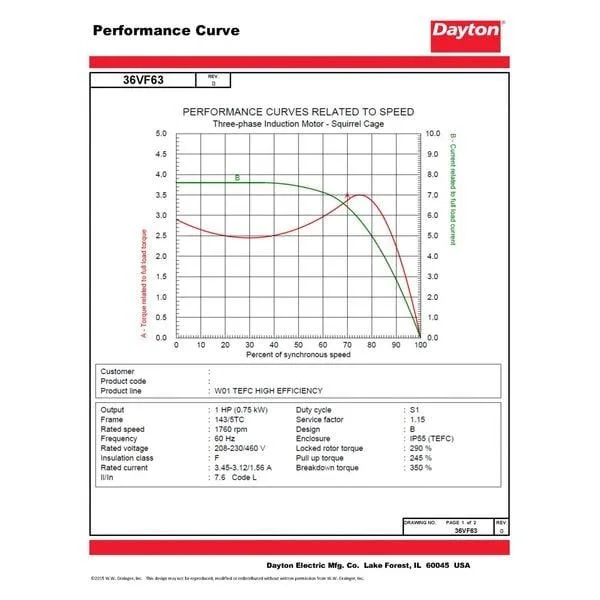

Sustained load performance
Under continuous duty the motor delivers a nominal efficiency of 85.5 percent with a maximum ambient temperature of 40 degrees Celsius. Thermal protection is not included, so external overload protection must be provided. The unit carries CE, CSA and UL markings for compliance.
Highlights
- 1 HP three-phase power for industrial equipment
- Totally enclosed fan-cooled design resists dust and moisture
- Dual 230/460 V voltage suits multiple supply systems
- 143/5TC C-face frame simplifies direct coupling
- 5 % nominal efficiency reduces energy cost
Specifications
| Brand | DAYTON |
|---|
Questions about this item
How does the 1760 RPM nameplate speed translate in a real installation?
The motor runs at 1760 RPM under full load on a 60 Hz supply, delivering 1 HP continuous output with a 1.15 service factor for short overloads.
What does the 230/460 V three-phase rating cap in practice?
It operates on standard 230 V or 460 V three-phase, 60 Hz power, drawing 3.1 A at 230 V or 1.5 A at 460 V at full load.

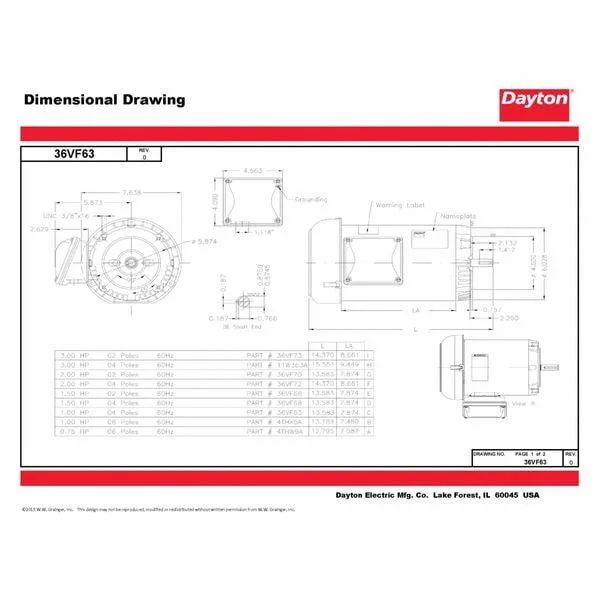

What does the 143/5TC frame require for mounting?
The C-face 143/5TC steel frame bolts directly to NEMA C-face mounts; the shaft rotates CW or CCW and fits standard 143/5TC couplings.
