Dayton

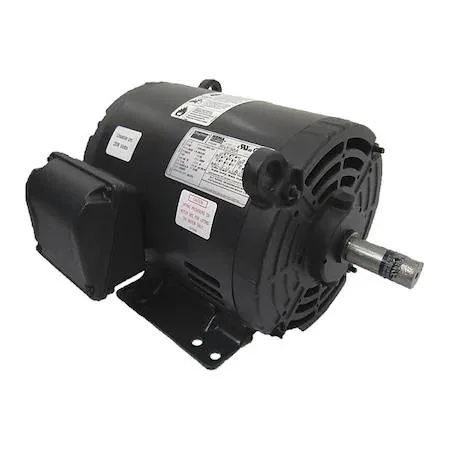

Dayton 36VE98 2 HP Three-Phase Motor 182/4 Frame 230/460V AC
Two-horsepower three-phase motor in 182/4 frame runs at 3520 RPM on 230/460 V AC, 85.5 % nominal efficiency, rigid base, open drip-proof enclosure
- 2 HP output for demanding industrial tasks
- 5 % nominal efficiency reduces energy costs
- Dual-voltage 230/460 V AC suits varied supplies
- Open drip-proof enclosure protects internals in dry areas
- Rigid base mount with conduit box eases installation
General-purpose three-phase motor
The Dayton 36VE98 is a 2 HP three-phase induction motor built for continuous duty in industrial machinery. It operates on 230/460V AC at 60 Hz and carries CE, CSA and UL certifications for code compliance.
Rigid-base mounting with conduit box

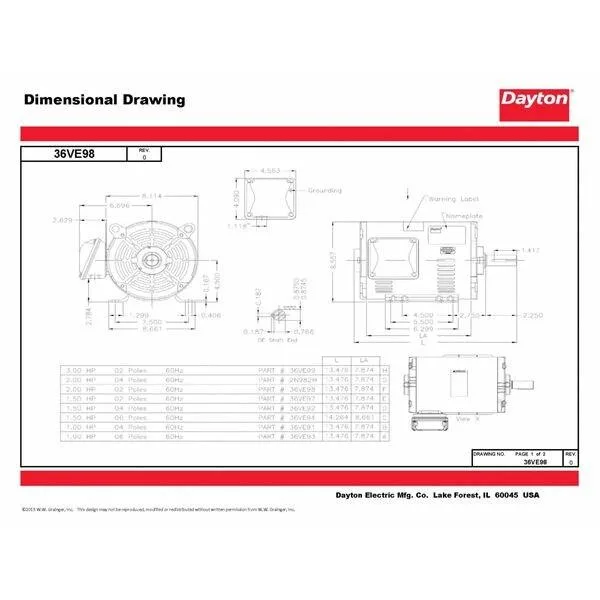

The steel frame uses a rigid base and an 182/4 footprint, so alignment follows standard NEMA dimensions. Installers should verify shaft rotation direction before coupling because the motor runs CW/CCW and ships without thermal protection.
Continuous duty at 3520 RPM

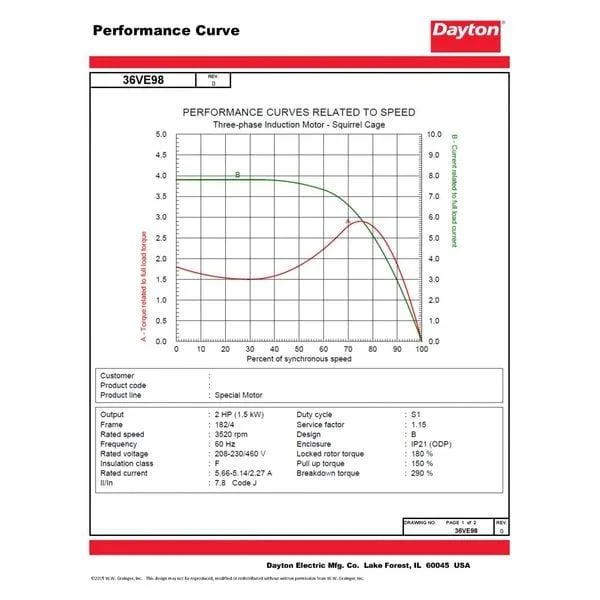

At full load the motor draws 5.1 A at 230 V or 2.2 A at 460 V and delivers a nominal efficiency of 85.5 percent. Service factor 1.15 provides a modest margin above nameplate rating while the Class F insulation handles ambient temperatures up to 40 degrees C.
Highlights
- 2 HP output for demanding industrial tasks
- 5 % nominal efficiency reduces energy costs
- Dual-voltage 230/460 V AC suits varied supplies
- Open drip-proof enclosure protects internals in dry areas
- Rigid base mount with conduit box eases installation
Specifications
| Brand | DAYTON |
|---|
Questions about this item
How can I confirm the motor is running at its rated speed after installation?
Measure the shaft speed with a tachometer; it should read approximately 3520 RPM under full load at 60 Hz.
What components are included with the motor and what must be sourced separately?
The motor includes a conduit box; power wiring, overload protection, mounting hardware and any driven-equipment coupling are not supplied.
Which voltage connection should I use for a 230 V three-phase supply?
Wire the motor for the low-voltage 230 V configuration; the nameplate shows full-load current of 5.1 A at that voltage.
