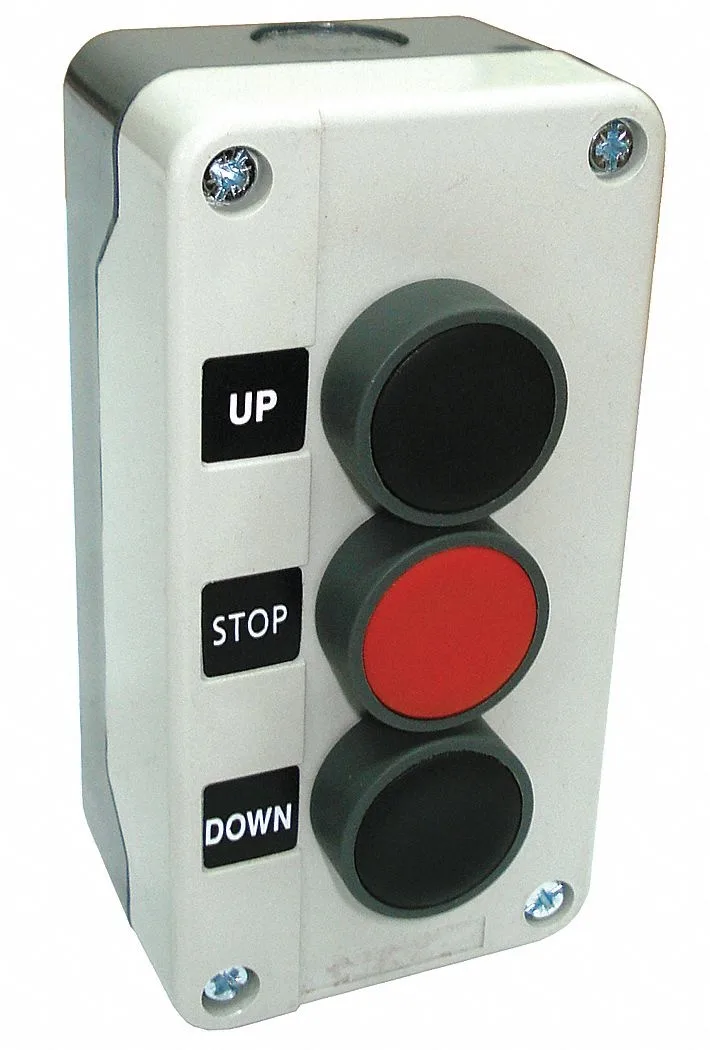

Rectangular thermoplastic wall-mounted control station with three 22mm momentary push buttons in black red black labeled Up Stop Down

Dayton

Dayton 32W273 Push Button Control Station 22mm

SKU CH-9DVK-VV2BN

A three-button control station with momentary up, stop and down operators in a 22 mm thermoplastic enclosure rated NEMA 4 and 4X

  • Engine BrandDAYTON
  • Engine Size22 mm
  • Three momentary push buttons for up/stop/down control
  • 22 mm mounting holes fit standard industrial panels
  • NEMA 4 and 4X thermoplastic enclosure resists dust and water
  • 10 A at 600 V AC and 2.5 A at 24 V DC contact rating
  • Wall-mount design measures 5.27 in wide by 1.98 in high by 2.69 in deep

Dayton 32W273 Push Button Control Station

The Dayton 32W273 is a 22 mm industrial control station with three momentary push buttons labelled Up, Stop and Down. It is built for wall mounting in machinery or process applications that need direct manual control of motor direction. The thermoplastic enclosure carries NEMA 4 and 4X ratings for indoor or outdoor wash-down environments. Contacts are rated at 10 A at 600 V AC and 2.5 A at 24 V DC.

Compatibility Check Before Ordering

Verify that the mounting surface can accept the 1.98 in height, 5.27 in width and 2.69 in depth of the enclosure. Ensure the control circuit voltage does not exceed 600 V AC or 24 V DC and that the load stays within the 10 A AC or 2.5 A DC contact ratings. The station provides 2NO and 1NC contact forms with no mechanical interlock, so confirm the wiring scheme matches your safety requirements. No pilot lights are included.

Build Integration

The three black and red operators give immediate tactile control without additional selector switches. A600 and Q600 contact designations simplify coordination with standard motor starters and contactors. Wall mounting frees panel space inside cabinets while the NEMA 4X rating removes the need for a separate weatherproof enclosure. The momentary action on all buttons returns each to its default position when released.

Highlights

  • Three momentary push buttons for up/stop/down control
  • 22 mm mounting holes fit standard industrial panels
  • NEMA 4 and 4X thermoplastic enclosure resists dust and water
  • 10 A at 600 V AC and 2.5 A at 24 V DC contact rating
  • Wall-mount design measures 5.27 in wide by 1.98 in high by 2.69 in deep

Specifications

Engine BrandDAYTON
Engine Size22 mm

Questions about this item

What does the 32W273 control station include and is anything else needed for installation?

The station ships as a complete three-button enclosure with Up, Stop and Down legends, 22 mm mounting holes and 2NO/1NC contacts rated 10 A at 600 V AC. No extra operators or contact blocks are required; only mounting hardware and wiring are supplied by the installer.

How do I choose between the available operator colours and contact configurations?

This model is fixed with black Up, red Stop and black Down momentary push buttons and a 2NO/1NC contact form. If a different colour scheme or contact arrangement is needed, a separate Dayton control station must be selected.

What does the 10 A 600 V AC rating mean when the station is wired into a motor starter circuit?

Each contact block can switch up to 10 amperes at 600 volts AC (A600/Q600 designation), so the station can directly pilot a motor starter coil or similar load within those limits without an intermediate relay.
